name: Insize
manufacturer:
MPN:
Description:

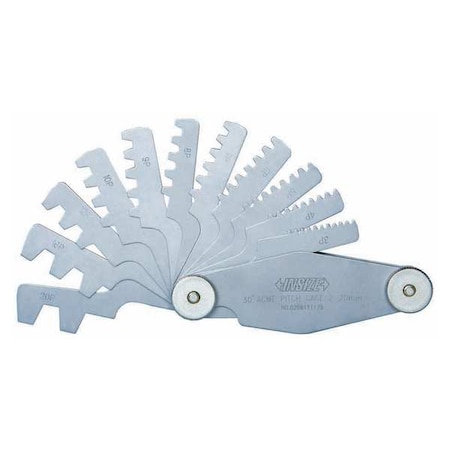

InSize 4824-16 Screw Pitch Gage is a handy tool that can help you to quickly check the pitch of ACME screws. It has a narrow design with flattened teeth that makes it easier to read and use. The leaves are made of steel, while the case is constructed from steel as well. This screw pitch gauge comes in a folding design, which makes it easy to carry around and store when not in use. It features 16 leaves, each with 1 to 12 TPI range for quick measurements on ACME screws. If you want a fast way to measure ACME screws' thread pitches, InSize 4824-16 Screw Pitch Gage is an ideal choice for you.
Attributes
| Key ^ | Value |
|---|---|
| Construction | Steel Case With Folding Leaves |
| Gauge Material | Steel |
| Included Threads per Inch | 1 TPI, 1 1/3 TPI, 1 1/2 TPI, 1 3/4 TPI, 2 TPI, 2 1/2 TPI, 3 TPI, 3 1/2 TPI, 4 TPI, 5 TPI, 6 TPI, 7 TPI, 8 TPI, 9 TPI, 10 TPI, 12 TPI |
| Item | Thread Pitch Gauge Set |
| Leaves | Narrow Design With Flattened Teeth |
| Maximum Thread Pitch - mm | 12 |
| Minimum Thread Pitch - mm | 1 |
| Number of Leaves | 16 |
| Range of Pitches per Inch, TPI Range | 1 to 12 TPI |
| Thread Angle | 29 Degrees |
| Thread Angle (Deg.) | 29 |
| Thread Type, Type | ACME |
