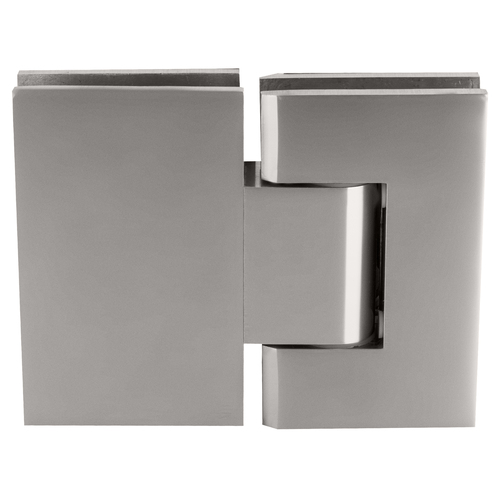

CRL ALUM-GEN380SC-VCP-1 Satin Chrome Geneva 380 Series Adjustable 180 Degree Glass-to-Glass Hinge

CRL-USALUM . ALUM-GEN380SC-VCP-1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCRL-USALUM
Attribute002 lb (907g)
Attribute013-1/2
Attribute022-3/16" (56 mm)
Attribute03, Attribute09Satin Chrome
Attribute04Glass To Glass
Attribute05Brass
Attribute065/16 To 1/2
Attribute07Square
Attribute08, Attribute11Yes
Attribute10, Attribute172-3/16
Attribute12No
Attribute1328
Attribute1432
Attribute15, Weight120
Attribute1680
Attribute18180
AttributeKey00Shipping Weight
AttributeKey01Height
AttributeKey02, width_AttribWidth
AttributeKey03Finish
AttributeKey04Mounting Type
AttributeKey05Material
AttributeKey06Glazing Thickness
AttributeKey07Edge Profile
AttributeKey08Adjustable
AttributeKey09Finish/Color
AttributeKey10Width - Sidelite Portion (Inches)
AttributeKey11Self-Centering
AttributeKey125 Degree Pre-Set
AttributeKey13Maximum Door Width - 2 Hinges (Inches)
AttributeKey14Maximum Door Width - 3 Hinges (Inches)
AttributeKey15, Weight_AttribMaximum Door Weight - 3 Hinges (Pounds)
AttributeKey16Maximum Door Weight - 2 Hinges (Pounds)
AttributeKey17Width - Door Portion (Inches)
AttributeKey18Glass To Glass Angle (Degrees)
CategoryIdL3180 Degree Glass-to-Glass Mount Hinges
CategoryL1Bathroom Hardware
CategoryL2Shower Door Hinges & Hinge Replacement Parts
DimensionUnitinch
Extra Product NameCRL ALUM-GEN380SC-VCP-1 Satin Chrome Geneva 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
WeightUnitlbs
atoms, moq, multiple, tierMinQty11
extendedQty, qtyInStock0
MPNALUM-GEN380SC-VCP-1
qtySourceupdateFromUrlEntry
snippet<br/> The <b>CRL Adjustable Geneva Series</b> has taken our popular Geneva Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 90 degree inward and 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only(using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb. <br/><b>Using two hinges</b> with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).<br/><b>Using three hinges</b> with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).<br/><b>SPECIFICATIONS:</b><br/><b>Glass Thickness:</b> 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass<br/><b>Special Features:</b> Adjustable to any angle up to 90 degree without having to take door down.<br/><b>Construction:</b> Solid Brass<br/><b>Hinge Swings:</b> 90 degree in and 90 degree out (at factory set position).<br/><b>Closing Type:</b> Self-Centering when within 15 degree of closed position.<br/><b>Cut-Out Required Includes:</b> Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.<br/><b>NOTE:</b> Door glass width may require alteration from standard clearance deductions when adjusting angles. .<br/> Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.<br/><b>Product Warning:</b><br/>CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.<br/> Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.<br/><p>.</p>
tierPrice1179.44
width2.1875

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareALUM-GEN380SC-VCP-1111 @ $179.44
