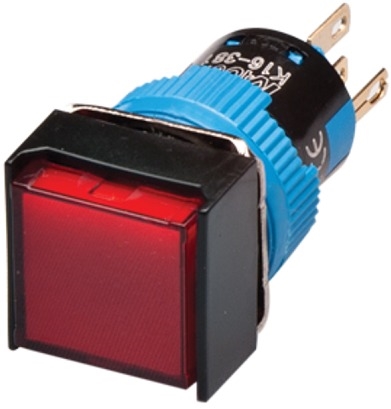

Kacon K16-282-R-12V 16 mm momentary push button has a square, red lens with a DPDT contact arrangement. Illuminated by 12VDC LED. Rated IP 65

Kacon . K16-282-R-24VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerKacon
Attribute00Momentary
Attribute01Square, Red
Attribute02DPDT (2C)
Attribute0324K Gold Plated Alloy
Attribute04250VAC
Attribute053A Max.
Attribute06250 VAC, 110 VDC
Attribute071A at 24VDC/120VAC, 0.5A at 250VAC
Attribute081mA 5VDC
Attribute09Max. 50 mOhm
Attribute10100 MOhm at 500VDC
Attribute112000 VAC for 1 min
Attribute1225-55Hz dual amplitude: 0.75mm
Attribute13Endurance: 500m/s
Attribute14Min. 1,000,000
Attribute15Min. 100,000
Attribute1645-85% RH
Attribute17IP 65
Attribute18UL & CUL Recognized, CE
AttributeKey00Push Button Type
AttributeKey01Lens Shape & Color
AttributeKey02Contact Arrangement
AttributeKey03Contact Material
AttributeKey04Rated Insulation Voltage
AttributeKey05Rated Operating Current
AttributeKey06Max On/Off Current
AttributeKey07Rated Load
AttributeKey08Max Applicable Load
AttributeKey09Contact Resistance
AttributeKey10Insulation Resistance
AttributeKey11Dielectric Strength
AttributeKey12Vibration Resistance
AttributeKey13Shock Resistance
AttributeKey14Mechanical Life
AttributeKey15Electrical Life
AttributeKey16Ambient Humidity
AttributeKey17Degree of Protection
AttributeKey18Approvals
Weight0.1
WeightUnitlbs
keywords16 mm momentary DPDT push button, 24V LED square red push button, kacon K16-282-R-24V
moq, multiple, tierMinQty11
MPN, SKUK16-282-R-24VDC
qtyInStock7
snippetKacon K16-282-R-12V 16 mm momentary push button has a square, red lens with a DPDT contact arrangement. Illuminated by 12VDC LED. Rated IP 65
tierPrice19.59

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Products For AutomationK16-282-R-24VDC1711 @ $9.59
GuardianAMER-K16-282-R-24VDC1-211 @ $10.85
Digi-Key1599839111311 @ $11.84
