CAT6PSHBLU-1000R

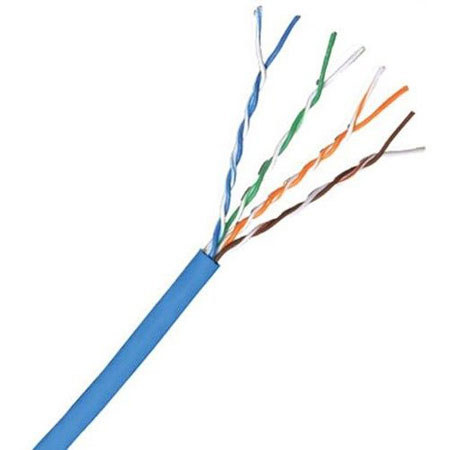

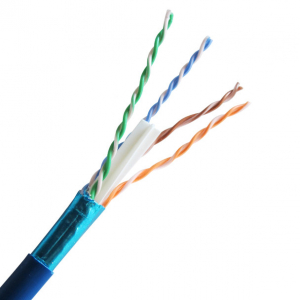

<p><b>Comprehensive CAT6PSHBLU-1000R Cat6 550MHz 1000ft Reel Shielded Plenum Solid Blue Bulk Cable, 4-Pair Easily Identified Color-Striped Pairs, 23AWG Solid Bare Copper Conductors</b></p> <p>Category 6 Shielded 550MHz Plenum cable. Supports all category 6 applications including Ethernet 100BASE -TX, 100BASE-VG and 155 ATM. Particularly suited for high bandwidth applications such as 622 ATM, Wideband, Ethernet 1000BASE-T and emerging applications with anticipated data rates to 3.2 Gbps. No. 23 AWG solid bare copper conductor insulated with FEP. Two colored mated insulated conductors twisted together to form a pair and four pairs assembled around a pair separator to form a core. The core is overall shielded and jacketed with a low smoke flame retardant PVC.</p> <b>Key Features</b><ul> <li>High-Performance Data Communications Cable for Noisy Environments</li> <li>Suitable for 550MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI</li> <li>Category-6 Shielded Twisted Pair (FTP) Plenum Cable</li> <li>4-Pair - Easily Identified Color-Striped Pairs</li> <li>23AWG Solid Bare Copper Conductors</li> <li>Excellent Attenuation and Crosstalk Characteristics</li> <li>Exceeds EIA/TIA 568 B.2-1, UL, CSA and ISO/IEC 11801 specifications</li> <li>CMP/FT6 rated for use in walls and in ceiling</li> <li>UL/cUL or ETL Listed</li> <li>Sequential foot markers</li></ul> <b>Specifications</b><ul> <li>Mutual Capacitance: 14 pF/ft</li> <li>Capacitance Unbalance: 330 pF/ft</li> <li>Velocity of Propagation: 72%</li> <li>Max. Conductor D.C.R.: 28.6 ohm/1000 feet</li> <li>Max. DCR Unbalance: 5%</li> <li>Max. Delay Skew: 45.0 ns/100m</li> <li>Characteristic Impedance: from 0.772 - 100MHz 100 ±15%, from 101 - 250MHz 100 ± 22%</li> <li>Temperature Rating: Installation -0°C to 50°C, Operation -2°C to 60°C</li> <li>Nominal Diameter: 0.305"</li> <li>Prop 65 Compliant: Yes</li> <li>Weight: 49 lb</li></ul>

<p><b>Comprehensive CAT6PSHBLU-1000R Cat6 550MHz 1000ft Reel Shielded Plenum Solid Blue Bulk Cable, 4-Pair Easily Identified Color-Striped Pairs, 23AWG Solid Bare Copper Conductors</b></p> <p>Category 6 Shielded 550MHz Plenum cable. Supports all category 6 applications including Ethernet 100BASE -TX, 100BASE-VG and 155 ATM. Particularly suited for high bandwidth applications such as 622 ATM, Wideband, Ethernet 1000BASE-T and emerging applications with anticipated data rates to 3.2 Gbps. No. 23 AWG solid bare copper conductor insulated with FEP. Two colored mated insulated conductors twisted together to form a pair and four pairs assembled around a pair separator to form a core. The core is overall shielded and jacketed with a low smoke flame retardant PVC.</p> <b>Key Features</b><ul> <li>High-Performance Data Communications Cable for Noisy Environments</li> <li>Suitable for 550MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI</li> <li>Category-6 Shielded Twisted Pair (FTP) Plenum Cable</li> <li>4-Pair - Easily Identified Color-Striped Pairs</li> <li>23AWG Solid Bare Copper Conductors</li> <li>Excellent Attenuation and Crosstalk Characteristics</li> <li>Exceeds EIA/TIA 568 B.2-1, UL, CSA and ISO/IEC 11801 specifications</li> <li>CMP/FT6 rated for use in walls and in ceiling</li> <li>UL/cUL or ETL Listed</li> <li>Sequential foot markers</li></ul> <b>Specifications</b><ul> <li>Mutual Capacitance: 14 pF/ft</li> <li>Capacitance Unbalance: 330 pF/ft</li> <li>Velocity of Propagation: 72%</li> <li>Max. Conductor D.C.R.: 28.6 ohm/1000 feet</li> <li>Max. DCR Unbalance: 5%</li> <li>Max. Delay Skew: 45.0 ns/100m</li> <li>Characteristic Impedance: from 0.772 - 100MHz 100 ±15%, from 101 - 250MHz 100 ± 22%</li> <li>Temperature Rating: Installation -0°C to 50°C, Operation -2°C to 60°C</li> <li>Nominal Diameter: 0.305"</li> <li>Prop 65 Compliant: Yes</li> <li>Weight: 49 lb</li></ul>
