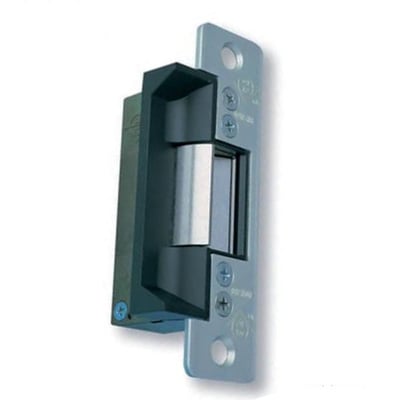

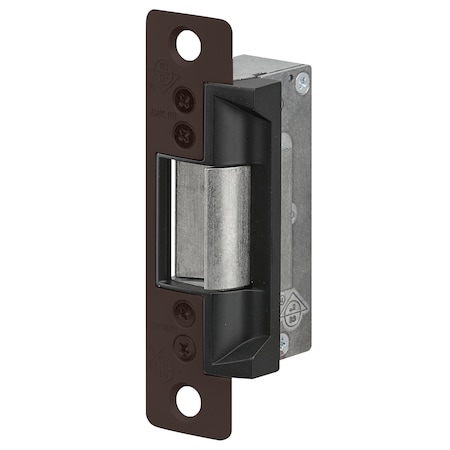

Adams Rite 7101-540-313-00 7101 Electric Strike For Radius Aluminum Stiles

Adams Rite . 7101-540-313-00

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerAdams Rite
Attribute000.74 Amps
Attribute01, colorDark Bronze Anodized Aluminum
Attribute024-7/8 In. X 1-1/4 In.
Attribute03Fail Secure
Attribute0424VAC
Attribute05, atoms, moq, multiple, tierMinQty11
Attribute06313
Attribute07None
Attribute08Radius
Attribute09, Attribute10Dark Bronze Anodized
Attribute11, Attribute30Electric Strike
Attribute12, Voltage24 VDC
Attribute13Adams Rite Deadlatches or Cylindrical Locksets with 1/2" to 5/8" Latchbolt Projection
Attribute14For Radius Aluminum Stiles
Attribute155 Year
Attribute165/8" x 1-7/16" x 1/2"
Attribute171/2 Inch
Attribute181500 (Static); 70 (Dynamic) lb; ft-lb
Attribute190.17A at 24VDC; 0.74A at 24VAC
Attribute20, Attribute22No
Attribute211/2 to 5/8 Inch
Attribute23Dark Bronze
Attribute24Mounting Screws; Mounting Clips; Adhesive Shims
Attribute25Stainless steel
Attribute26Intermittent
Attribute27ANSI/BHMA A156.23 Grade 1; UL 1034 Burglary-Resistant Listed; UL 294 (6th Edition) Listed
Attribute281-1/4" x 4-7/8"
Attribute291" x 3-3/8" x 1-5/8"
Attribute311-3/4 Inch
Attribute32Remote Electrical Control of Any Door Equipped With An Adams Rite 4500, 4700 or 4900 Deadlatch or Cylindrical Lockset With 1/2" to 5/8" Latchbolt Projection
Attribute331-1/16 Inch
Attribute34Assa Abloy
Attribute35EAC_Electric_Strike_adams_rite_10
AttributeKey00Amp Draw
AttributeKey01Color
AttributeKey02Faceplate Size
AttributeKey03Function
AttributeKey04Operating Voltage
AttributeKey05Package Qty
AttributeKey06Color Code
AttributeKey07Switch Type
AttributeKey08Faceplate Shape
AttributeKey09Finish
AttributeKey10Finish Description
AttributeKey11Product Type
AttributeKey12Voltage
AttributeKey13For Use With
AttributeKey14Application
AttributeKey15Warranty
AttributeKey16Strike Opening
AttributeKey17Bolt Throw
AttributeKey18Strength
AttributeKey19Current Draw
AttributeKey20Fire Rated
AttributeKey21Latch Throw
AttributeKey22ADA Compliant
AttributeKey23Finish Family
AttributeKey24Included Components
AttributeKey25Product Material
AttributeKey26Duty
AttributeKey27Standards
AttributeKey28Faceplate Dimension
AttributeKey29Case Dimensions
AttributeKey30Function Family
AttributeKey31Strike Lip
AttributeKey32Features
AttributeKey33Lip Extension
AttributeKey34Manufacturer Parent
AttributeKey35Sub-Series
CategoryIdL3Electric Strikes, Bolts, Magnets
CategoryL1Windows and Door Hardware
CategoryL2Door and Window Security Hardware
Extra Product NameAdams Rite 7101-540-313-00 7101 Electric Strike For Radius Aluminum Stiles
MPN, SKU7101-540-313-00
qtyInStock-2
qtySourceFieldMap
snippet7100 SeriesElectric Strikes for Adams Rite Deadlatches and Cylindrical Locks<p>Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. For use in aluminum, hollow metal, or wood applications. Function - Remote electrical control of any door equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.</p>Certifications<ul><li>UL 1034 burglary-resistant listed</li></ul><ul><li>UL 294 (6th Edition) listed</li></ul>Features Case:<ul><li>1" x 3-3/8" x 1-5/8" deep</li><li>[25.4 mm x 85.7 mm x 41.3 mm deep]</li></ul> Strike Opening:<ul><li>5/8" x 1-7/16" x 1/2" deep</li><li>[15.9 mm x 36.5 mm x 12.7 mm deep]</li><li>Bolt retaining keeper is stainless steel.</li><li>Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.</li></ul> Strike Lip:<ul><li>Basic strike has lip of proper length for 1-3/4" [44.5 mm] thick door that closes flush with jamb edge.</li><li>Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number.</li><li>Lip extension kits not available on 7101 or 7131.</li></ul> Latchbolt Projection:<ul><li>1/2" to 5/8"</li><li>[12.7 mm to 15.9 mm]</li></ul> Faceplate:<ul><li>Available in a variety of architectural finishes.</li></ul> Standard Package:<ul><li>Individually boxed with mounting screws, mounting clips, adhesive shims to accommodate jamb or stile extrusion thickness greater or less than nominal 1/8" [3.2 mm].</li><li>7140 Includes mounting clips and adhesive shims for use where welded tabs are omitted.</li></ul> Shipping Weight:<ul><li>2 lbs</li><li>[0.91 kg]</li></ul>Electrical Voltage:<ul><li>Available in 12, 16, or 24 Volt AC and DC. DC continuous units are silent, AC intermittent units ?buzz? on operation.</li></ul> Current Draw:<ul><li>0.33A at 12 VDC</li><li>1.42A at 12 VAC</li><li>0.22A at 16 VDC</li><li>0.63A at 16 VAC</li><li>0.17A at 24 VDC</li><li>0.74A at 24 VAC</li></ul> Fail Safe | Fail Secure:<ul><li>Field selectable at time of installation. However, AC intermittent solenoid must not be used continuously in either.</li></ul>Options<ul><li>Available with two Form 'C' monitoring switches to indicate when the latchbolt is engaged in the strike and whether the strike jaw is blocked.</li><li>Not available on 7130/7131, 7140.</li></ul><ul><li>Lip extension kits for various dimensions of door centerline to jamb edge; for flat faceplates only.</li><li>Not available on 7101 or 7131.</li></ul> Modular Packaging:<ul><li>Match one strike body kit with one faceplate kit to make a complete electric strike.</li><li>Faceplate kits contain all hardware to mount electric strike.</li><li>Please contact factory or sales representative for details.</li></ul>
tierPrice1171.07

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK Hardware7101-540-313-001-211 @ $171.07
alldataresource.comCS2479891-211 @ $123.92
thebuilderssupply.comADR_71015403130011677777811 @ $116.64
ZoroG3218517111 @ $139.03
