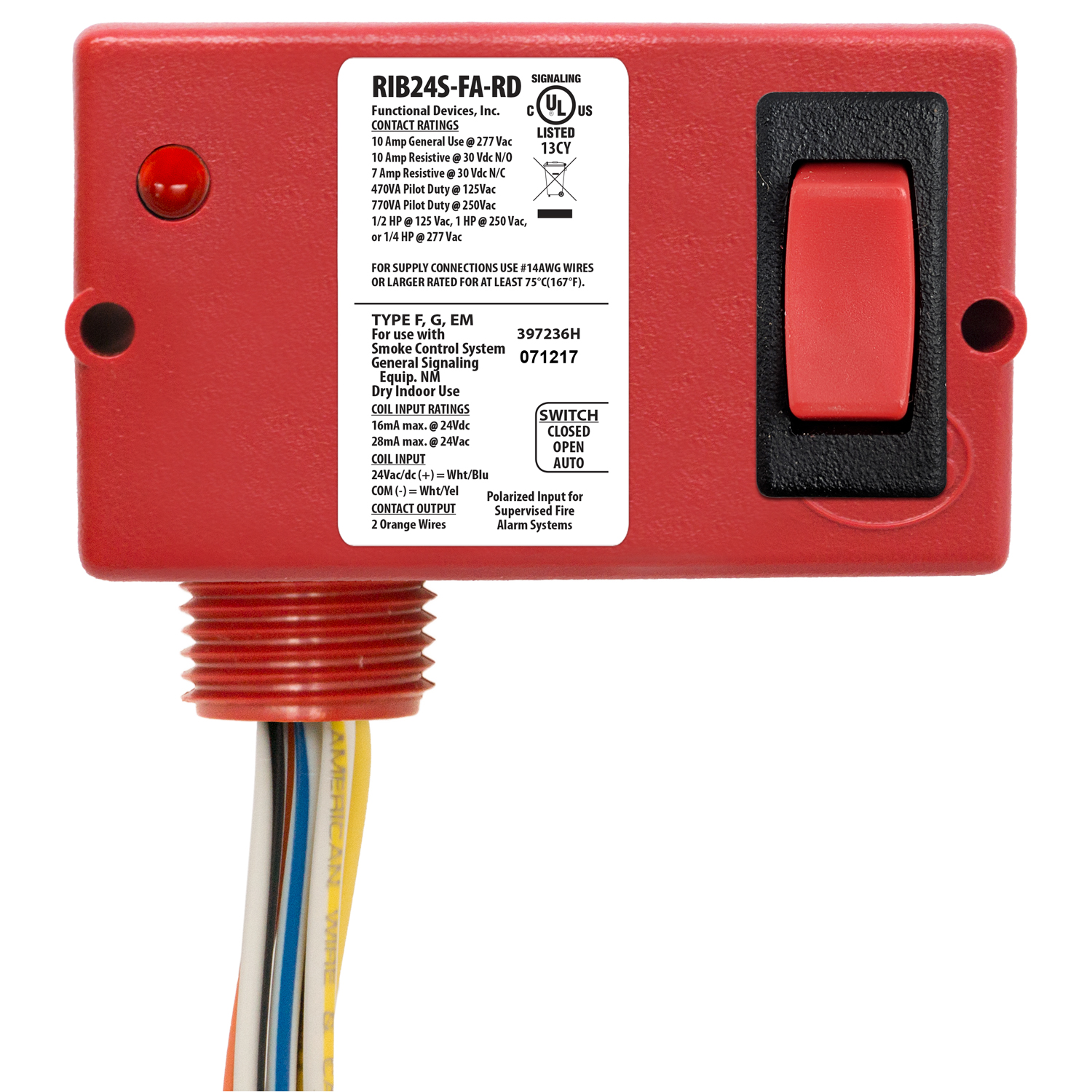

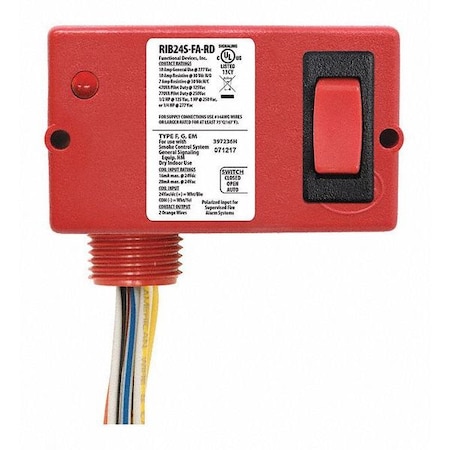

RIB Enclosed Polarized Relay RIB24S-FA-RD, 10A, SPST, 24VACVDC, Override Switch, Red Housing The Polarized RIB series is equivalent to the standard RIB series except for the coil which is polarized. We are currently offering nine polarized relays, most of which have a similar non-polarized counterpart. The FA in the model name stands for Fire Alarm. These relays are designed for operation in systems that require supervision from controllers and utilize end-of-line resistors. The relay can also be operated from A/C voltage (non-polarized) if desired. Product Details Operating Temperature -30° To 140°F Humidity Range 5 To 95 Percent (Noncondensing) Voltage 24VAC/DC v Expected Relay Life 10 Million Cycles Minimum Mechanical Description Enclosed Polarized Relay Number of Relays 1 Amperage 10 A Includes Override Switch, Red Housing Wire Rating 600V Warranty 1 yr Contact Type SPDT Weights & Dimensions Width 2.8 in Length 1.7 in Height 1.5 in Wire Size 16 in Compliance & Certifications Certifications UL Listed

Polarized Relay 10 Amp SPST-N/O + Override, 24 Vac/dc Coil, Red Housing
