Magnum Energy MMP Series MMP175-60S Mini Magnum Panel w/ 175A (Fits 48VDC Models) DC Breaker & 60A Single Pole AC Input Breaker

This is an add on section (also see start sections) for three panels to be used with a post driven ground mount from Patriot Solar Group for three 60 or 72 Cell solar panels. These racks feature adjustable tilt, and a low parts count for easy installation. Additional features and information can be found in the PDF linked below. Specs and Features Works with 60 or 72 Cell Solar Panels Dipped Galvanized 10-40 Degree Angle Adjustment (Can be customized for additional adjustment) Adjustable end clamps accommodate 30-50mm module frame thicknesses Multiple post options: I-Beam or C Channel, Helical or Earth Screw, Hybrid Ballast with Post Driven Concrete Foundation 3X Add-On Section Includes: 1 Post 1 Truss 2 Rails 2 Bolts - Truss to Post 2 Bolts - Rail to Truss

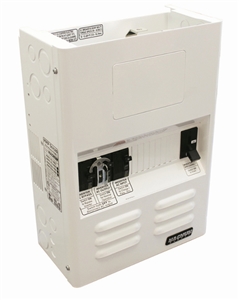

Magnum Energy MMP175-60S Mini Magnum Panel The MMP – Mini Magnum Panel is an inclusive, easy-to-install panel designed to work with one Magnum MS-AE, MS, RD or other non-Magnum inverter/charger. The MMP features a small footprint and comes prewired for fast installation. Circuit breakers and the optional remote control mount on the front of the cabinet. Dimensions are 12.5" wide x 18" tall x 8" deep. They are ETL listed to UL 1741 and CSA C22.2 107-01. Each MMP includes One DC breaker – 175A or 250A, One AC bypass breaker – 30A dual pole or 60A single pole, One AC input breaker – 30A dual pole or 60A single pole, a 500A/50mv shunt, DIN rail provided for up to eight DC mini breakers. Panels are available for inverters with 120 VAC output and 120/240 VAC output.system. Magnum model DC Main Breaker AC Output Breaker Use with Item code MMP250-30D 250 30A @120/240VAC MS4024-AE 030-02380 MMP250-60S 250 60A @ 120VAC MS4024, MS2812, MS2012, RD3924, RD2212 and all ME models 030-02381 MMP175-30D 175 30A @120/240VAC MS4448-AE 030-02382 MMP175-60S 175 60A @ 120VAC RD2824, RD1824 030-02383

Magnum Mini Magnum, Panel with 175ADC breaker & 60A single pole AC input breaker, 120VAC, MMP175-60S The MMP (Mini Magnum Panel) has been specifically designed to combine all of the major components required for a renewable energy system — inverter/battery disconnect, AC overcurrent protection, grounding connections, and a full system inverter bypass switch as a convenient way to isolate the inverter for battery maintenance — into a single, easy to install pre-wired enclosure. Designed for single inverter applications, the MMP enclosure features convenient front panel operation, and with the optional front panel remote, allows you to easily set up, monitor, and operate your Magnum inverter system. In addition to saving time and money by providing a simple and convenient inverter installation, the MMP enclosure ensures safety and reliability by providing a UL and CSA certified and code compliant system.
