Order FLST-R18X108 by Dwyer Duct Mounted Airflow Measurement Station - US Mega Store

Dwyer . FLST-R18X108

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDwyer
Attribute00, Attribute07Within 2% of actual flow when installed in accordance with published recommendations.
Attribute01, Attribute080.97.
Attribute02, Attribute09100 to 10,000 fpm (0.51-51 m/s).
Attribute03, Attribute10Elements: 6063-T5 anodized aluminum; Casings: 16 ga G90 galvanized steel.
Attribute04, Attribute11Galvanized Casings and Aluminum Elements: 350°F (177°C) continuous operation (in air) 400°F (204°C) intermittent operation (in air).
Attribute05, Attribute12All Airflow Stations 0 to 100% non-condensing.
Attribute06, Attribute131/4" compression fittings.
AttributeKey00, AttributeKey07Accuracy
AttributeKey01, AttributeKey08K-Factor
AttributeKey02, AttributeKey09Velocity Range
AttributeKey03, AttributeKey10Wetted Materials
AttributeKey04, AttributeKey11Temperature Limits
AttributeKey05, AttributeKey12Humidity
AttributeKey06, AttributeKey13Process Connections
CategoryL1Test Equipment
CategoryL2Meters
CategoryL3Flow Meters
CategoryL4Air
ConditionNEW
Extra Product NameOrder FLST-R18X108 by Dwyer Duct Mounted Airflow Measurement Station - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUFLST-R18X108
qtyInStockContact Us

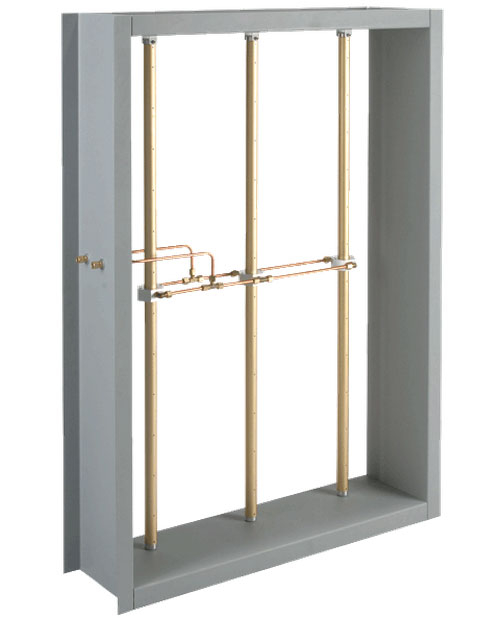

snippet<p><strong>FLST-R18X108 Series FLST Duct Mounted Airflow Measurement Station, Flow Station Size (Diameter or Height X Width) - 18" X 108" </strong> </p> <p>Rectangular Configurations </p> <p><strong>Options </strong> </p> <ul><li>IM - Internal Pressure Connections. </li> </ul> <p><strong>The Series FLST Airflow Measurement Station </strong> is easy to install - simply connect the tubing to the station fittings, then to a differential pressure manometer, gage, transmitter or switch. Single or multiple airflow elements are factory mounted and pre-piped in a casing designed for flanged connection to the duct work. Standard materials consist of a G90 galvanized casing and 6063-T5 anodized aluminum flow sensors, suitable for most HVAC applications. </p> <p>The Series FLST utilizes an airflow averaging element in a head-type device, generating a differential (velocity) pressure signal similar to the orifice, venturi, and other had producing primary elements. Strategically located sensing ports continually sample the total and static pressures when inserted normal to flow. </p> <p>Total pressure sensed by the upstream ports are continually averaged within the airflow element in an isolated chamber. The static sensing ports are averaged in a second isolation chamber. Multiple elements are joined together for connection to a differential measurement device (gage, transmitter, etc.) for flow measurement and indication purposes. </p> <p><strong>Features </strong> </p> <ul><li>Low signal-to-noise ratio. </li> <li> Multiple total and static pressure sensing ports along the length of the element. </li> <li> Factory mounted and pre-piped in a flanged duct section (casing). </li> <li> &#177;2% accuracy throughout velocity ranges of 100 fpm and over. </li> <li> Standard construction includes galvanized casing and 6063-T5 anodized aluminum flow sensors. </li> <li> Standard airflow stations can be operated (in air) continuously in temperatures up to 350&#176;F or intermittently in temperatures up to 400&#176;F. </li> <li> All airflow stations can be operated in humidity ranges of 0 to 100%. </li> <li> Standard airflow stations have good salt air resistance and are suitable for most HVAC applications. </li> </ul> <p><strong>Applications </strong> </p> <ul><li>Sensing fan, blower, and air handler output. </li> <li> Determine duct flow rates in various zones in builiding. </li> </ul>
tierPrice11203
