184THTY7726-Marathon Electric-AC
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Galco | 184THTY7726-MARA | 1 | 1 | 1 @ $1456.04 | |
| AJ2MET | 1 | 1 | 1 @ $2426.28 | ||
| mecampbell.com | 184THTY7726 | 1 | 1 | ||
| 184THTY7726 | 1 | 12 | 1 | 1 @ $1696.56 | |
 Zoro | G2030500 | 1 | 11 | 1 | 1 @ $1455.99 |
| sustainablesupply.com | C2791852 | 1 | Add to Cart | 1 | 1 @ $1967.48 |
| 184THTY7726 | 1 | -2 | 1 | 1 @ $2540.17 | |
| Y543A | 1 | 1 | 1 @ $1627.34 | ||
 simsupply.com | ZO-G2030500 | 1 | 14 | 1 | 1 @ $2015.07 |
| Y543A | 1 | -2 | 1 | 1 @ $1780.06 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Marathon Electric/Regal Beloit - 184THTY7726-5 HP Vector Motor, 3-Phase, 1760 Nameplate RPM, 230/460 Voltage, Frame 184TC
Brand: Marathon Electric
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRIC_MOTOR |
| Part number | 184THTY7726 |
| Label | Marathon Electric / Regal Beloit |
| Manufacturer | Marathon Electric / Regal Beloit |
Catalog
| Feature | Technical Specification Item Vector Motor Motor Application Variable Speed Motor Design 3-Phase |
|---|---|
| Category | Tools & Home Improvement |
| MPN | 184THTY7726 |
| Product group | BISS |
| Product type | ELECTRONIC_COMPONENT |
| Manufacturer | Marathon Electric / Regal Beloit |

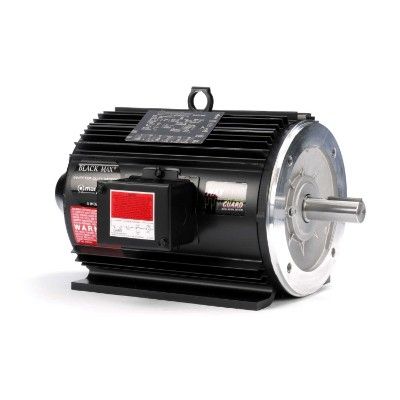

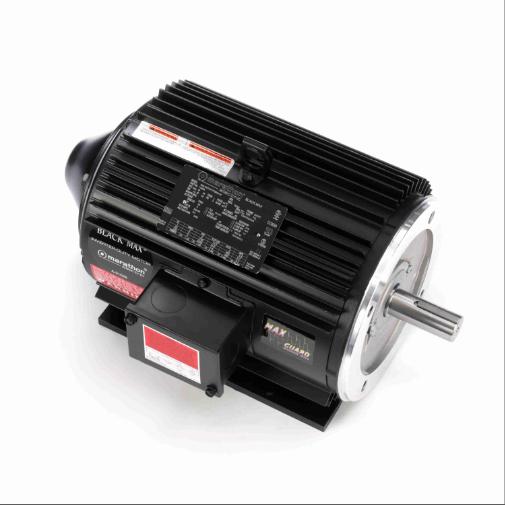

Vector Motor, 5 HP, 14.9 ft.-lb., Ball
Brand: Marathon
'Vector Motor, 3-Phase, Totally Enclosed Nonventilated, 5 HP, Torque 14.9 ft.-lb., Nameplate RPM 1760, Speed Range 1000:1 CT, Max. Speed 3600 rpm, Frame 184TC, Max. Operating Frequency 120 Hz, Voltage 230/460, 60 Hz, 3 Phase, 13.4/6.7 Full Load Amps, Face/Base Motor Mounting Type, Horizontal Motor Mounting Position, CW/CCW Motor Shaft Rotation, Ball Motor Bearings, 1.00 Motor Service Factor, Motor Thermal Protection None, Ins. Class F, Ambient Temperature 40 Degrees C'
Details
- <b>Price For:</b> Each <b>Speed Range</b>: 1000:1 CT <b>Max. Operating Frequency</b>: 120 Hz <b>Torque</b>: 14.9 ft.-lb. <b>Motor Mounting Type</b>: Face/Base <b>Hz</b>: 60 <b>Motor Thermal Protection</b>: None <b>Motor Application</b>: Variable Speed <b>Base</b>: Rigid <b>Frame</b>: 184TC <b>Encoder Acceptable</b>: Yes <b>Duty</b>: Continuous <b>Voltage</b>: 230/460 <b>HP</b>: 5 <b>Phase</b>: 3 <b>Finish</b>: Powder Coat
- <b>Voltage Compatibility</b>: 460, 230/460, 220-230/460 <b>Ins. Class</b>: F <b>RPM Range</b>: 1701-1800 <b>Motor Bearings</b>: Ball <b>Standards</b>: UL, CSA, CE <b>Nominal Efficiency</b>: 88.5% <b>Shaft Length</b>: 2-5/8" <b>Motor Service Factor</b>: 1.00 <b>Full Load Amps</b>: 13.4/6.7 <b>Item</b>: Vector Motor <b>Encoder Shaft</b>: Yes <b>Motor Shaft Design</b>: Keyed <b>Shaft Dia.</b>: 1-1/8" <b>Motor Efficiency Group</b>: NEMA Premium Efficient <b>Motor Frame Material</b>: Cast Aluminum
- <b>Insulation Feature</b>: Max Guard <b>Motor Enclosure Design</b>: Totally Enclosed Nonventilated <b>Max. Speed</b>: 3600 rpm <b>Motor Design</b>: 3-Phase <b>NEMA Design</b>: A <b>Nameplate RPM</b>: 1760 <b>Overall Length</b>: 11-11/16" <b>Ambient Temperature</b>: 40 Degrees C <b>Frame Material</b>: Aluminum <b>CC Number</b>: CC003A <b>Motor Mounting Position</b>: Horizontal <b>Motor Shaft Rotation</b>: CW/CCW <b>Country of Origin (subject to change)</b>: Mexico
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRIC_MOTOR |
| Model | 184THTY7726 |
| Part number | 184THTY7726 |
| Items per pack | 1 |
| Label | MARATHON MOTORS |
| Manufacturer | MARATHON MOTORS |
