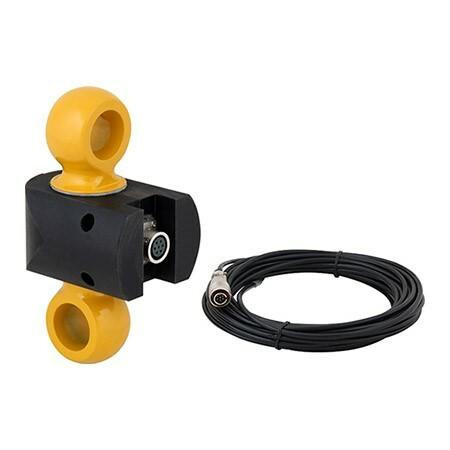

Anyload 110RH-T2-2t Tension Link Load Cell, NTEP - Scales Plus

Anyload . 110RH-T2-2T

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Attribute00Anyload
Attribute01110RH-T2-2t
Attribute024,000 lb
Attribute03Yes
Attribute04III
Attribute05CE, RoHS, and Ex
Attribute06150% capacity
Attribute071.69"
Attribute084.02"
Attribute092.48"
Attribute10Alloy Steel
Attribute11Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Blue = +Sense, Yellow = -Sense, Shield Bare
Attribute1210 V (maximum of 15 V)
Attribute132.0 mV/V ? 0.25%
Attribute141100 (? 50) ohms
Attribute151000 (? 10) ohms
Attribute1614?F to 122?F/-10?C to 50?C
Attribute17Environmentally Sealed
Attribute18IP67
Attribute1910 m
AttributeKey00Manufacturer
AttributeKey01Model
AttributeKey02Capacity
AttributeKey03NTEP
AttributeKey04Class
AttributeKey05Approvals
AttributeKey06Safe Overload
AttributeKey07, length_AttribLength
AttributeKey08, height_AttribHeight
AttributeKey09, width_AttribWidth
AttributeKey10Construction
AttributeKey11Cable Color Code
AttributeKey12Rated Excitation
AttributeKey13Full Scale Output
AttributeKey14Input Resistance
AttributeKey15Output Resistance
AttributeKey16Compensated Temperature Range
AttributeKey17Seal Type
AttributeKey18IP Rating
AttributeKey19Cable Length
DimensionUnitinch
Extra Product NameAnyload 110RH-T2-2t Tension Link Load Cell, NTEP - Scales Plus
height4.02
keywordsIndustrial Scales, Digital Scales, Laboratory Balances, Calibration Weights, Cannabis Scales, Jewelry Scales, NTEP Certified Scales, Load Cells
length1.69
moq, multiple, tierMinQty11
MPN, SKU110RH-T2-2T
qtyInStock0
snippetBuy the Anyload 110RH-T2-2t from the trained experts at Scales Plus!
tierPrice1980
width2.48

Distributor offers

SellerSKUMOQIn stockMultiplePrices
scalesplus.com110RH-T2-2T111 @ $980.00
