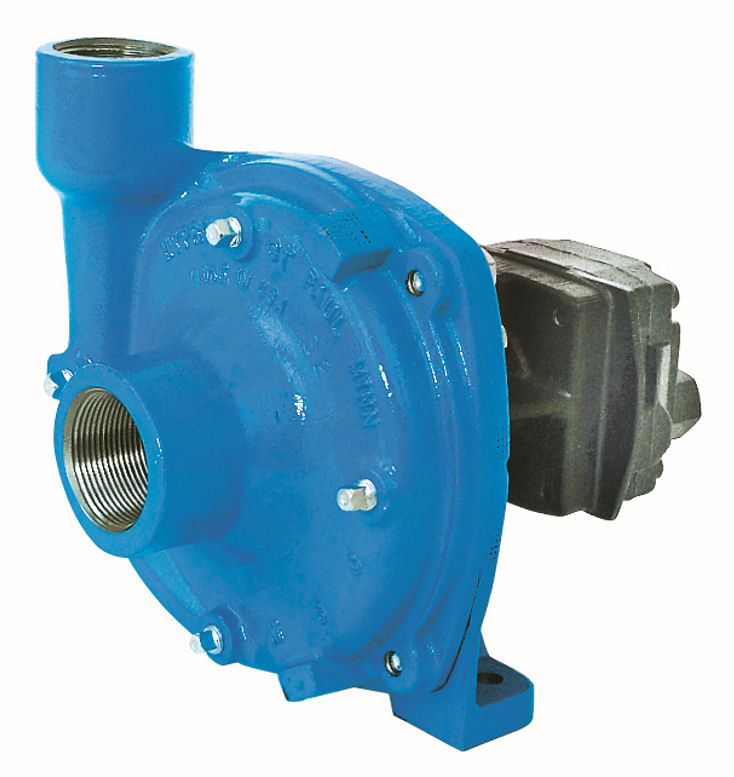

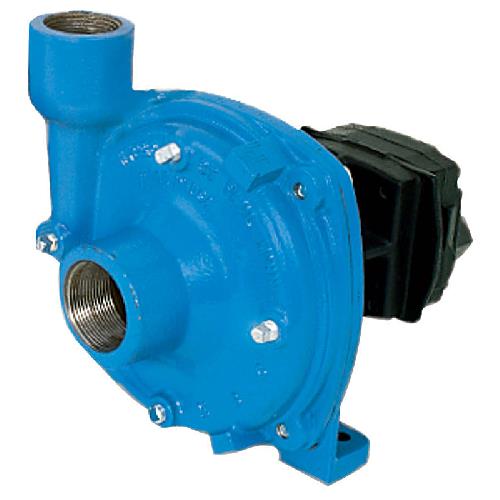

9303C-HM4C, 1-1/2" X 1-1/4" CAST PUMP 7 HYD GPM

Cast Iron, Hydraulic Motor-Driven Pump; Open/Closed Center System; 1 1/2" In, 1 1/4" Out; 115 GPM, 93 PSIPerformance Information Max. flow: 115 gpm/435 lpm (free flow) Max. pressure: 93 psi/6.4 bar (Shut off) (in closed center operation) Max. fluid temperature: 140°F/60°C Other Attributes Hydraulic motor drive (for open and closed center systems) Housing: cast iron or stainless steel Port sizes: 1 1⁄2" NPT inlet, 1 1⁄4" NPT outlet Impeller: Cast Iron models - glass-filled nylon; Stainless Steel models - polypropylene Pump seals: Cast Iron models - Viton/ceramic are standard; Stainless Steel models - Life Guard™ silicon carbide (Buna-N/ceramic and Viton/silicon carbide are available) More InformationProduct Catalog Weight: 26 lbs./11.8 kg Motor Characteristics Motor: internal gear gerotor Motor capacities: 6-9 gpm/34-38 lpm Max. motor psi: 2000 continuous duty, 2200 intermittent duty Hydraulic ports: 1⁄2" NPT Hydraulic motor seal: double-lip Teflon

Pump Port Sizes: 1-1/2" NPT Inlet x 1-1/4" NPT Outlet standard. 220 Inlet x 200 Outlet universal flange available (U). Hydraulic motor drive available for open, closed center, and load-sensing systems. Internal gear gerotor motor. Hydraulic Ports: 1/2" NPT inlet x 3/4" NPT outlet standard. -8 SAE ORB inlet x -10 SAE ORB outlet available. 316 Stainless Steel available for extended pump life. Housing: Cast iron and 316 stainless steel available. Impeller: Cast Iron Models -- Nylon Standard; GTX available. For many agricultural applications, install this Hypro 9303C-HM4C Centrifugal Pump in your spraying assemblies. Suited for high flow uses in open/closed systems, this ruggedly constructed pump, which comes in either cast iron or stainless steel, is rated with a maximum flow rate of 115 GPM and with an upper pressure limit of 93 PSI. Use it in assemblies that deploy water, insecticides, liquid fertilizers, emulsives and powers that require combination with water. Pump Type : Centrifugal Ports : 1-1/2 Inlet" x 1-1/4" NPT Outlet Hydraulic Selection System : Open/Closed Drive Type : Hydraulic Max GPM : 115 Max LPM : 435 Max PSI : 93 Max Bar : 6.4 Max Hydraulic GPM : 7 Max Hydraulic LPM : 26.5 Housing Material : Cast Iron Seal Material : Viton/Ceramic
