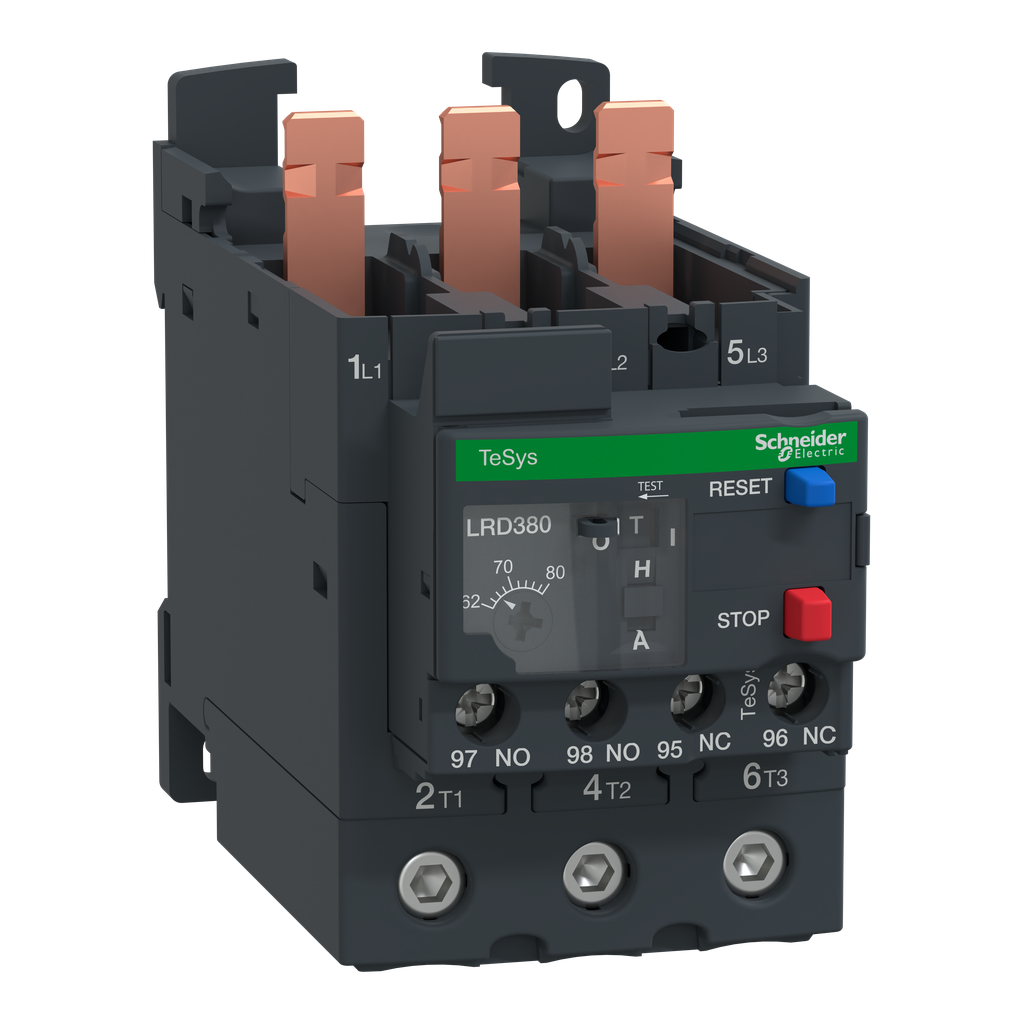

TeSys Deca non-differential therm overload relay 62-80A class10A EverLink | Mayer Electric

SQUARE D . SQDLR3D380

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00AC || DC
Attribute0162-80 A
Attribute02motor protection
Attribute03non differential thermal overload relay
Attribute04TeSys LRD || TeSys Deca
Attribute05class 10A IEC 60947-4-1
Attribute06TeSys || TeSys Deca
Attribute07power circuit 690 V IEC 60947-4-1 || power circuit 600 V UL 60947-4-1 || power circuit 600 V CSA C22.2 No 14
Attribute08LC1D80A
Attribute09LR3D
Attribute1018 months
Attribute110...400 Hz
Attribute1270 mm
Attribute135 A signalling circuit
Attribute141 NO + 1 NC
Attribute15control circuit screw clamp terminals 2 1-2.5 mm? flexible with cable end || power circuit EverLink BTR screw connectors 1 1-35 mm? flexible with cable end || power circuit EverLink BTR screw connectors 1 1-35 mm? solid || control circuit screw clamp terminals 2 1-2.5 mm? solid || control circuit screw clamp terminals 2 1-2.5 mm? flexible || power circuit EverLink BTR screw connectors 1 1-35 mm? flexible || power circuit direct terminal link top
Attribute16tripping current 130 % of Ir on two phase, the last one at 0
Attribute17690 V AC 0...400 Hz power circuit IEC 60947-4-1
Attribute184 A gG signalling circuit || 4 A BS signalling circuit
Attribute190.375 kg
Attribute206 kV
Attribute214.8 W
Attribute220.95 A 380 V AC-15 signalling circuit || 0.06 A 440 V DC-13 signalling circuit
Attribute231.14 +/- 0.06 Ir IEC 60947-4-1
Attribute24control circuit 1.7 N.m screw clamp terminals || power circuit 5 N.m EverLink BTR screw connectors 25-25 mm? || power circuit 8 N.m EverLink BTR screw connectors 35-35 mm?
Attribute25Red push-button stop || Blue push-button reset
Attribute26plate, with terminal block LAD96560 on top || rail, with terminal block LAD96560 on top || direct mounting under contactor
Attribute27, colorGray SE GREY 6)
Attribute2855 mm
Attribute29123 mm
Attribute30-20-60 ?C
Attribute31, Attribute32, Attribute35, Attribute37Yes
Attribute33ENVPEP080405EN
Attribute34Green Premium product
Attribute36Free of Substances of Very High Concern above the threshold
Attribute38The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Attribute39Pro-active China RoHS declaration (out of China RoHS legal scope)
Attribute40ENVEOLI0804005_V1
Attribute41Compliant
Attribute42IEC || UL || CSA || CCC || EAC || DNV-GL || RMRS || EU-RO MR || UKCA
Attribute43shocks15 Gn for 11 ms IEC 60068-2-7 || vibrations3 Gn IEC 60068-2-6
Attribute44EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5
Attribute45IACS E10
Attribute46-20-60 ?C without derating IEC 60947-4-1
Attribute471.89 kV 50 Hz IEC 60947-1
Attribute48IP20 conforming to IEC 60529
Attribute49V1 conforming to UL 94
Attribute50-60-70 ?C
AttributeKey00Network Type
AttributeKey01Thermal Protection Adjustment Range
AttributeKey02Relay Application
AttributeKey03Product Or Component Type
AttributeKey04Product Name
AttributeKey05Thermal Overload Class
AttributeKey06Range
AttributeKey07[Ui] Rated Insulation Voltage
AttributeKey08Product Compatibility
AttributeKey09Device Short Name
AttributeKey10Warranty
AttributeKey11Network Frequency
AttributeKey12, height_AttribHeight
AttributeKey13[Ith] Conventional Free Air Thermal Current
AttributeKey14Auxiliary Contact Composition
AttributeKey15Connections - Terminals
AttributeKey16Phase Failure Sensitivity
AttributeKey17[Ue] Rated Operational Voltage
AttributeKey18Associated Fuse Rating
AttributeKey19, Weight_AttribNet Weight
AttributeKey20[Uimp] Rated Impulse Withstand Voltage
AttributeKey21Power Dissipation Per Pole
AttributeKey22Permissible Current
AttributeKey23Tripping Threshold
AttributeKey24Tightening Torque
AttributeKey25Control Type
AttributeKey26Mounting Support
AttributeKey27Color
AttributeKey28, width_AttribWidth
AttributeKey29, length_AttribDepth
AttributeKey30Temperature Compensation
AttributeKey31Rohs Exemption Information
AttributeKey32Mercury Free
AttributeKey33Environmental Disclosure
AttributeKey34Sustainable Offer Status
AttributeKey35Toxic Heavy Metal Free
AttributeKey36Reach Regulation
AttributeKey37Reach Free Of Svhc
AttributeKey38Weee
AttributeKey39China Rohs Regulation
AttributeKey40Circularity Profile
AttributeKey41Eu Rohs Directive
AttributeKey42Product Certifications
AttributeKey43Mechanical Robustness
AttributeKey44Standards
AttributeKey45Climatic Withstand
AttributeKey46Ambient Air Temperature For Operation
AttributeKey47Dielectric Strength
AttributeKey48Ip Degree Of Protection
AttributeKey49Flame Retardance
AttributeKey50Ambient Air Temperature For Storage
DimensionUnitmm
Extra Product NameTeSys Deca non-differential therm overload relay 62-80A class10A EverLink | Mayer Electric
UPC3606481312013
Weight0.375
WeightUnitkg
depth, length123.0
height70.0
jsonUrlData/Product/SQUARE-D-TeSys-Deca-non-differential-therm-overload-relay-62-80A-class10A-EverLink-3606481312013
jsonUrlData2e6d15383-dc14-4c3a-b7ee-aeea0056666a
moq, multiple, tierMinQty11
MPN, SKUSQDLR3D380
qtyInStock0
tierPrice1121.98
width55.0

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDLR3D380111 @ $121.98
