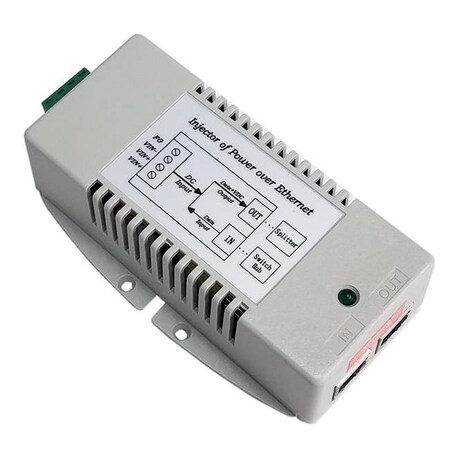

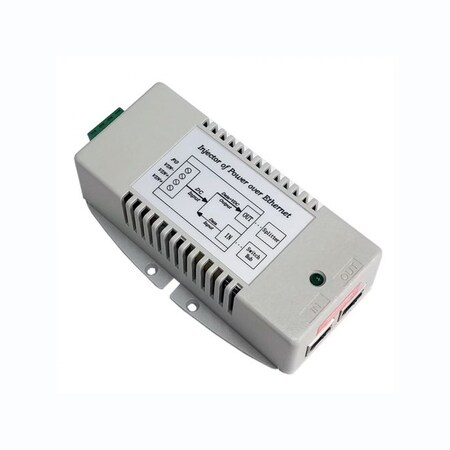

Gigabit 9-36VDC IN 24VDC 4 Pair PoE OUT 24W DC to DC Converter and PoE inserter
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G4584127 | 1 | -2 | 1 | 1 @ $104.99 |
 Digi-Key | 17047359 | 1 | 534 | 1 | 1 @ $104.45 |
| Digi-Key | 11479916 | 1 | 1 | ||
 Zoro | G804040186 | 1 | 1 | 1 @ $144.90 | |
 unbeatablesale.com | TYCN1479 | 1 | -2 | 1 | 1 @ $93.51 |
 PCNation | 7576AY | 1 | In Stock | 1 | 1 @ $86.26 |
 Walmart | 606243392 | 1 | -2 | 1 | 1 @ $91.95 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Tycon Systems 24VDC 4-Pair Gigabit Passive Power Over Ethernet (TP-DCDC-1224G-4P)
Brand: Tycon Systems
Details
- Input Voltage 9-36VDC
- 24V Gigabit Passive 4 Pair PoE Output
- Dual Inputs for Connecting 2 Power Sources
- Integrated 10/100/1000MB PoE Inserter
- High Power up to 24W
Listing
| Binding | Electronics |
|---|---|
| Product group | CE |
| Product type | POWER_SUPPLIES_OR_PROTECTION |
| Model | TP-DCDC-1224G-4P |
| Part number | TP-DCDC-1224G-4P |
| Items per pack | 1 |
| Label | Tycon Systems |
| Manufacturer | Tycon Systems |
9-36VDC in 24VDC 24W Out DC to DC Converter and Gigabit 4 Pair POE inserter. 1,2,4,5V+; 3,6,7,8V-, Shielded
Brand: Tycon Power Systems
The TP-DCDC-1224G-4P is a low cost and high efficiency solution for those requiring 24VDC 4 pair Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle. They have an integrated 4 pair PoE injector to apply the power and data output to the CAT5/6 Ethernet cable. All 8 wires carry both data and PoE power. The output voltage is regulated and protected. They have a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. Input and outputs are isolated so + or – ground is OK. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and 4 pairt PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 1,2,4,5(V+) and 3,6,7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 24W.
Details
- The TP-DCDC-1224G-4P is a low cost and high efficiency solution for those requiring 24VDC 4 pair Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle
- It has an integrated 4 pair PoE injector to apply the power and data output to the CAT5/6 Ethernet cable. All 8 wires carry both data and PoE power. The output voltage is regulated and protected
- Also has a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. Input and outputs are isolated so + or – ground is OK
- TP-DCDC-1224G-4P accepts gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and 4 pairt PoE power on the shielded RJ45 output jack
- Applications: 12V / 24V Battery Systems, Vehicle Applications; UBNT Airfiber-X; Wireless Access Points and Client Devices
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Model | TP-DCDC-1224G-4P |
| Part number | TP-DCDC-1224G-4P |
| Items per pack | 1 |
| Label | Tycon Systems |
| Manufacturer | Tycon Systems |
Tycon Systems TP-DCDC-1224G-4P 9-36VDC in 24VDC Out 24W DC to DC Converter and GIGABIT 4 Pair POE INSERTER. 1,2
Brand: Tycon Systems
9-36Vdc In 24Vdc Out 24W Dc To Dc Converter And Gigabit 4 Pair Poe Inserter. 1,2
Details
- TP-DCDC-1224G-4P
Listing
| Product group | CE |
|---|---|
| Product type | ELECTRONIC_SIGNAL_CONVERTER |
| Part number | TP-DCDC-1224G-4P |
| Label | TYCON SYSTEMS, INC |
| Manufacturer | TYCON SYSTEMS, INC |

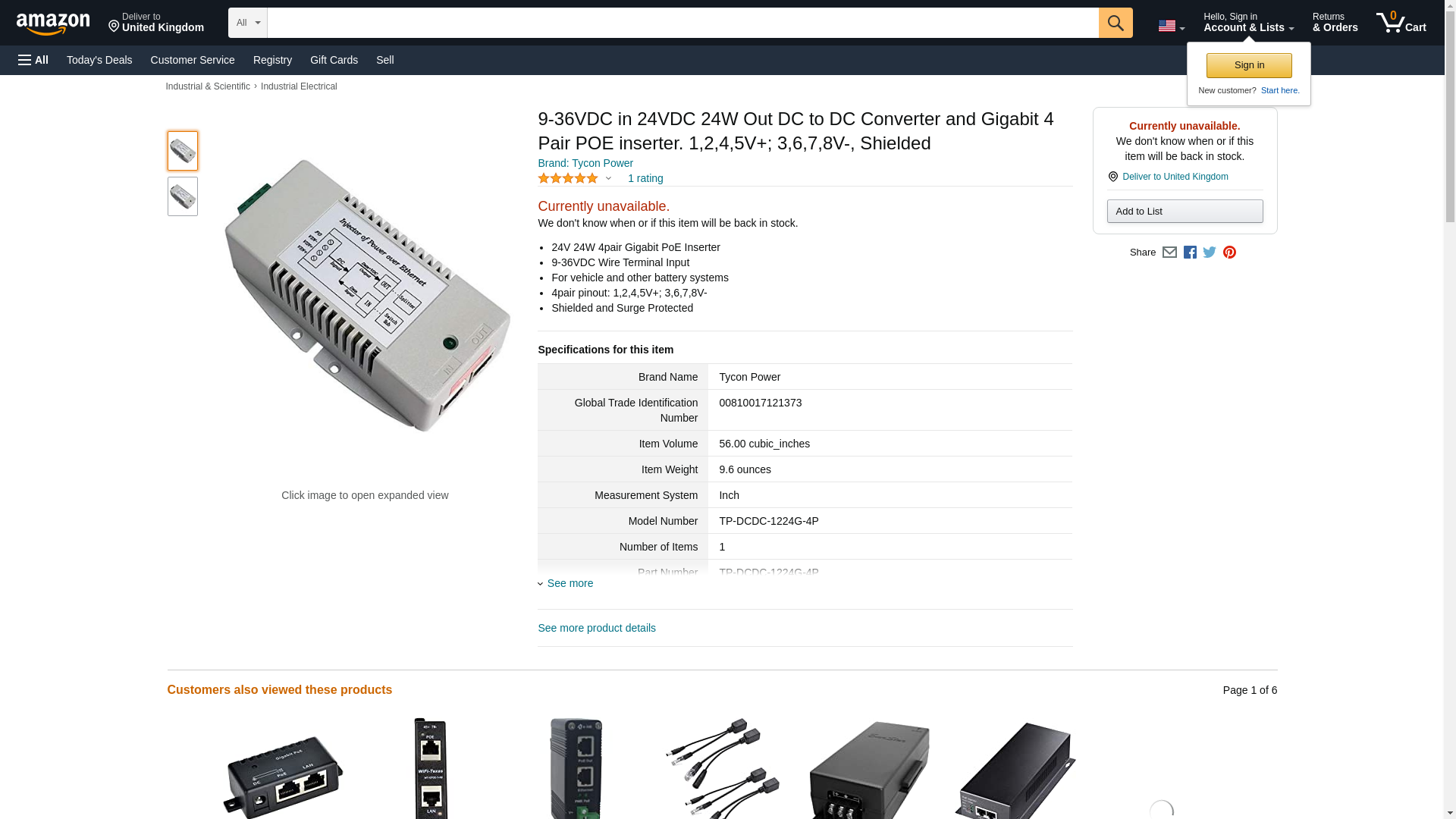

TP-DCDC-1224G-4P - 10-36VDC Input, 24V 4Pair Gigabit Passive PoE Output, 24W
Brand: Tycon Power
9-36VDC IN, 24V 24W Gigabit Passive 4pair PoE OUT. DC to DC Converter and PoE Injector, PoE Pins 1245(+), 3678(-)
Details
- 24V 24W 4pair Gigabit PoE Inserter
- 9-36VDC Wire Terminal Input
- For vehicle and other battery systems
- 4pair pinout: 1,2,4,5V+; 3,6,7,8V-
- Shielded and Surge Protected
