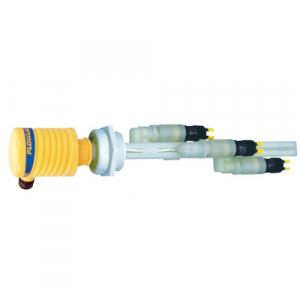

Order AU48-4343-A-B-C-D-E by Flowline Smart Trak NPT Compact Junction Box - US Mega Store

Flowline . AU48-4343-A-B-C-D-E

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerFlowline
Attribute00, Attribute248" to 10' (20cm to 3m)
Attribute01, Attribute25± 1mm in water
Attribute02, Attribute26± 0.5mm in water
Attribute03, Attribute27± 20° vertical
Attribute04, Attribute281-4 (field adjustable)
Attribute05, Attribute2912-36 VDC
Attribute06, Attribute3025 mA per point maximum
Attribute07, Attribute31SPST relay(s)
Attribute08, Attribute32120 VAC/VDC @ 1A
Attribute09, Attribute33Selectable NO / NC
Attribute10, Attribute340-60 seconds
Attribute11, Attribute35Selectable ON / OFF
Attribute12, Attribute36F: -40° to 176°, C: -40° to 80°
Attribute13, Attribute37F: -40° to 140°, C: -40° to 60°
Attribute14, Attribute385.7" (14.4cm) above tank process mount
Attribute15, Attribute39Atmospheric
Attribute16, Attribute40NEMA 4X (IP65)
Attribute17, Attribute41PP, UL94VO
Attribute18, Attribute4212-pole, socket
Attribute19, Attribute431/2" NPT
Attribute20, Attribute44PP (20% glass fill)
Attribute21, Attribute452" NPT
Attribute22, Attribute46General purpose
Attribute23, Attribute47CE
AttributeKey00, AttributeKey24, length_AttribLength:
AttributeKey01, AttributeKey25Accuracy:
AttributeKey02, AttributeKey26Repeatability:
AttributeKey03, AttributeKey27Orientation:
AttributeKey04, AttributeKey28Switch Points:
AttributeKey05, AttributeKey29Supply Voltage:
AttributeKey06, AttributeKey30Consumption:
AttributeKey07, AttributeKey31Contact Type:
AttributeKey08, AttributeKey32Contact Rating:
AttributeKey09, AttributeKey33Contact Output:
AttributeKey10, AttributeKey34Contact Delay:
AttributeKey11, AttributeKey35Contact Latch:
AttributeKey12, AttributeKey36Process Temp.:
AttributeKey13, AttributeKey37Ambient Temp.:
AttributeKey14, AttributeKey38, height_AttribInstalled Height:
AttributeKey15, AttributeKey39Pressure:
AttributeKey16, AttributeKey40Enclosure Rating:
AttributeKey17, AttributeKey41Enclosure Mat.:
AttributeKey18, AttributeKey42Terminal Strip:
AttributeKey19, AttributeKey43Conduit Entrance:
AttributeKey20, AttributeKey44Wetted Material:
AttributeKey21, AttributeKey45Process Mount:
AttributeKey22, AttributeKey46Classification:
AttributeKey23, AttributeKey47Compliance:
CategoryL1Process Control & Automation
CategoryL2Indicators
CategoryL3Level
CategoryL4Flowline AU48-4343-A-B-C-D-E
ConditionNEW
DimensionUnitinch
Extra Product NameOrder AU48-4343-A-B-C-D-E by Flowline Smart Trak NPT Compact Junction Box - US Mega Store
height5.7
length8.0
moq, multiple, tierMinQty11
MPN, SKUAU48-4343-A-B-C-D-E
qtyInStockContact Us
snippet<p><strong>Flowline, AU48-4343-A-B-C-D-E, Smart Trak 2" NPT Compact Junction Box w/ Ultrasonic PP Sensor & Four SPST Relay </strong> </p> <p><strong>Features: </strong> </p> <ul><li>Rugged polypropylene multi-point level switch package for corrosive liquids. </li> <li>60VA relay or 15VA dry contact selectable NO or NC via wiring. </li> <li>Offered in 3 sensing technologies for broad application coverage: ultrasonic, vibration & buoyancy. </li> <li>Adjustable level switch cars enable sensor adjustment in the field. </li> <li>Available in intrinsically safe and general purpose classifications. </li> <li>Polypropylene junction box or controller enclosure rated NEMA 4X with swivel base and terminal strip. </li> </ul> <p><strong>Application: </strong> </p> <p>The general purpose level switch package provides reliable, multi-point liquid level detection up to 10' (3m) with 1-4 adjustable level switch points and a compact junction box for integral wiring termination. Available in three level sensor technologies, select the sensor type based upon your application media. This PP liquid level switch package is widely applied in process, sump and day tank level applications for automatic filling or emptying with high level alarm and/or low level alarm. </p> <p><strong>Key Benefits: </strong> </p> <ul><li>Mounts on the top wall of tank. </li> <li>Select from 1 to 4 switch points and the custom switch points. </li> <li>Each switch connects directly to a PLC/SCADA. </li> <li>Ideal for multi-point switch operation. </li> <li>Switch points are fully adjustable. </li> </ul>
tierPrice11874

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comAU48-4343-A-B-C-D-E1Contact Us11 @ $1874.00
heavydutydepot.comAU48-4343-A-B-C-D-E111 @ $1874.00
MegadepotAU48-4343-A-B-C-D-E111 @ $1874.00
TranscatAU48-4343-A-B-C-D-E111 @ $1475.00
RadwellAU48-4343-A-B-C-D-E11
