Order 3PBVPV1205-T3 by W.E. Anderson Series 3PBV Electric Ball Valve - US Mega Store

W.E. Anderson . 3PBVPV1205-T3

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerW.E. Anderson
Attribute00, Attribute18"T" Port
Attribute01, Attribute19Compatible liquids or gases
Attribute02, Attribute203-way
Attribute03, Attribute211-1/4"
Attribute04, Attribute22Female NPT
Attribute05, Attribute23150 psi(10.3 bar) @ 73°F WOG
Attribute06, Attribute24Body, end connectors: PVC; Ball, stem:PVC; Seat: TFE; Stem seal: EPDM
Attribute07, Attribute2532 to 140°F
Attribute08, Attribute26120 VAC, 50/60Hz, single phase. Optional 220 VAC, 24VAC, 12 VDC, and 24 VDC
Attribute09, Attribute270.75 A
Attribute10, Attribute285 s
Attribute11, Attribute2975%
Attribute12, Attribute30NEMA 4. Optional NEMA 7 (Class 1, Div. II groups A, B, C,D)
Attribute13, Attribute31Aluminum with thermal bonding polyester powder finish
Attribute14, Attribute320 to 150°F
Attribute15, Attribute331/2" female NPT
Attribute16, Attribute344 to 20 mA
Attribute17, Attribute35Manual override and visual position indicator except modulating units
AttributeKey00, AttributeKey18Port Configuration
AttributeKey01, AttributeKey19Service
AttributeKey02, AttributeKey20Body
AttributeKey03, AttributeKey21Line Size
AttributeKey04, AttributeKey22End Connections
AttributeKey05, AttributeKey23Pressure Limit
AttributeKey06, AttributeKey24Wetted Materials
AttributeKey07, AttributeKey14, AttributeKey25, AttributeKey32Temperature Limit
AttributeKey08, AttributeKey26Power Requirements
AttributeKey09, AttributeKey27Power Consumption (Locked Rotor Current)
AttributeKey10, AttributeKey28Cycle Time
AttributeKey11, AttributeKey29Duty Cycle
AttributeKey12, AttributeKey30Enclosure Rating
AttributeKey13, AttributeKey31Housing Material
AttributeKey15, AttributeKey33Conduit Connection
AttributeKey16, AttributeKey34Modulating Input
AttributeKey17, AttributeKey35Standard Features
CategoryL1Process Control & Automation
CategoryL2Valves
CategoryL3Electric
CategoryL4W.E. Anderson 3PBVPV1205-T3
ConditionNEW
Extra Product NameOrder 3PBVPV1205-T3 by W.E. Anderson Series 3PBV Electric Ball Valve - US Mega Store
moq, multiple, tierMinQty11
MPN, SKU3PBVPV1205-T3
qtyInStockContact Us

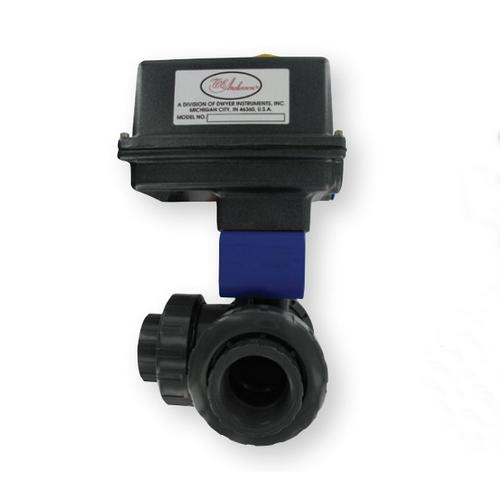

snippet<p><strong>Series 3PBV Electric Automated Ball Valve, Connection Size - 1-1/4", Actuator - Electric Modulating 120 VAC Size 200, T-Port Configuration 3 </strong> </p> <p><strong>The Series 3PBV </strong> is ideal for mixing or diverting services in industrial, chemical, turf and irrigation, and pool and spa applications, as well as for use with potable water. The valve features a 3-seat design for efficient automation, reinforced TFE seats and EPDM seals for longer life, and an all PVC construction for heavy weight durability at a lightweight cost. </p> <p> Electrically actuated models are weatherproof, NEMA 4, powered by standard 115 VAC supply. Two-position actuators use the 115 VAC input to drive each of the valve ports open or closed, while the modulating actuator accepts a 4 to 20 mA input for infinite valve positioning. Actuator features include thermal overload protection to withstand stall conditions, visual position indication and a permanently lubricated gear train. </p>
tierPrice13138
