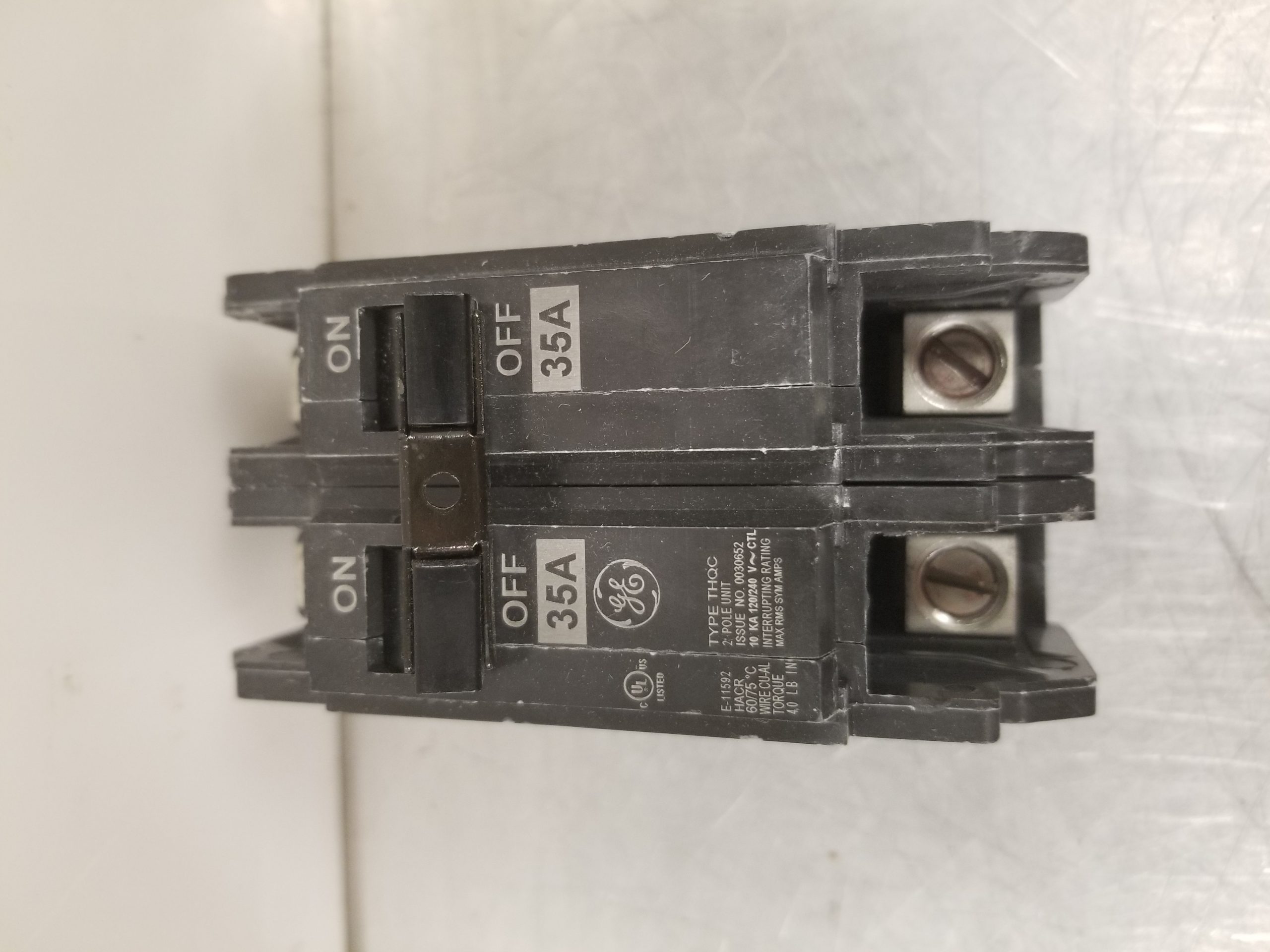

THQC2135WL-GE - General Electric-Molded Case

These THQC and THHQC series miniature circuit breakers mount on 35mm DIN rail to save space in panelboards and load centers. They interrupt currents when faults are detected in the circuit. Sometimes called freestanding miniature circuit breakers, they can also be surface-mounted within a larger panel or flush-mounted in an enclosure. They're UL listed for use in HACR (heating, air conditioning, and refrigeration) applications. This listing is for each. THERMAL MAGNETIC, INTERNAL COMMON TRIP TYPE; 2 INCH W X 2 3/8 INCH D X 3 9/32 INCH H SIZE; 8 TO 3 AWG (COPPER/ALUMINUM) WIRE SIZE; UL APPROVAL; 120/240 VAC VOLTAGE RATING; 35 MM DIN RAIL MOUNTING; 10 KILOAMPERE INTERRUPTING RATING; 35 AMPERE CURRENT RATING; 2 POLE(S); LUG LINE TERMINAL, LUG LOAD TERMINAL TERMINAL TYPE; APPLICATION HEATING, AIR CONDITIONING, REFRIGERATION; THQC MODEL

Mfr Brand Name: GE / Catalog No.: THQC2135WL / Product Name: GE THQC2135WL N 35A 120V 2P NEW / Amps: 35 / Volts: 120 / Poles: 2 / AIC Rating: 10

Thermal Magnetic, Common Trip; 2 Pole; 120/240 Vac; 35 Ampere; Interrupting Rating 10 Kiloampere; Lug Line Terminal, Lug Load Terminal Terminal; Wire Size 6 To 1/0 Awg (copper), 4 To 1/0 Awg (aluminum); Cable In, Cable Out Mounting; Size 2 Inch W X 2 3/8 Inch D X 3 9/32 Inch H; Approval Ul; Thqc Model
