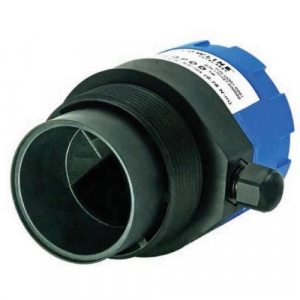

Flowline, UG01-0011-40, EchoPod Reflective Ultrasonic Multi-Function Liquid Level Transmitter 1.5m (4.9') Range, 2" G, 4 SPST Relays, without Fob The general purpose reflective ultrasonic multi-function level transmitter provides continuous level measurement. The non-contact liquid level sensor features our proprietary Reflective Technology that delivers reliable level measurement in condensing environments. Each relay can be configured for alarm, automatic fill or empty functions. Select this sensor for small tanks with non-foaming or highly vaporous media such as chemicals, water, wastewater and oil. Typical applications include day tank, IBC or drum, cooling tower, skid or machine, process tank and waste sumps. Features: Fail-safe diagnostics with selectable relay and signal outputs Narrow 2 (5cm) beam width for applications with limited space Corrosion resistant PVDF transducer and compact PP enclosure Short 1.5 (3.8cm) dead band maximizes tank filling capacity Automatic temperature compensation from -40 to 80 C. Four programmable relays with embedded level control logic 1 pump or valve with 3 alarms 2 pumps lead-lag with 2 alarms 2 pumps duplexing with 2 alarms 4 independent switch point alarms Reflective Condensation is the most common variable in liquid level applications. Condensation attenuates the acoustic signal of ultrasonic sensors with horizontal transducers, weakening their signal strength and signal to noise ratio by up to 50%, and substantially reducing their measurement reliability. At the core of Reflective Technology is a simple fact. Unlike flat horizontal surfaces, significant water droplets cannot adhere to smooth vertical surfaces. By orienting the transducer vertically, condensation runs off the transducer and does not affect sensor performance. The unimpeded transmit and receive signals are redirected to and from the liquid off a 45 reflector, delivering reliable level measurement. Thanks gravity.
