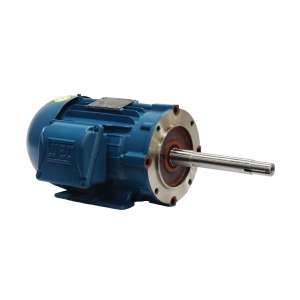

Weg Electric 00336ET3E182JP-W22, 3 Hp, 3600 Rpm, 182/4JP Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Close Coupled Pump JP NEMA Standard Efficiency.
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| industrialmotors.com | 00336ET3E182JP-W22 | 1 | 1 | ||
| 00336ET3E182JP-W22 | 1 | Ships From Manufacturer | 1 | 1 @ $804.79 | |
| AE8UEN | 1 | 1 | 1 @ $1755.58 | ||
 MRO Supply | 1313644 | 1 | 1 | 1 @ $736.83 | |
| 00336ET3E182JP-W22-WEG | 1 | 1 | 1 @ $766.31 | ||
| 00336ET3E182JP-W22 | 1 | 1 | 1 @ $699.75 | ||
| sustainablesupply.com | C1492816 | 1 | Add to Cart | 1 | 1 @ $1323.95 |
| Square One | 00336ET3E182JP-W22 | 1 | 1 | ||
 Walker Industrial | 00336ET3E182JP-W22 | 1 | 3 to 5 Days | 1 | 1 @ $699.75 |
| 00336ET3E182JP-W22 | 1 | 1 | 1 @ $851.84 | ||
| Grainger | 6FJY4 | 1 | 1 | ||
 Zoro | G4104572 | 1 | 1 | 1 @ $788.26 | |
 cbtcompany.com | 00336ET3E182JP-W22 | 1 | 1 | ||
 Radwell | 00336ET3E182JP-W22 | 1 | 1 | ||
 National Supply Network | B880640 | 1 | -2 | 1 | 1 @ $1262.71 |
| Applied Industrial | 101401542 | 1 | 1 | ||
| kscdirect.com | WEG 00336ET3E182JP-W22 | 1 | 1 | ||
| 00336ET3E182JP-W22 | 1 | -2 | 1 | 1 @ $852.76 | |
 electricmotorwholesale.com | 00336ET3E182JP-W22 | 1 | 1 | 1 @ $590.00 | |
| Global Industrial | B880640 | 1 | 1 | 1 @ $697.00 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
WEG 00336ET3E182JP-W22 W22 JP Type TEFC NEMA Premium Close Coupled Electric Pump Motor, 3 HP, 3-Phase, 3510 rpm, 208-230/460 V, 60 Hz, Frame 182JP
Brand: WEG
Details
- Current Rating 8.01-7.26/3.63 A
- FC-200 Cast iron frames
- Service Factor: 1.25
- F-1 mount
- Three-phase, 60 Hz
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS |
| Product type | WATER_PUMP |
| Model | 1616926 |
| Part number | 00336ET3E182JP-W22 |
| Items per pack | 1 |
| Label | WEG |
| Manufacturer | WEG |
Catalog
| Feature | Current Rating 8.01-7.26/3.63 A |
|---|---|
| Category | Industrial & Scientific |
| MPN | 00336ET3E182JP-W22 |
| Product group | BISS |
| Product type | BEARINGS_AND_BUSHINGS |
| Manufacturer | WEG |
WEG 00336ET3E182JP-W22 3HP 3600 3 60 230/460 Close C-TEFC
Brand: WEG Electric Motor
WEG 00336ET3E182JP-W22 3HP 3600 360 230/460 Close C-TEFC
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRIC_MOTOR |
| Part number | 00336ET3E182JP-W22 |
Weg 3 HP Close-Coupled Pump Motor, 3-Phase, 3510 Nameplate RPM, 208-230/460 Voltage, 182JP - 00336ET3E182JP-W22
Brand: WEG
<p><b>Specifications: </b><ul><li>Item:-Close-Coupled Pump Motor</li><li>Motor Application:-Pumps</li><li>Motor Sub Application:-Waste Water</li><li>Motor Type:-3-Phase</li><li>Enclosure:-Totally Enclosed Fan-Cooled</li><li>HP:-3</li><li>Nameplate RPM:-3510</li><li>Frame:-182JP</li><li>Rotation:-CW/CCW</li><li>Voltage:-208-230/460</li><li>Full Load Amps:-8.1-7.26/3.63</li><li>Phase:-3</li><li>Hz:-60</li><li>Mounting:-Face/Base</li><li>Bearings:-Regreasable Ball</li><li>Frame Material:-Cast Iron</li><li>Thermal Protection:-None</li><li>Service Factor:-1.25</li><li>Max. Ambient Temp.:-40 Degrees C</li><li>Shaft Dia.:-7/8"</li><li>Shaft Length:-7-3/16"</li><li>Shaft Type:-JP Threaded</li><li>Length Less Shaft:-11-7/8"</li><li>Overall Length:-19-1/16"</li><li>Insulation Class:-F</li><li>RPM Range:-3001-3600</li><li>Duty:-Continuous</li><li>Nominal Efficiency:-86.5%</li><li>Efficiency Group:-NEMA Premium</li><li>Inverter Rated:-1000</li><li>Standards:-UL Recognized, CSA Certified, CE Compliant</li><li>UNSPSC:-26101612</li></ul></p>
Details
- Item:-Close-Coupled Pump Motor
- Motor Application:-Pumps
- Motor Sub Application:-Waste Water
- Motor Type:-3-Phase
- Enclosure:-Totally Enclosed Fan-Cooled
Listing
| Product group | Home Improvement |
|---|---|
| Product type | WATER_PUMP |
| Part number | 00336ET3E182JP-W22 |
| Label | Weg |
| Manufacturer | Weg |
