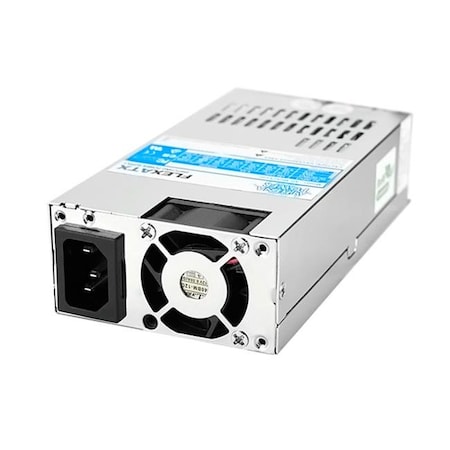

Athena Computer Power AP-MFATX50P8 500W Flex ATX Power Supply

Athena Power is proudly introducing the First FlexATX 500W power supply unit APMFATX50P8 to the market APMFATX50P8 is designed for SFF systems such as a miniITX 1U IPC server or high performance system The APMFATX50P8 is an UL and TUV certified IPC grade server power supply unit It also features Active PFC Power Factor Correction with Full Range AC Input These features make APMFATX50P8 being a high efficiency 80PLUS Silver and reliability FlexATX power supply unit Features. Remote OnOFF function. 100 Hipot ATE and Burnin tested. Exhaust 12V DC fan with thermal fan speed controller. Protection Features Output over voltage short circuit and overload. Complied with FLEX ATX12V and EPS12V standard SLI Cross Fire ready. Active PFC Power Factor Correction circuits with Full Range Input meets EN6100032. Complied with EMI regulatory FCC part 15 subpart J class B 115 Vac operation CISPR 22 class B 230 Vac operationSpecifications. Product Category FLEX ATX. Output Power 500 watt. Input Votage 88 264 Volts AC. Frequency 6050 Hz. MTBF 100000 Hours on Maximum Load at 25C. Temperature Range Operating 0C 50C on Full Load Storage Shipping 20C 80C. Rise time Less than 20 ms. Holdup Time 17 ms Minimum at Nominal Input Voltage. Weight 35 lbs. Dimension 6 x 32 x 159 in
