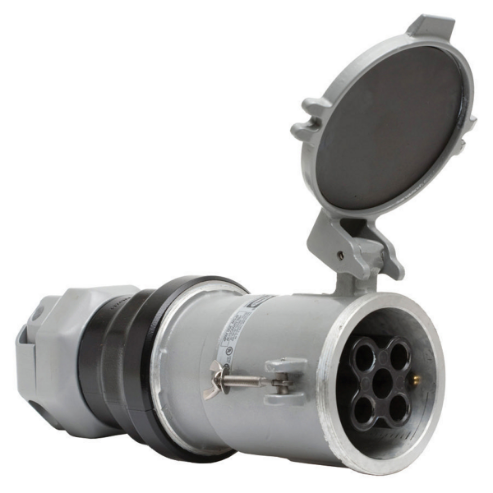

Hubbell Wiring Devices Ps, Ins, Connector, 2P3W, 100A 600V, S2 - HBL3100CS2W

HUBBELL HUBBELL WIRING DEVICE KELLEMS HEAVY DUTY PRODUCTS INSULGRIP PIN ANDSLEEVE DEVICES INDUSTRIAL GRADE FEMALE CONNECTOR BODY 100A 600V AC 2-POLE 3-WIRE GROUNDING STYLE 2 TERMINAL SCREWS GRAY AND BLACK WATERTIGHT This listing is for Each. Amperage 100 Amperage Rating 100 Application Metallic with Nylon Shroud Approximate Weight 4.1 Brand WIRING DEVICE-KELLEMS Catalog Number HBL3100CS2W Color Black and Gray Conductor Range #4 AWG to #2 AWG Connection Pressure Screw Terminal Country of Origin USA Current Rating 100 Environmental Conditions Watertight Insulation Insulated Body Manufacturer Hubbell Wiring Material Composite Mounting Cord Mounted NEMA Configuration Non-NEMA NEMA Rating Non-NEMA Number Of Poles 2-Pole Number of Conductors 3-Wire Grounding Series UL 1686 Class 1 Insulgrip Size Standard Special Features Watertight Standard CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682 Stock Status NONSTOCK Temperature Rating Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact. Trade Size Standard Type Watertight Connector Voltage 600 VAC/250

<br /><br /> Item - Plugs and Receptacles: Watertight Pin and Sleeve Connector<br /> Body Material - Pin and Sleeve: Valox 357 Housing and Aluminum Shroud<br /> Amps - Plugs and Receptacles: 100<br /> Voltage - Plugs and Receptacles: 600VAC/250VDC<br /> Color - Plugs and Receptacles: Gray<br /> Number of Poles: 2<br /> Number of Wires: 3<br /> Phase - Electrical: 1<br /> Switch Rated: No<br /> Grounding Style: 2<br /> Features: Ground Through Dedicated Ground Pin<br /> Standards: UL Listed 1686-C1, CSA Certified<br /> NEMA Rating: 4X<br /> Item: Watertight Pin and Sleeve Connector
