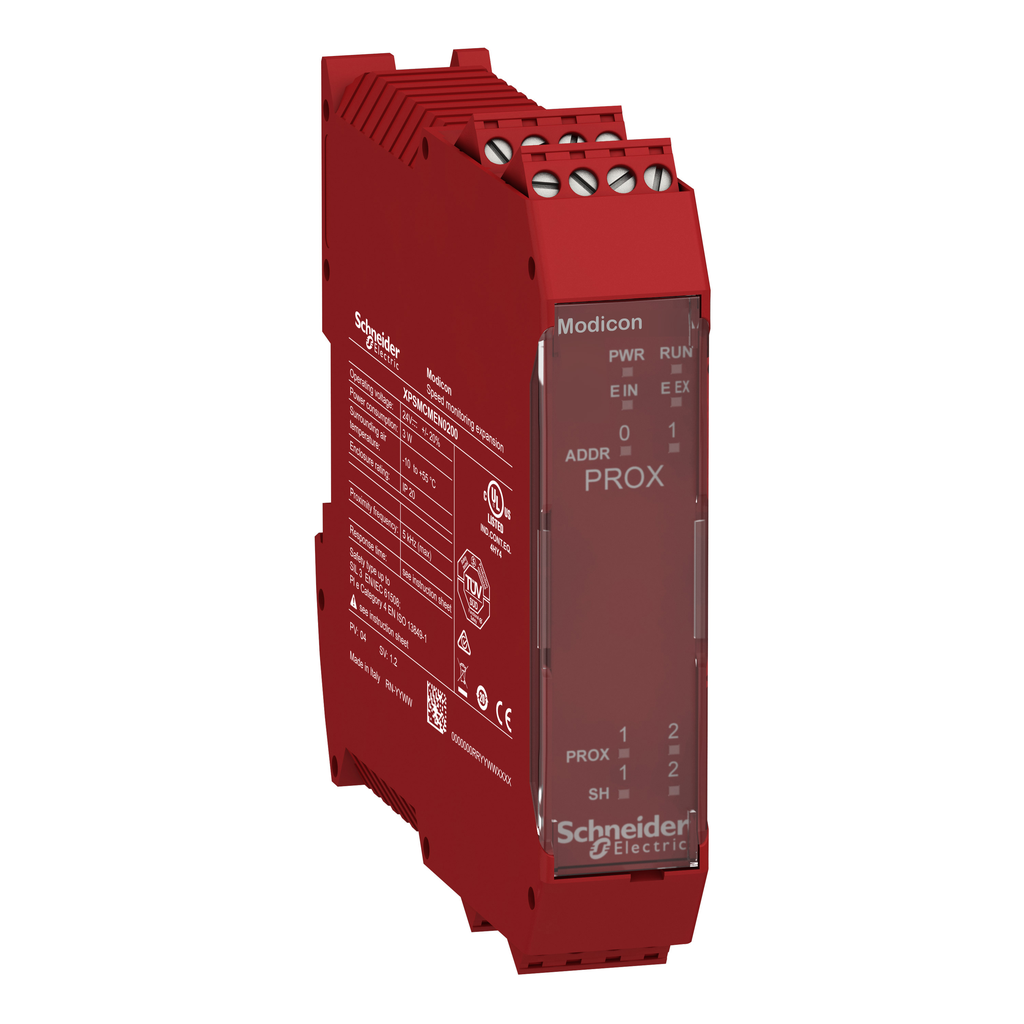

Speed monitoring 2 Proximity sensor expansion module with screw term | Mayer Electric

SQUARE D . SQDXPSMCMEN0200

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00Preventa Safety automation
Attribute0124 V DC
Attribute02safe speed monitoring module
Attribute0324 V - 20...20 % DC
Attribute04screw terminal
Attribute05speed monitoring
Attribute06XPSMCM
Attribute072 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block
Attribute084
Attribute0999 mm
Attribute10backplane expansion bus
Attribute110.2-2.5 mm? flexible without cable end || 0.2-2.5 mm? solid without cable end || 0.25-2.5 mm? flexible with cable end, with bezel || 0.25-2.5 mm? flexible with cable end, without bezel || 0.2-1.5 mm? flexible without cable end || 0.25-1 mm? flexible with cable end, without bezel || 0.5-1.5 mm? flexible with cable end, with double bezel || 0.2-1 mm? solid without cable end
Attribute12, Attribute163 W
Attribute131 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 2 LEDs yellow PROX proximity sensors connection status || 2 LEDs yellow SH speed monitoring status
Attribute140.23 kg
Attribute155 kHz sensor
Attribute17CE
Attribute18omega 35 mm DIN rail EN 50022
Attribute19inductive proximity sensor
Attribute20114.5 mm
Attribute2122.5 mm
Attribute22can reach category 4 EN/ISO 13849-1 || can reach PL = e EN/ISO 13849-1 || type 4 EN/IEC 61496-1 || SILCL 3 IEC 62061
Attribute23, Attribute24, Attribute27, Attribute30Yes
Attribute25ENVPEP1409010EN
Attribute26Green Premium product
Attribute28Free of Substances of Very High Concern above the threshold
Attribute29Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute31The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Attribute32X
Attribute33ENVEOLI1409010EN
Attribute34Pro-active compliance (Product out of EU RoHS legal scope)
Attribute35cULus || T?V || RCM
Attribute36IEC 62061 || EN/IEC 61800-5-1 || EN/IEC 61496-1 || EN/ISO 13849-1 || EN/IEC 61508
Attribute372
Attribute38-10-55 ?C
Attribute39electrostatic discharge immunity test 6 kV on contact) EN/IEC 61000-4-2 || electrostatic discharge immunity test 20 kV on air) EN/IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80...1000 MHz) EN/IEC 61000-4-3 || susceptibility to electromagnetic fields 30 V/m 1.4 GHz...2 GHz) EN/IEC 61000-4-3
Attribute4010 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1
Attribute41+/-0.35 mm 10-55 Hz)EN/IEC 61496-1
Attribute424 kV EN/IEC 61800-5
Attribute43IP20 enclosure)
Attribute44-20-85 ?C
Attribute4520 year(s)
Attribute4610-95 %
Attribute47II
Attribute48250 V AC between power supply and housing EN/IEC 61800-5-1
AttributeKey00Range Of Product
AttributeKey01Discrete Input Voltage
AttributeKey02Product Or Component Type
AttributeKey03[Us] Rated Supply Voltage
AttributeKey04Electrical Connection
AttributeKey05Function Of Module
AttributeKey06Device Short Name
AttributeKey07Connections - Terminals
AttributeKey08Number Of Terminal Blocks
AttributeKey09, height_AttribHeight
AttributeKey10Integrated Connection Type
AttributeKey11Cable Cross Section
AttributeKey12Power Consumption In W
AttributeKey13Local Signalling
AttributeKey14, Weight_AttribNet Weight
AttributeKey15Maximum Input Frequency
AttributeKey16Power Dissipation In W
AttributeKey17Quality Labels
AttributeKey18Mounting Support
AttributeKey19Sensor Type
AttributeKey20, width_AttribWidth
AttributeKey21, length_AttribDepth
AttributeKey22Safety Level
AttributeKey23Rohs Exemption Information
AttributeKey24Mercury Free
AttributeKey25Environmental Disclosure
AttributeKey26Sustainable Offer Status
AttributeKey27Pvc Free
AttributeKey28Reach Regulation
AttributeKey29California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey30Reach Free Of Svhc
AttributeKey31Weee
AttributeKey32China Rohs Regulation
AttributeKey33Circularity Profile
AttributeKey34Eu Rohs Directive
AttributeKey35Product Certifications
AttributeKey36Standards
AttributeKey37Pollution Degree
AttributeKey38Ambient Air Temperature For Operation
AttributeKey39Electromagnetic Compatibility
AttributeKey40Shock Resistance
AttributeKey41Vibration Resistance
AttributeKey42[Uimp] Rated Impulse Withstand Voltage
AttributeKey43Ip Degree Of Protection
AttributeKey44Ambient Air Temperature For Storage
AttributeKey45Service Life
AttributeKey46Relative Humidity
AttributeKey47Overvoltage Category
AttributeKey48Insulation
DimensionUnitmm
Extra Product NameSpeed monitoring 2 Proximity sensor expansion module with screw term | Mayer Electric
UPC3606480748912
Weight0.23
WeightUnitkg
depth, length22.5
height99.0
jsonUrlData/Product/SQUARE-D-Speed-monitoring-2-Proximity-sensor-expansion-module-with-screw-term-3606480748912
jsonUrlData25f3daee2-9f45-4be9-b35b-aeea0058836c
moq, multiple, tierMinQty11
MPN, SKUSQDXPSMCMEN0200
qtyInStock0
tierPrice1375.83
width114.5

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXPSMCMEN0200111 @ $375.83
