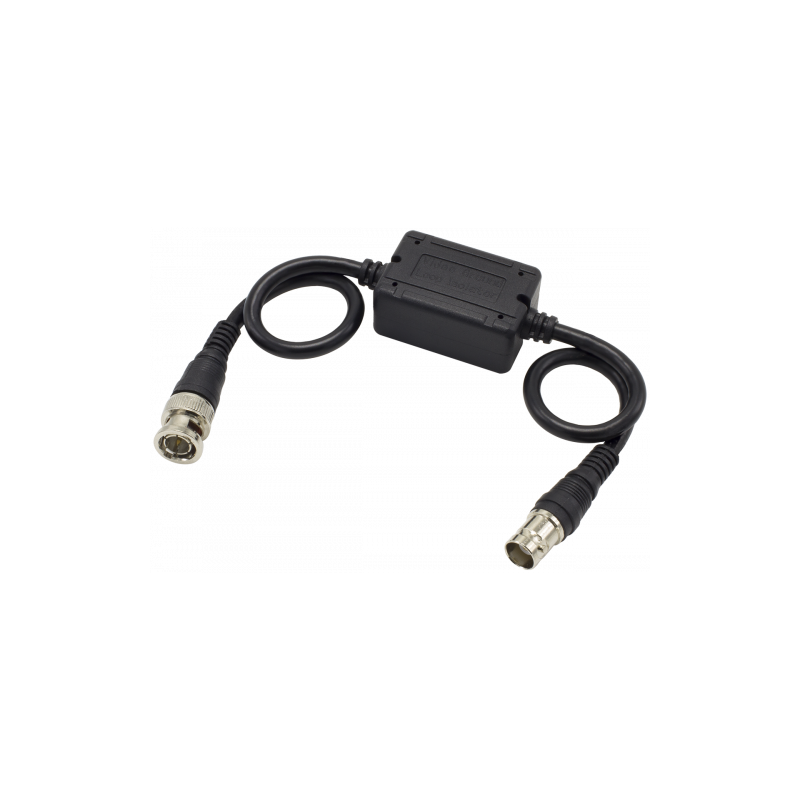

Seco-Larm 4-In-1 Ground Loop Isolator, Compatible With Tvi, Cvi, Ahd, And Analog Signals, Reduces Ground Loop Interference, Built-In Surge Protection, Bnc Terminals, Passive Operation - VG-1C12YQ

Seco-Larm VG-1C12YQ 4-in-1 Enforcer HD Ground Loop Isolator; TVI/CVI/AHD/Analog Compatible; Reduces Ground Loop Interference; Built-in Surge Protection; Passive Operation, No External Power Required<br><br> The ENFORCER 4-in-1 HD Ground Loop Isolator is a passive device that helps to reduce ground loop interference caused by a difference in ground potential. Ground loop isolators can be deployed in new installations or added to existing installations. Compatible with TVI, CVI, AHD, and Analog signals, reduces ground loop interference, built-in surge protection, BNC terminals, passive operation<br><br> Key Features:<br> - TVI/CVI/AHD/Analog compatible<br> - Reduces ground loop interference<br> - BNC terminals for easy installation<br> - Built-in surge protection<br> - Prevents video-signal distortion, picture tearing, cross talk, and other picture quality problems<br> - Passive operation - No external power required<br> - Use with standard BNC coax cables or with 4-in-1 HD video baluns<br><br> Specifications:<br> - Bandwidth: Video DC to 40MHz<br> - Insertion Loss: ≤0.5dB<br> - Isolation Voltage: 800VDC (min.)<br> - Insulation Resistance: ≥100MΩ<br> - Surge Protection: 4kV, 10/700μs IEC 61000-4-5/1955<br> - Connector-In: BNC Male<br> - Connector-Out: BNC Female<br> - Impedance: 75Ω (BNC-to-BNC)<br> - Cable Length: 7.87 inches (200mm) each side<br> - Material: ABS plastic<br> - Operating Temperature: -4°~140° F (-20°~60° C)<br> - Overall Dimensions: 1.68 x 1.12 x 1.18 inches<br> - Weight: 0.12 pounds
