Kyocera

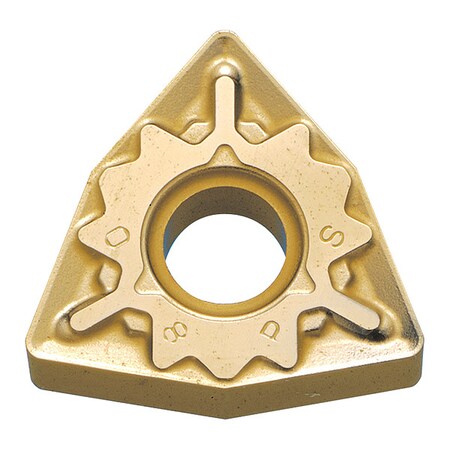

<ul><li>Insert for External Turning, Facing, Boring, Internal Facing</li><li>6 Cutting Edges</li><li>Thickened alumina with good thermal resistance (twice as thick as conventional coating) and specialized post-coating process prevents adhesion.</li><li>Application: General to interrupted machining of steel</li></ul><p>Product Details:</p><ul><li>Insert Style: WNMG</li><li>Insert Size: 433</li><li>Chipbreaker: PS</li><li>Insert Grade: CA025P</li><li>Material: Carbide</li><li>Material Grade: Micro Columnar</li><li>Coating Process: CVD</li><li>Coating / Composition: TiCn/al2O3/TiN</li><li>[IC] Inscribed Circle (Decimal Inch): 0.5000</li><li>[IC] Inscribed Circle (mm): 12.70</li><li>[S] Thickness (Decimal Inch): 0.1875</li><li>[S] Thickness (mm): 4.76</li><li>[RE] Corner Radius (Decimal Inch): 0.0469</li><li>[RE] Corner Radius (mm): 1.19</li><li>[D1] Hole Diameter (Decimal Inch): 0.2031</li><li>[D1] Hole Diameter (mm): 5.16</li><li>Rake: Negative</li><li>[AN] Relief Angle (Degree): 0</li><li>Included Angle (Degree): 80</li><li>Primary Workpiece Material: Steel</li><li>Shape: Trigon</li><li>Insert Hand: Neutral</li><li>Insert Holding Method: Screw</li><li>Number of Cutting Edges: 6</li><li>Application: External Turning, Facing, Boring, Internal Facing</li><li>Usage Classification: Light Interruption</li><li>Hole (Yes/No): Yes</li><li>Cutting Range: Medium-Roughing</li><li>Compatible Holders (Partial): DWLNR...-4..., DWLNL...-4..., DWLNR...-08, DWLNL...-08, MWLNR...-4…, MWLNL...-4…, PWLNR...-08, PWLNL...-08, WWLNR...-08, WWLNL...-08, ...-DWLNR4, ...-DWLNL4, ...-DWLNR08 -..., ...-DWLNL08 -..., ...-PWLNR08 -..., ...-PWLNL08 -..., ...-WWLNR08 -..., ...-WWLNL08 -...</li></ul>CA025P Product Brochure
