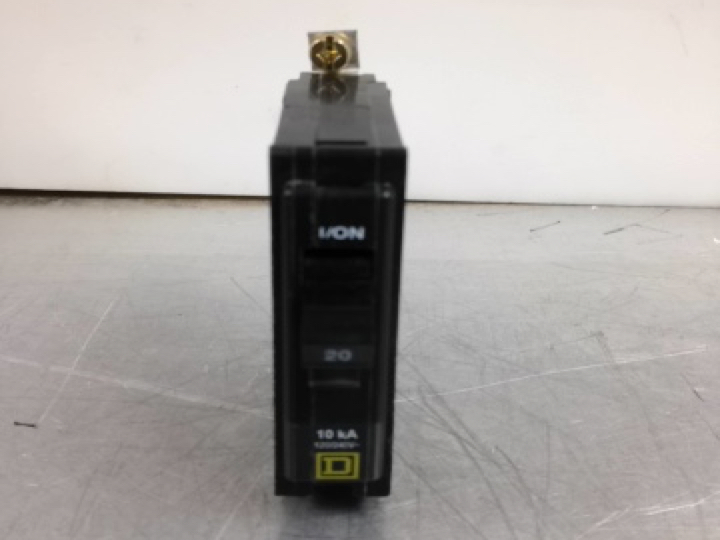

Square D By Schneider Electric Miniature Circuit Breaker 120/240V 20A - QOB120HID

<p>Bolt On Circuit Breaker, 20 Amps, Number of Poles 1, Circuit Breaker Type High Intensity Discharge, AC Voltage Rating 120/240VAC, DC Voltage Rating 48VDC, For Use With Square D NQOD Panelboards, Series QOB, Terminal Connection Screw Clamp, Max. AIR Rating 10 kA, Frame Size 100A/QO, Min. Wire Size 14 AWG, Max. Wire Size 8 AWG, Length 3.00 In., Width 0.75 In., Depth 2.91 In., Standards UL Listed, CSA Certified</p><p><b>Specification</b><ul><li><b>Depth</b>: 2.91"</li><li><b>Max. AIR Rating</b>: 10 kA</li><li><b>Amps</b>: 20</li><li><b>Min. Wire Size</b>: 14 AWG</li><li><b>DC Voltage Rating</b>: 48VDC</li><li><b>Item</b>: Bolt On Circuit Breaker</li><li><b>Mounting</b>: Bolt on</li><li><b>Standards</b>: UL listed, CSA certified</li><li><b>Circuit Breaker Type</b>: High Intensity Discharge</li><li><b>Frame Size</b>: 100A/QO</li><li><b>Length</b>: 3.00"</li><li><b>For Use With</b>: Square D NQOD Panelboards</li><li><b>Width</b>: 0.75"</li><li><b>Number of Poles</b>: 1</li><li><b>Terminal Connection</b>: Screw Clamp</li><li><b>AC Voltage Rating</b>: 120/240VAC</li><li><b>Series</b>: QOB</li><li><b>Max. Wire Size</b>: 8 AWG</li></ul></p>

This bolt-on circuit breaker features a Visi-Trip indicator and is designed for use with NQ or NQOD panelboards.<br /><br /> Item: Bolt On Circuit Breaker<br /> Amps: 20<br /> Number of Poles: 1<br /> Circuit Breaker Type: High Intensity Discharge<br /> AC Voltage Rating: 120/240VAC<br /> DC Voltage Rating: 48VDC<br /> For Use With: Square D NQOD Panelboards<br /> Series: QOB<br /> Terminal Connection: Screw Clamp<br /> Max. AIR Rating: 10 kA<br /> Frame Size: 100A/QO<br /> Min. Wire Size: 14 AWG<br /> Max. Wire Size: 8 AWG<br /> Length: 3.00"<br /> Width: 0.75"<br /> Depth: 2.91"<br /> Standards: UL Listed, CSA Certified<br />
