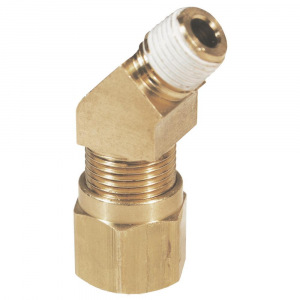

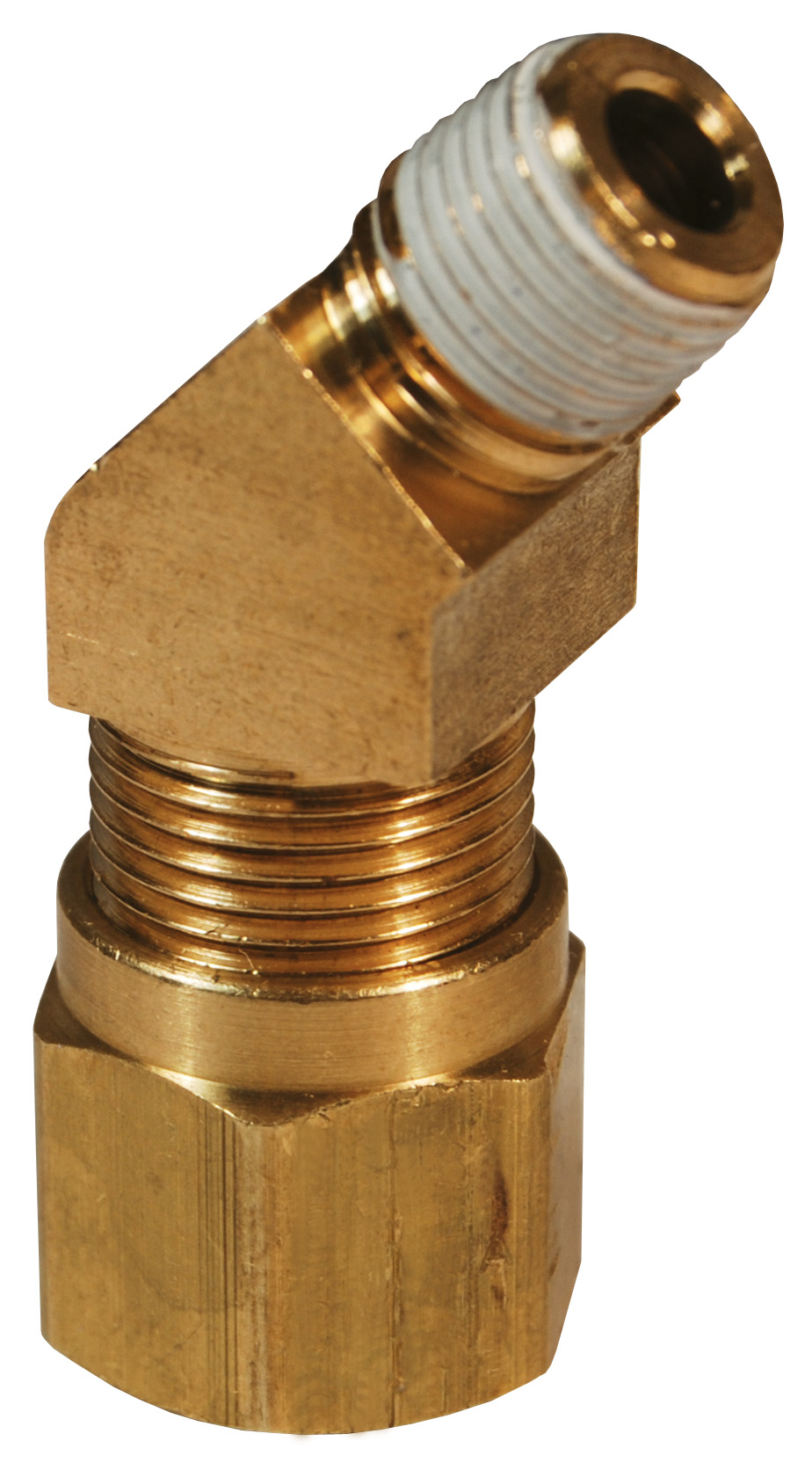

Order 79NAB106VS by Dixon Valve Air Brake 45 deg Elbow - US Mega Store

<p><strong>Applications</strong></p><ul><li>Designed for use in air brake systems or cab controls</li></ul><p><strong>Use</strong></p><ul><li>Utilize ribbed sleeve for compression and positive grip</li><li>Compatible tubing: SAE J844 type A and B</li></ul><p><strong>Specifications</strong></p><ul><li>Meets D.O.T FMVSS 571.106, SAE J1131 and SAE J2494</li><li>Ref. SAE 100302 BA</li></ul><p><strong>Features</strong></p><ul><li>Positive grip</li></ul><p><strong>Construction</strong></p><ul><li>Machined from CA260, CA345 or CA377 brass</li><li>Pre-applied thread sealant</li><li>Thread sealant may be white or burnt orange</li></ul><p><strong>Installation</strong></p><ul><li>Cut tubing squarely- maximum of 15&#176; angle allowable.</li><li>Check that port or mating part is clean and free of debris.</li><li>Insert tubing into fittings until it bottoms on seat.</li><li>Tighten nut with wrench until one thread remains visible on the fittings body; (this will allow for a number of remakes) or, the nut should be screwed down finger tight, then wrench-tightened according to the tube size used.</li></ul><p><strong>Safety notes</strong></p><ul><li>WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.</li></ul>
