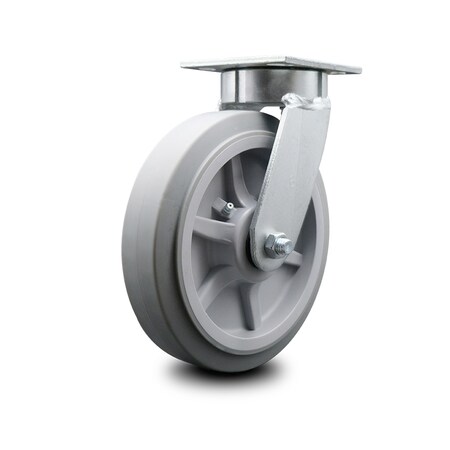

8 Inch Kingpinless Thermoplastic Rubber Wheel Swivel Top Plate Caster SCC

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioService Caster
Attribute008
Attribute012
Attribute02Bright Zinc Plated Finish
Attribute03Top Plate
Attribute04, Model, ModelNumber, Model_numberSeries#KP30
Attribute052-5/8" x 3-5/8" to 3" x 3"
Attribute064" x 4-1/2"
Attribute07-20 degrees F to 180 degrees F
Attribute08Swivel caster
Attribute09600
Attribute109-1/2"
Attribute1175A
Attribute12Thermoplastic Rubber on Polyolefin
Attribute13, countryOfOriginUnited States
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02Finish
AttributeKey03Caster Mounting Type
AttributeKey04Series
AttributeKey05Plate Caster Bolt Hole Pattern
AttributeKey06Plate Size
AttributeKey07Caster Temp. Range
AttributeKey08Type
AttributeKey09Capacity (Lb.)
AttributeKey10, height_AttribMounting Height
AttributeKey11Durometer
AttributeKey12Material
AttributeKey13Country of Origin (subject to change)
DimensionUnitinch
Extra Product Name8 Inch Kingpinless Thermoplastic Rubber Wheel Swivel Top Plate Caster SCC
WeightUnitlbs
diameter, length, Decimal_value8.0
extendedLead26
extendedQty-2
height9.5
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
MPN, PartNumber, Part_numberSCC-KP30S820-TPRRF
qtyInStock0
tierPrice1127.36
urlhttps://www.zoro.com/service-caster-8-inch-kingpinless-thermoplastic-rubber-wheel-swivel-top-plate-caster-scc-scc-kp30s820-tprrf/i/G405429748/
width2.0
ASINB08KFPFCWW B08KHCYMR1
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB08KFPFCWW
Bullet_pointBrake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #KP30 Thermoplastic Rubber Flat Tread casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height. Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. Weight capacity ranges from 300 lbs on the 4” caster, 350 lbs on the 5”, 500 lbs on the 6” and 600 lbs. on the 8”.
ClassificationId511228
ColorSwivel - No Brake - Gray
Currency, CurrencyCodeUSD
DisplayNameHardware
Externally_assigned_product_identifier, Identifier0011586558861 011586558861
FetchTime1686192187 1704415584
Height1000 500 75
IdentifierTypeEAN UPC
IsBrandQueryTrue
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleKingpinless Thermo Rubber Flat Tread Swivel Top Plate Caster w/8' x 2" Gray Wheel - 600 lbs Capacity/Caster - Service Caster Brand
Item_type_keywordplate-casters
KeywordSCC-KP30S820-TPRRF-SLB-BSL-2-BSL-2
Linkhttps://m.media-amazon.com/images/I/31tZMTp42jL._SL75_.jpg https://m.media-amazon.com/images/I/31tZMTp42jL.jpg https://m.media-amazon.com/images/I/41X9cZxNJrL._SL75_.jpg https://m.media-amazon.com/images/I/41X9cZxNJrL.jpg https://m.media-amazon.com/images/I/41bcBvimKOL.jpg https://m.media-amazon.com/images/I/51+HNen50BL.jpg https://m.media-amazon.com/images/I/510Boo453WL._SL75_.jpg https://m.media-amazon.com/images/I/510Boo453WL.jpg https://m.media-amazon.com/images/I/51ViUzr1QrL._SL75_.jpg https://m.media-amazon.com/images/I/51ViUzr1QrL.jpg https://m.media-amazon.com/images/I/51zL-ecbp+L._SL75_.jpg https://m.media-amazon.com/images/I/51zL-ecbp+L.jpg https://m.media-amazon.com/images/I/615gbk4UDpL.jpg https://m.media-amazon.com/images/I/61PP01j6zlL.jpg https://m.media-amazon.com/images/I/71bNmgWiyEL.jpg
List_price0.0
Load_capacity600.0
Marketplace_idATVPDKIKX0DER
Material, MaterialTypeThermoplastic Rubber Tread on Polyolefin Core
Mounting_typePlate Mount
Name, ThemeSIZE_NAME/COLOR_NAME
ParentAsinsB08KHCYMR1
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductTypeINDUSTRIAL_CASTERS
ProductTypeNameWHEEL
Product_descriptionListing is for one (1) Service Caster Series #KP30 swivel caster with a 8" diameter by 2" wide thermoplastic rubber flat tread wheel capable of supporting 600 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series KP30 thermoplastic rubber on polyolefin core flat tread casters. The soft flat tread is made of thermoplastic rubber that is non-marking and non-marring, and on the polyolefin core provides a long lasting, high capacity wheel that is capable of easy rolling under heavy loads. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
Product_site_launch_date2020-09-29T19:18:52.146Z
Size8" Wheel
SkuSERVICE CASTER SCC-KP30S820-TPRRF
Supplier_declared_dg_hz_regulationnot_applicable
TypeCount Swivel VARIATION ean upc
URLhttps://m.media-amazon.com/images/I/31tZMTp42jL._SL75_.jpg
Unitinches pounds
Unit_count1.0
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04
VariationThemecolor size
WebsiteDisplayGroupbiss_basic_display_on_website
Width1000 2.0 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG405429748111 @ $127.36

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Kingpinless Thermo Rubber Flat Tread Swivel Top Plate Caster w/8' x 2" Gray Wheel - 600 lbs Capacity/Caster - Service Caster Brand
Brand: Service Caster
Listing is for one (1) Service Caster Series #KP30 swivel caster with a 8" diameter by 2" wide thermoplastic rubber flat tread wheel capable of supporting 600 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series KP30 thermoplastic rubber on polyolefin core flat tread casters. The soft flat tread is made of thermoplastic rubber that is non-marking and non-marring, and on the polyolefin core provides a long lasting, high capacity wheel that is capable of easy rolling under heavy loads. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
Details
  • These Service Caster Series #KP30 Thermoplastic Rubber Flat Tread casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 300 lbs on the 4” caster, 350 lbs on the 5”, 500 lbs on the 6” and 600 lbs. on the 8”.
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeWHEEL
ModelSeries#KP30
Part numberSCC-KP30S820-TPRRF
Items per pack1
LabelService Caster
ManufacturerService Caster
