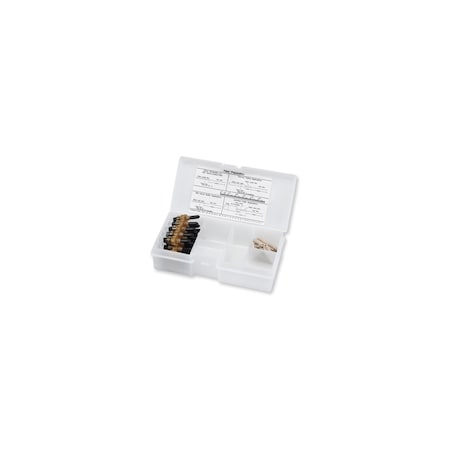

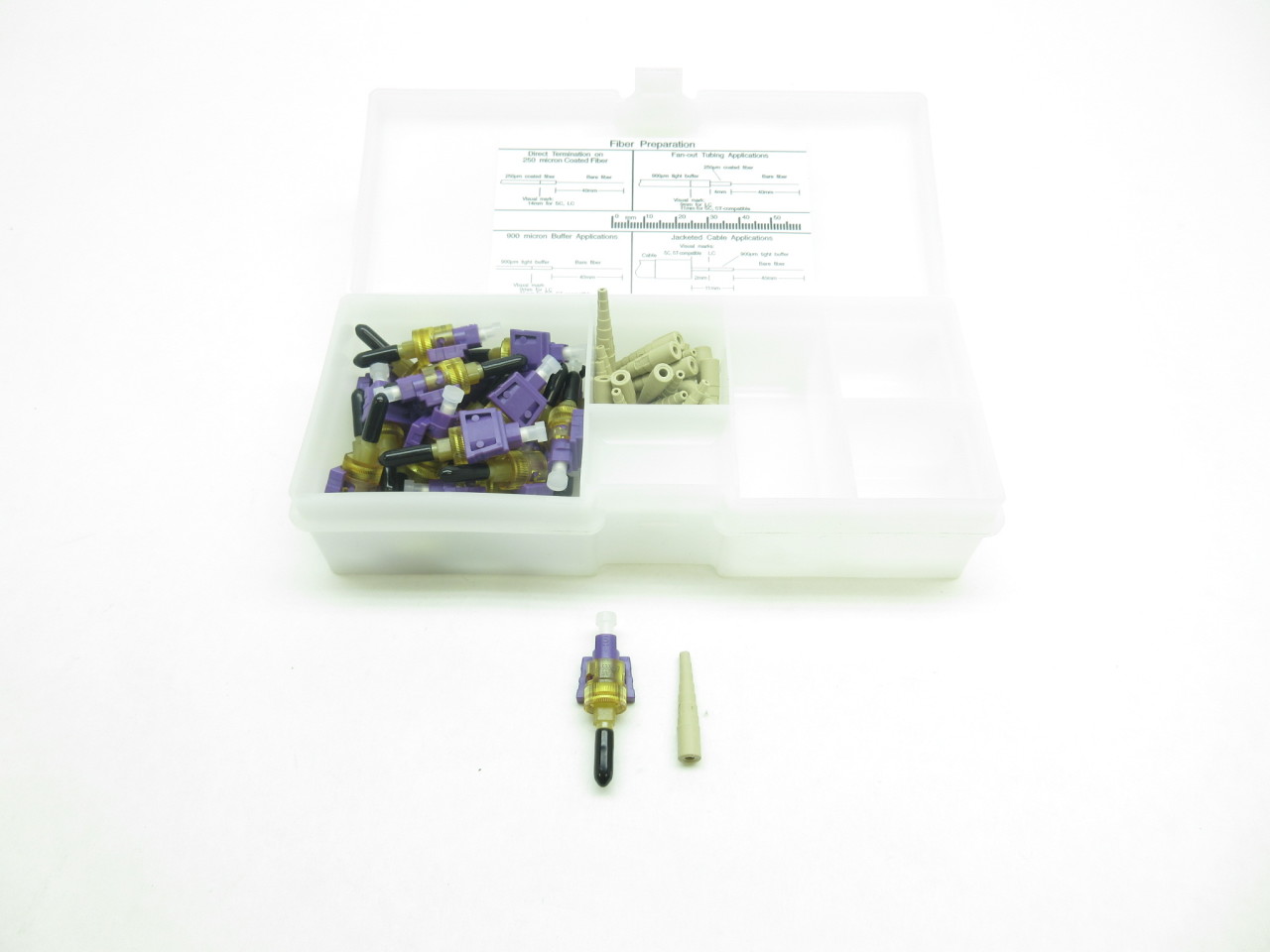

Corning Cable Systems St 62.5/125 Unicam Connector Pretium Ceramic Ferrule Organizer Pack 25/pk - 95-000-51-Z

<UL> <LI>Organizer Pack of 25 Connectors <LI>Network connector <LI>ST Multimode (M) <LI><b>Pretium Performance</b> Fiber Connector </UL> <p> The UniCam connector is the ideal solution for all your field-installable multimode and single-mode fiber optic connector requirements. The quick installation reduces the total installed cost of connectorization, making the UniCam connector cost-effective for all fiber applications, from the main cross-connect to the workstation. The UniCam connector can best be described as a mini pigtail. It incorporates a factory-installed fiber stub that is fully bonded in the ferrule. The other end is precisely cleaved and placed into the patented alignment mechanism of Corning's mechanical splice. Both the field fiber and fiber stub are fully protected from environmental factors. Unlike other no-epoxy, field-installable connectors, the UniCam connector requires no polishing.

Corning Cable Systems UniCam&reg; High-Performance Connectors offer best-in-class optical performance in a fast, easy field-termination solution. These high-precision connectors guarantee exceptional insert loss – 0.1 dB typical/0.5 dB maximum per connector pair for multimode, 0.2 dB typical/0.5 dB maximum per connector pair for single-mode. Installation of an LC, SC, or ST&reg; Compatible Connector can be accomplished in about 45 seconds with the UniCam High-Performance Tool Kit. The lightweight, handheld installation tool and the high-performance cleaver virtually eliminate human variability from installation, ensuring terminations are right, the first time, every time. This kit was designed with consideration for the network installers, from the cleaver, with its integrated fiber scrap bin and dual-clamp precision hold, to the installation tool, with its immediate go/no-go feedback signal. Installation is as easy as strip, clean, cleave, cam and crimp, with exceptional optical performance guaranteed. Every UniCam Connector is guaranteed to meet the published specification at the time of installation or Corning Cable Systems will replace it.
