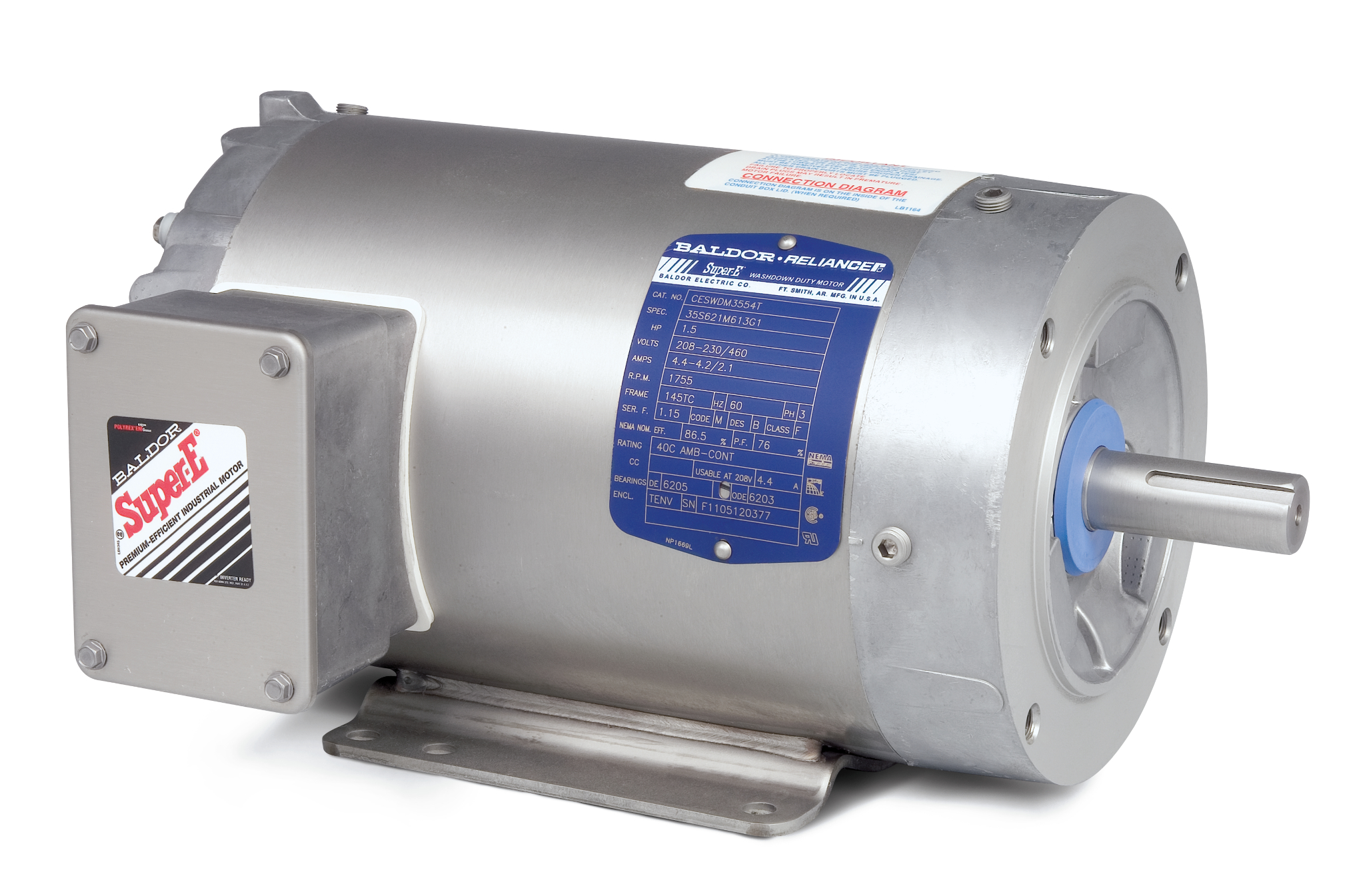

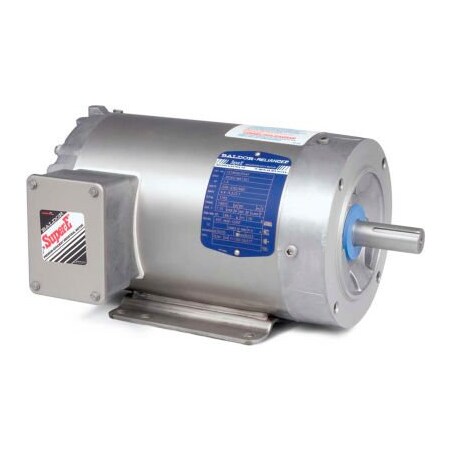

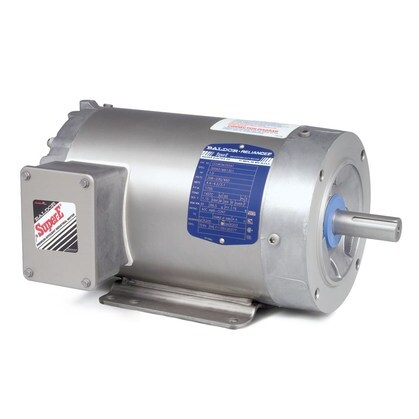

Baldor CESWDM3546

THIS LISTING IS FOR ( 1 ) PIECE: CESWDM3546 - ABB - BALDOR - 1HP,1745RPM,3PH,60HZ,56C,3524M,TENV,F1,N - NEW!

208-230/460 Volts1.00 hp Output1800 RPMThree PhaseTENV Enclosure56C Frame Size1.40 A FL Amps85.5 % FL EfficiencyC-Face Drive End Flange TypeMounting: Foot Mounted

Baldor Electric, CESWDM3546, 1HP, 1745RPM, 3PH, 460V;230V;208V, 56C Frame, C-Face Flange, Foot Mount, TEFC, Paint Free Washdown Duty Motor

Baldor CESWDM35461HP 1740RPM 3PH 60HZ 56C 3524M TENVF1

Pressure Washer; 1HP; 56C Frame Size; 1800 Sync RPM; 208-230/460 Voltage; AC; TENV Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; C-Face and Foot Mounted; Base; 5/8 Shaft Diameter; 3-1/2" Base to Center of Shaft; 12.07" Overall Length"

<p><ul><li>Moisture-resistant insulation system</li><li>Sealed ball bearings with moisture-resistant grease</li><li>Rotating non-contact labyrinth seal on output shaft extension</li><li>Neoprene gaskets</li><li>Special processed cast endplates</li><li>300 Series stainless steel motor frame, base, shaft and hardware</li><li>Applications: Food processing, packaging and other outdoor applications, severe environments where motors are washed on a regular basis</li></ul></p> ,<p><b>Specifications: </b><ul><li>Motor Category:-General Purpose Motor (Paint Free) </li><li> Motor Phase:-3 ph </li><li> Motor Horsepower:-1.00 hp, 1 hp </li><li> Synchronous RPM:-1800 rpm </li><li> Motor Supply Voltage:-208-230/460 V </li><li> Frame Size:-56C </li><li> Enclosure Type:-TENV (Totally Enclosed Non-Ventilated) </li><li> Frequency Rating:-60 Hz </li><li> Duty / Condition Type:-Continuous Duty </li><li> Mounting Type:-Footed/C-Face Flange </li><li> Full Load Current:-1.50 A </li><li> Full Load Efficiency:-85.50 % </li><li> Amps @ Voltage:-3.0 A @ 208 V; 2.9 A @ 230 V; 1.5 A @ 460 V </li><li> Volts @ Frequency:-208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz </li><li> Shaft Diameter:-0.63 in </li><li> Overall Length (C-Dimension):-12.06 in </li><li> Service Factor:-1.15 </li><li> Frame Material:-Stainless Steel </li><li> Insulation Class:-F </li><li> IP Rating:-55 </li><li> Standards Met:-UR, CSA EEV, CSA </li><li> Harmonization Code:-8501.51.6040 </li><li> Weight:-40.00 lbs </li><li> Applications:-Food processing, packaging and outdoor applications. </li><li> Additional Details:-Sealed ball bearings with moisture-resistant grease. Rotating noncontact labyrinth seal on output shaft extension. Moisture resistant insulation system. Neoprene gaskets. Special processed cast endplates. 300 series stainless steel motor frame, base, shaft and hardware. No exterior paint. </li></ul></p>
