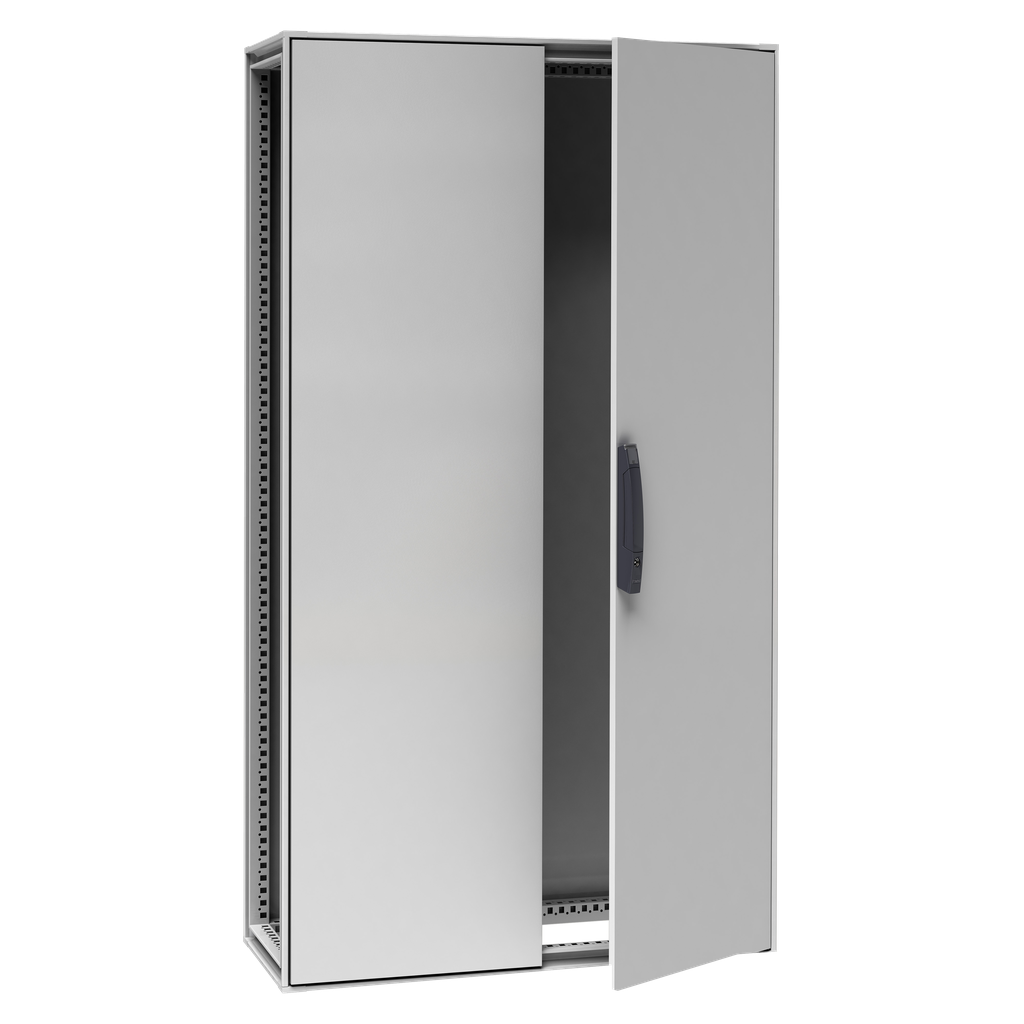

Spacial SF enclosure with mounting plate - assembled - 2000x800x600 mm | Mayer Electric

SQUARE D . SQDNSYSF208602DP

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00floor-standing
Attribute01suitable enclosure
Attribute02Spacial SF
Attribute032 sliding rails || 4 mounting plate bracket || 1 structure || 1 rear panel || 1 roof || 1 mounting plate || 2 door || 1 locking system with handle || 1 blocking system left door
Attribute042000 mm
Attribute05600 mm
Attribute06multi-purpose
Attribute07800 mm
Attribute08Spacial
Attribute0918 months
Attribute10sides of enclosure || front || rear
Attribute11door by screws hinge || mounting plate by screws mounting plate bracket || rear panel by screws || roof by screws || mounting plate bracket by screws || sliding rail by screws
Attribute12without gland plate
Attribute13frame galvanised steel || uprights galvanised steel || door sheet steel || panels sheet steel || hinge zamak || handle polyamide 6 with 30 % fibre glass
Attribute14epoxy-polyester powder
Attribute15, colorenclosure Gray RAL 7035) || handle Black RAL 9005)
Attribute16Solid front
Attribute174 points lock, handle with 5 mm double bar insert front right door
Attribute18vertical uprights joined with top and bottom frames || panels and doors built into the structure || formed from a single section || perforated structure with a pitch of 25 mm
Attribute19147.019 kg
Attribute20left 120 ?) || right 120 ?)
Attribute21plain
Attribute22front face 2
Attribute23Product out of China RoHS scope. Substance declaration for your information.
Attribute24, Attribute25, Attribute30Yes
Attribute26ENVPEP110923EN
Attribute27Green Premium product
Attribute28Pro-active compliance (Product out of EU RoHS legal scope)
Attribute29Free of Substances of Very High Concern above the threshold
Attribute31IK10 IEC 62262
Attribute32NEMA 3R/12
Attribute33IEC 62208
Attribute34IP55 IEC 60529
AttributeKey00Enclosure Mounting
AttributeKey01Product Or Component Type
AttributeKey02Product Name
AttributeKey03Device Composition
AttributeKey04, height_AttribEnclosure Nominal Height
AttributeKey05, length_AttribEnclosure Nominal Depth
AttributeKey06Device Application
AttributeKey07, width_AttribEnclosure Nominal Width
AttributeKey08Range
AttributeKey09Warranty
AttributeKey10Accessibility For Operation
AttributeKey11Removable Parts
AttributeKey12Type Of Gland Plate
AttributeKey13Material
AttributeKey14Surface Finish
AttributeKey15Color
AttributeKey16Door Type
AttributeKey17Lock Type
AttributeKey18Structure Type
AttributeKey19, Weight_AttribNet Weight
AttributeKey20Door Opening Side
AttributeKey21Mounting Plate Description
AttributeKey22Number Of Doors
AttributeKey23China Rohs Regulation
AttributeKey24Rohs Exemption Information
AttributeKey25Mercury Free
AttributeKey26Environmental Disclosure
AttributeKey27Sustainable Offer Status
AttributeKey28Eu Rohs Directive
AttributeKey29Reach Regulation
AttributeKey30Reach Free Of Svhc
AttributeKey31Ik Degree Of Protection
AttributeKey32Nema Degree Of Protection
AttributeKey33Standards
AttributeKey34Ip Degree Of Protection
DimensionUnitmm
Extra Product NameSpacial SF enclosure with mounting plate - assembled - 2000x800x600 mm | Mayer Electric
UPC3606485117706
Weight147.019
WeightUnitkg
height2000.0
jsonUrlData/Product/SQUARE-D-Spacial-SF-enclosure-with-mounting-plate-assembled-2000x800x600-mm-3606485117706
jsonUrlData23c3cbfb6-3352-4104-8202-aeea0056e13e
length600.0
moq, multiple, tierMinQty11
MPN, SKUSQDNSYSF208602DP
qtyInStock0
tierPrice11359.5
width800.0

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDNSYSF208602DP111 @ $1359.50
