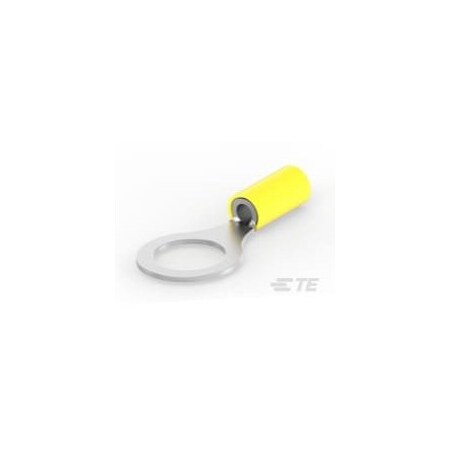

Amp Te Connectivity Terminal, Ring Tongue 1/2In Crimp Yellow - 8-35151-2

Product Overview The PIDG series terminal designed for uniform reliability in the most difficult circuit environments. They consist of a tin-plated copper or tin-plated phosphor bronze body for spring spades, plus a copper and coloured insulation sleeve fitted over a terminal barrel. The specialized design of tool dies and the construction of the terminal allows for uniform insulation thickness under crimping pressure, transmitting this pressure evenly to the centre of the crimping area. The body has serrations for maximum contact and tensile strength. The insulation sleeves and the corresponding tooling are colour-coded by wire-size for easier identification. PIDG terminals have copper sleeve for improved wire insulation support Specific tooling dedicated for different volumes or circumstances is available Stud Size - Metric: M12 rohsCompliant: YES Insulator Colour: Yellow Stud Size - Imperial: 1/2 hazardous: false rohsPhthalatesCompliant: YES Product Range: PIDG Series Conductor Area CSA: 6 usEccn: EAR99 Wire Size AWG Max: 10 Insulator Material: Nylon (Polyamide) productTraceability: Yes-Date/Lot Code distributorStatus: AUTHORIZED SVHC: No SVHC (17-Jan-2023)

Ring Tongue Terminal 10-12AWG 40.49mm 19.05mm Tin Loose Piece

Terminal Shape = Ring Tongue; Receptacle Style = Straight; Body Style = PIDG; Barrel Type = Closed Barrel; Wire/Cable Type = Regular Wire;

TE CONNECTIVITY / AMP - 8-35151-2 - TERMINAL; RING TONGUE 1/2IN CRIMP YELLOW

TERMINAL, RING TONGUE 1/2IN CRIMP YELLOW; Stud Size - Metric:M12; Stud Size - Imperial:1/2"; Wire Size AWG Max:10AWG; Conductor Area CSA:6mm²; Product Range:PIDG Series; Insulator Colour:Yellow; Insulator Material:Nylon (Polyamide) RoHS Compliant: Yes
