Order SFI-100T-1/2-A711T by W.E. Anderson SFI Sight Flow Indicator - US Mega Store

W.E. Anderson . SFI-100T-1/2-A711T

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerW.E. Anderson
Attribute00, Attribute12Compatible fluids
Attribute01, Attribute13Body: brass; Window: tempered glass; Rotor: red UV stabilized PBT; Rotor Pin: 316 stainless steel; Thrust Washers: 300 series stainless steel; Gasket: Buna-N
Attribute02, Attribute14-20 to 200°F (-29 to 93°C)
Attribute03, Attribute15125 psi (8.62 bar)
Attribute04, Attribute16200 SSU
Attribute05, Attribute17SFI Only: 1.5 lb (0.7 kg); with A-711T: 1.8 lb (0.8 kg)
Attribute06, Attribute18-20 to 212°F (-29 to 100°C)
Attribute07, Attribute198 to 28 VDC
Attribute08, Attribute20White Lead: 5 VDC; Green Lead: 8 to 28 VDC equal to supply voltage. Pulsed output with frequency rate proportional to flow rate
Attribute09, Attribute21±5% of F.S
Attribute10, Attribute220 to 100 Hz
Attribute11, Attribute23Black Lead: ground; White Lead: 5 VDC out pulse; Green Lead: 8 to 28 VDC out pulse; Red Lead: 8 to 28 VDC supply
AttributeKey00, AttributeKey12Service
AttributeKey01, AttributeKey13Wetted Materials
AttributeKey02, AttributeKey06, AttributeKey14, AttributeKey18Temperature Limits
AttributeKey03, AttributeKey15Pressure Limits
AttributeKey04, AttributeKey16Viscosity Maximum
AttributeKey05, AttributeKey17, Weight_AttribWeight
AttributeKey07, AttributeKey19Power Requirements
AttributeKey08, AttributeKey20Output Signal
AttributeKey09, AttributeKey21Accuracy
AttributeKey10, AttributeKey22Frequency Output Range
AttributeKey11, AttributeKey23Electrical Termination
CategoryL1Process Control & Automation
CategoryL2Indicators
CategoryL3Flow
CategoryL4W.E. Anderson SFI-100T-1/2-A711T
ConditionNEW
Extra Product NameOrder SFI-100T-1/2-A711T by W.E. Anderson SFI Sight Flow Indicator - US Mega Store
Weight1.5
WeightUnitlbs
moq, multiple, tierMinQty11
MPN, SKUSFI-100T-1/2-A711T
qtyInStock3-4 Weeks Factory Lead Time

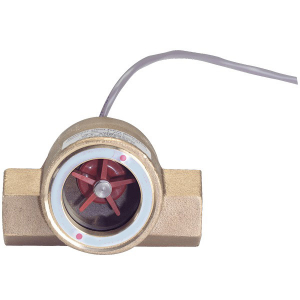

snippet<p><strong>W.E. Anderson, SFI-100T-1/2-A711T, Sight Flow Indicator/Transmitter,1/2", Brass, A-711T Sensor, 2-20GPM </strong> </p> <p>Output for Flow Rate and Totalization </p> <p><strong>The SFI-100T is a low cost and durable flow transmitter </strong> that combines our popular 100 Series Sight Flow Indicator with our A-711T output sensor. The SFI-100T sight flow indicator is constructed of a robust, solid brass body and a tempered glass window. A bright red impeller is featured for great visual indication of flow through the window. The front window can be easily unscrewed to clean out the sight flow indicator. Ideal for outdoor applications, the flow transmitter is weatherproof and unaffected by UV light. </p> <p><strong>The A-711T </strong> output sensor has a VDC output with pulsing for flow totalization and a proportional frequency change for flow rate. For added versatility there are two output choices of 5 VDC or a VDC equal to the input power supplied. The output is compatible with digital rate meters/totalizers and other electronic systems. </p> <p><strong>Product Applications </strong> </p> <ul><li>Monitor chilled or hot water flow </li> <li>Great for use in monitoring water flow in chillers </li> </ul> <p><strong>Features </strong> </p> <ul><li>Output package is easily field replaceable </li> <li>Weatherproof construction </li> <li>UV stablized for outdoor applications </li> <li>There are no magnets in the rotor to attract ferrous materials </li> </ul>
tierPrice1401.5

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comSFI-100T-1/2-A711T13-4 Weeks Factory Lead Time11 @ $401.50
heavydutydepot.comSFI-100T-1/2-A711T111 @ $385.90
MegadepotSFI-100T-1/2-A711T111 @ $385.90
