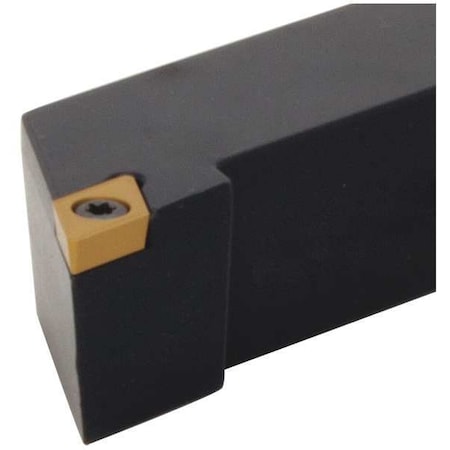

Dorian SDJCR12-3B | Turning Toolholder Dcmt Sdjcr12-3b Rh | 41T867 | Raptor Supplies Worldwide

Technical Specification Item Indexable Turning Toolholder Toolholder Style SDJC Insert Style DCMT Insert Shape 55 Degrees Diamond Overall Length 4-1/2 Shank Width 3/4 Cutting Direction Right Hand Rake Neutral ANSI Code SDJCR123B Cutting Application Turning Cutting Height 3/4 Features Hardened to 44 HRC Head Length 1 Insert Clearance Angle 7 Degrees Insert Holding Type Screw On Insert Inscribed Circle 3/8 Insert Size 32.52 ISO Number SDJCR123B Shank Height 3/4 Shank Material Alloy Steel Side Cutting Edge Angle -3 Degrees This listing is for each. Type : DCMT Holder Rake : Neutral Insert Shape : 55 Degrees Diamond Shank : Square Clamp Screw : TS-4.7-10M1 Torx Wrench : T-15 Style : SDJCR12-3B Item : Indexable Turning Toolholder Insert Size : 32.52 Cutting Direction : Right Hand Overall Length : 4-1/2 in Shank Height : 3/4 in ANSI Code : SDJCR123B Head Length : 1 in Toolholder Style : SDJC Cutting Application : Turning Insert Clearance Angle : 7 Degrees Insert Inscribed Circle : 3/8 in Cutting Height : 3/4 in Insert Style : DCMT Insert Holding Type : Screw On ISO Number : SDJCR123B Side Cutting Edge Angle : -3 Degrees Shank Material : Alloy Steel Features : Hardened to 44 HRC Shank Width : 3/4 in Country of Origin (subject to change) : United States
