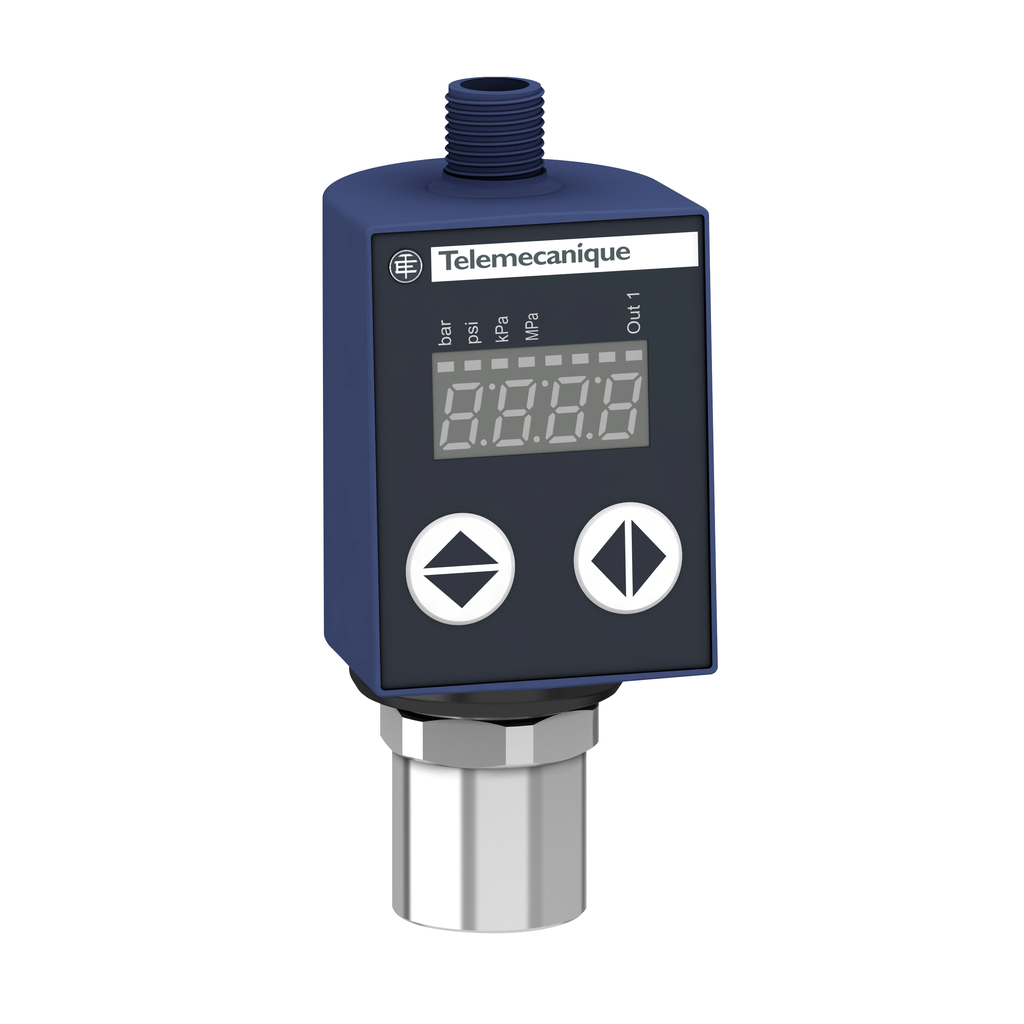

Electronic pressure sensors, Pressure sensors XM, XMLR 25 bar, 1/4" 18 NPT, 24 VDC, 4...20 mA, NPN, M12 | Mayer Electric

SQUARE D . XMLR025G1N26

Gallery

Attributes

Brand name, Manufacturer nameSQUARE D
ManufacturerSQUARE D Schneider Electric
Attribute00pressure transmitter
Attribute0125 bar || 362 psi
Attribute02fresh water 0-80 ?C) || air -20-80 ?C) || hydraulic oil -20-80 ?C) || refrigeration fluid -20-80 ?C)
Attribute03OsiSense XM
Attribute04pressure transmitter with 1 switching output
Attribute05electronic pressure sensors
Attribute0610 MPa || 100 bar || 1450 psi
Attribute0724 V DC SELV 17-33 V)
Attribute0810 MPa || 1450 psi || 100 bar
Attribute09XMLR
Attribute101/4" - 18 NPT (female)
Attribute11male connector M12, 4 pins
Attribute12NO/NC programmable
Attribute13100 mm
Attribute14analogue + discrete
Attribute15fast 50 ms || normal 200 ms || slow 600 ms
Attribute16300 ms
Attribute174...20 mA
Attribute182 V
Attribute19fixed differential
Attribute20for light ON when switch is actuated 1 LED (yellow)
Attribute2110000000 cycles
Attribute22+/- 0.1 % of measuring range/?C
Attribute230...50 s in steps of 1 second
Attribute24susceptibility to electromagnetic fields 10 V/m 80...2000 MHz EN/IEC 61000-4-3 || immunity to conducted RF disturbances 10 V 0.15...80 MHz EN/IEC 61000-4-6 || surge immunity test 1 kV EN/IEC 61000-4-5 || electrical fast transient/burst immunity test 2 kV EN/IEC 61000-4-4 || electrostatic discharge immunity test 8 kV air, 4 kV contact EN/IEC 61000-4-2
Attribute25316L stainless steel || polyacrylamide
Attribute26reverse polarity || overload protection || overvoltage protection || short-circuit protection
Attribute27250 mA
Attribute282-25 bar || 0.2-2.5 MPa || 29-362 psi
Attribute29+/- 0.03 % of measuring range/?C
Attribute3018.1-352 psi || 1.25-24.2 bar || 0.125-2.42 MPa
Attribute3141 mm
Attribute324 digits 7 segments
Attribute33polyester
Attribute34any position, but disposals can falsified the measurement in case of upside down mounting
Attribute350.5 kV DC
Attribute3642 mm
Attribute37ceramic || 316L stainless steel || fluorocarbon FKM (Viton)
Attribute380.212 kg
Attribute3910.9 psi || 75 kPa || 0.75 bar
Attribute40solid state NPN, NO/NC programmable
Attribute41, Attribute42, Attribute46Yes
Attribute43Pro-active compliance (Product out of EU RoHS legal scope)
Attribute44Free of Substances of Very High Concern above the threshold
Attribute45Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute47EAC || cULus
Attribute48-20-80 ?C
Attribute49-40-80 ?C
Attribute50EN/IEC 61326-2-3 || UL 61010-1
Attribute5150 gn EN/IEC 60068-2-27
Attribute52CE
Attribute5320 gn 10-2000 Hz)EN/IEC 60068-2-6
Attribute54IP65 conforming to EN/IEC 60529 || IP67 conforming to EN/IEC 60529
AttributeKey00Pressure Sensor Type
AttributeKey01Pressure Sensor Size
AttributeKey02Controlled Fluid
AttributeKey03Range Of Product
AttributeKey04Pressure Switch Type Of Operation
AttributeKey05Product Or Component Type
AttributeKey06Maximum Permissible Accidental Pressure
AttributeKey07[Us] Rated Supply Voltage
AttributeKey08Destruction Pressure
AttributeKey09Device Short Name
AttributeKey10Fluid Connection Type
AttributeKey11Electrical Connection
AttributeKey12Contacts Type And Composition
AttributeKey13, height_AttribHeight
AttributeKey14Type Of Output Signal
AttributeKey15Display Response Time Type
AttributeKey16Maximum Delay First Up
AttributeKey17Analogue Output Function
AttributeKey18Maximum Voltage Drop
AttributeKey19Scale Type
AttributeKey20Local Signalling
AttributeKey21Mechanical Durability
AttributeKey22Drift Of The Zero Point
AttributeKey23Time Delay Range
AttributeKey24Electromagnetic Compatibility
AttributeKey25Housing Material
AttributeKey26Protection Type
AttributeKey27Maximum Switching Current
AttributeKey28Adjustable Range Of Switching Point On Rising Pressure
AttributeKey29Drift Of The Sensitivity
AttributeKey30Adjustable Range Of Switching Point On Falling Pressure
AttributeKey31, width_AttribWidth
AttributeKey32Display Type
AttributeKey33Front Material
AttributeKey34Operating Position
AttributeKey35[Uimp] Rated Impulse Withstand Voltage
AttributeKey36, length_AttribDepth
AttributeKey37Materials In Contact With Fluid
AttributeKey38, Weight_AttribNet Weight
AttributeKey39Minimum Differential Travel
AttributeKey40Discrete Output Type
AttributeKey41Rohs Exemption Information
AttributeKey42Mercury Free
AttributeKey43Eu Rohs Directive
AttributeKey44Reach Regulation
AttributeKey45California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey46Reach Free Of Svhc
AttributeKey47Product Certifications
AttributeKey48Ambient Air Temperature For Operation
AttributeKey49Ambient Air Temperature For Storage
AttributeKey50Standards
AttributeKey51Shock Resistance
AttributeKey52Marking
AttributeKey53Vibration Resistance
AttributeKey54Ip Degree Of Protection
DimensionUnitmm
Extra Product NameElectronic pressure sensors, Pressure sensors XM, XMLR 25 bar, 1/4" 18 NPT, 24 VDC, 4...20 mA, NPN, M12 | Mayer Electric
UPC3389119611015 785901288305
Weight0.212 0.46
WeightUnitkg
depth, length42.0
height100.0
jsonUrlData/Product/SQUARE-D-Electronic-pressure-sensors-Pressure-sensors-XM-XMLR-25-bar-1-4-18-NPT-24-VDC-4-20-mA-NPN-M12-785901288305
jsonUrlData2095a407c-b886-4e7a-8f88-aeea0058747f
moq, multiple, tierMinQty1, Case, NumberOfItems, PackageQuantity1
MPN, Part Number, Model, PartNumber, SkuXMLR025G1N26
qtyInStock0
SKUSQDXMLR025G1N26
tierPrice1389.37
width41.0
EAN, EANList, UPCList785901288305
Product GroupBISS
ASIN, AsinB00CONBGPY
Amount329.00
BindingMisc.
BrandTELEMECANIQUE SENSORS Telemecanique
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 306506011 306528011 306588011
CurrencyCodeUSD
FeaturePressure Sensor - IEC
FetchTime1535637522 1570946553 1658718929 1676186648 1693083384
Height12 75
Label, Man, Publisher, StudioSchneider Electric
Length12
MaterialTypeplastic stainless steel
ProductGroupBISS BISS Basic
ProductTypeNameBEARINGS_AND_BUSHINGS
ReleaseDate2017-05-15
TitleTelemecanique XMLR025G1N26 Pressure Sensor, 0-25 bar, 1 DC Switching/Solid-State Output, NPN, DC 4-20 mA Output, 1/4"-18" NPT Female Connection
URLhttp://ecx.images-amazon.com/images/I/313c0FIB19L._SL75_.jpg http://ecx.images-amazon.com/images/I/41kgzSaG7XL._SL75_.jpg https://m.media-amazon.com/images/I/41kgzSaG7XL._SL75_.jpg
Unitsinches pixels pounds
Width12 45 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXMLR025G1N26111 @ $389.37
Digi-Key17178229111 @ $395.03
Crescent Electric Supply CoXMLR025G1N2611
gordonelectricsupply.comXMLR025G1N261This Item Usually Ships in 3-5 Days11 @ $366.68
RadwellXMLR025G1N26111 @ $370.00
MRO Supply522231311
