SunSource | G300-D-AL DIXON VALVE & COUPLING Hose and Fittings | SunSource.com

Easy to use with liquids. To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

WARNING : Under no circumstances should cam and groove couplings be used for compressed air or steam service.<br><br>Dixon Sanitary Cam and Groove Global Type D Adapters are Female Cam Coupler x Female NPT fittings for transitioning to a camlock connection. These Type D camlock fittings are available from 1/2" up to 4" in A380 Permanent Mold Aluminum or 316 Investment Cast Stainless Steel.<br><br>Dixon camlock fittings are all precision machined to rigid tolerances and designed to be interchangeable with all products produced to Commercial Item Description A-A-59326B. However, no standard exists for the 1/2" and 8" fittings and generally these will not interchange with other manufacturers. All couplers, regardless of casting material, utilize durable stainless steel cam arm pins that will not rust or bind. The couplers also feature a recess to hold the gasket firmly in place, ensuring proper placement and eliminating any chance for leakage.<br><br>Cam and Groove fittings are designed for use as a hose coupling that allows quick connect capabilities to increase operator productivity. To secure a connection, simply slide the adapter into the coupler, and with normal hand pressure press the cam levers down. Uncoupling is just as simple, just lift the cam arms and remove the adapter. Dixon Sanitary also offers Dust Plugs and Dust Caps to keep hoses and process tubes clean while fittings are disconnected.<br><br>Dixon Cam and Groove Fittings Features:<br><br>- Precision Machined<br>- Rigid Tolerances<br>- Recessed Gasket Slots<br>- Buna N Seal Standard (alternates available)<br>- Stainless Steel Cam Arm Pins<br>- Interchangeable with most manufacturers

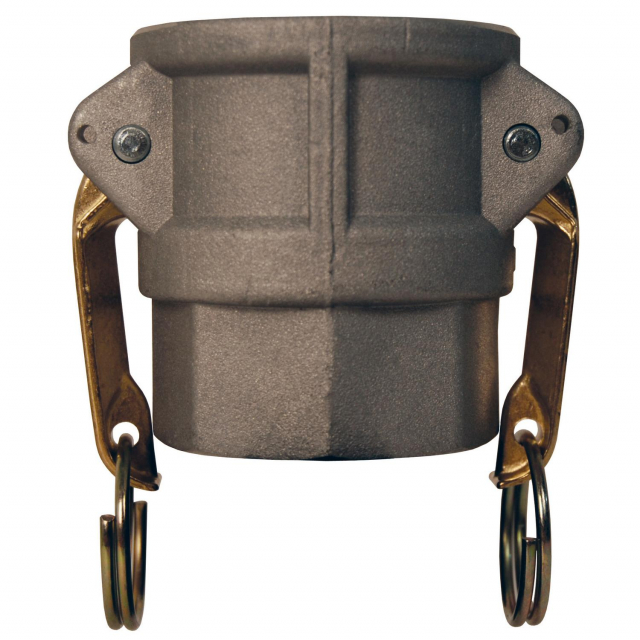

The Dixon global Type D aluminum A380 cam and groove fitting has a straight body with two openings for connecting two hoses or pipes with cam and groove fittings or threads. It has one female cam coupler end for connecting to male groove adapters and one NPT female threaded end for connecting to an NPT male threaded connection (Type D). The body is made of aluminum for corrosion and tarnish resistance, and it has cam lock levers for locking the fitting's male groove adapter into female cam couplers. A nitrile butadiene rubber (Buna-N) seal provides a leak-tight fit that is rated for petroleum service, ethanol to E100, and biodiesel to B20. This Dixon cam and groove fitting is suitable for use in commercial or industrial flow systems, such as water transport and treatment, waste management, and in petroleum systems, among others, but it should not be used in compressed air or steam applications.

The Dixon global Type D aluminum A380 cam and groove fitting has a straight body with two openings for connecting two hoses or pipes with cam and groove fittings or threads. It has one female cam coupler end for connecting to male groove adapters and one NPT female threaded end for connecting to an NPT male threaded connection (Type D). The body is made of aluminum for corrosion and tarnish resistance, and it has cam lock levers for locking the fitting's male groove adapter into female cam couplers. A nitrile butadiene rubber (Buna-N) seal provides a leak-tight fit that is rated for petroleum service, ethanol to E100, and biodiesel to B20. This Dixon cam and groove fitting is suitable for use in commercial or industrial flow systems, such as water transport and treatment, waste management, and in petroleum systems, among others, but it should not be used in compressed air or steam applications.

The Dixon global Type D aluminum A380 cam and groove fitting has a straight body with two openings for connecting two hoses or pipes with cam and groove fittings or threads. It has one female cam coupler end for connecting to male groove adapters and one NPT female threaded end for connecting to an NPT male threaded connection (Type D). The body is made of aluminum for corrosion and tarnish resistance, and it has cam lock levers for locking the fitting's male groove adapter into female cam couplers. A nitrile butadiene rubber (Buna-N) seal provides a leak-tight fit that is rated for petroleum service, ethanol to E100, and biodiesel to B20. This Dixon cam and groove fitting is suitable for use in commercial or industrial flow systems, such as water transport and treatment, waste management, and in petroleum systems, among others, but it should not be used in compressed air or steam applications.

The Dixon global Type D aluminum A380 cam and groove fitting has a straight body with two openings for connecting two hoses or pipes with cam and groove fittings or threads. It has one female cam coupler end for connecting to male groove adapters and one NPT female threaded end for connecting to an NPT male threaded connection (Type D). The body is made of aluminum for corrosion and tarnish resistance, and it has cam lock levers for locking the fitting's male groove adapter into female cam couplers. A nitrile butadiene rubber (Buna-N) seal provides a leak-tight fit that is rated for petroleum service, ethanol to E100, and biodiesel to B20. This Dixon cam and groove fitting is suitable for use in commercial or industrial flow systems, such as water transport and treatment, waste management, and in petroleum systems, among others, but it should not be used in compressed air or steam applications.

<p><strong>Dixon, G300-D-AL, 3&quot; Global Cam &amp; Groove Type D Coupler with Brass Handles x Female NPT</strong></p><p><strong>Applications</strong></p><ul><li>Designed for use with liquids</li></ul><p><strong>Specifications</strong></p><ul><li>Designed to interchange with all products produced to A-A-59326D</li></ul><p><strong>Features</strong></p><ul><li>Made to Dixon specifications and branded Dixon</li></ul><p><strong>Construction</strong></p><ul><li>Buna seals</li></ul><p><strong>How it works</strong></p><ul><li>To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.</li><li>Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.</li></ul><p><strong>Safety notes</strong></p><ul><li>Under no circumstances should cam and groove couplings be used for compressed air or steam service!</li><li>Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70&deg;F with a standard seal installed.</li></ul>
