Order 23311854055 by Pfannenberg PA X 1-05 Flashing Sounder - US Mega Store

Pfannenberg . 23311854055

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerPfannenberg
Attribute00, Attribute12100 dB(A)
Attribute01, Attribute13max. - 12 dB via potentiometer
Attribute02, Attribute1480 / 4 tones are externally selectable
Attribute03, Attribute155 J at 1 Hz = 60 flashes/min
Attribute04, Attribute16-40 °C ... +55 °C
Attribute05, Attribute17-40 °C ... +70 °C
Attribute06, Attribute1890 %
Attribute07, Attribute19IP 66
Attribute08, Attribute20II
Attribute09, Attribute21light emission still 70 % after 8,000,000 flashes
Attribute10, Attribute223x M20 knock-outs prepared (on side), 1 knock-out on back
Attribute11, Attribute236 - 13 mm (feed-through grommet)
AttributeKey00, AttributeKey12Sound pressure level
AttributeKey01, AttributeKey13Sound level reduction
AttributeKey02, AttributeKey14Alarm tones
AttributeKey03, AttributeKey15Flash energy and flash rate
AttributeKey04, AttributeKey16Operating temperature
AttributeKey05, AttributeKey17Storage temperature
AttributeKey06, AttributeKey18Relative humidity
AttributeKey07, AttributeKey19Protection system (EN 60529)
AttributeKey08, AttributeKey20Protection class
AttributeKey09, AttributeKey21Service life of the light source
AttributeKey10, AttributeKey22Cable entry
AttributeKey11, AttributeKey23Integrated seal with cable entry
CategoryL1Safety
CategoryL2Emergency Lights & Sirens
CategoryL3Pfannenberg 23311854055
ConditionNEW
Extra Product NameOrder 23311854055 by Pfannenberg PA X 1-05 Flashing Sounder - US Mega Store
moq, multiple, tierMinQty11
MPN, SKU23311854055
qtyInStockContact Us

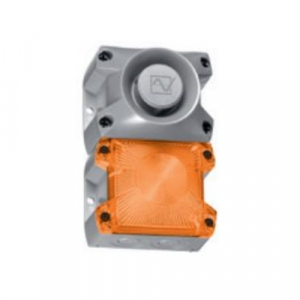

snippet<p><strong>Pfannenberg, 233 1185 4055, PA X 1-05, Patrol Series Flashing Sounders with Grey Housing and Amber Lens, 12 to 15 VDC </strong> </p> <p>Patrol Series Flashing Sounder with 5 Joules Flash and offers 80 alarm tones - based on alarm circumstance - with 4 stages. This Signaling Device operates in any climate and can be surface or flush-panel mounted. </p> <p><strong>Features: </strong> </p> <ul><li>1 Hz single flash xenon strobe light, 5 Joules </li> <li>80 alarm tones with 4 stages </li> <li>Emit different tones based on alarm circumstances </li> <li>Internal volume control </li> <li>Polycarbonate/ABS blend housing </li> <li>UL Type 4/4X, IP 66 ingress protection </li> <li>6.8 inch (172 mm) h x 4.3 inch (110 mm) w x 3.2 inch (81 mm) d </li> <li>Certifications: UL, cUL, MED, CE, VdS, GL, EN 54-3 </li> </ul> based on alarm circumstances </li> <li>Internal volume control </li> <li>Polycarbonate/ABS blend housing </li> <li>UL Type 4/4X, IP 66 ingress protection </li> <li>6.8 inch (172 mm) h x 4.3 inch (110 mm) w x 3.2 inch (81 mm) d </li> <li>Certifications: UL, cUL, MED, CE, VdS, GL, EN 54-3 </li> </ul>
tierPrice1260

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.com233118540551Contact Us11 @ $260.00
Megadepot2331185405511
heavydutydepot.com23311854055211 @ $260.00
