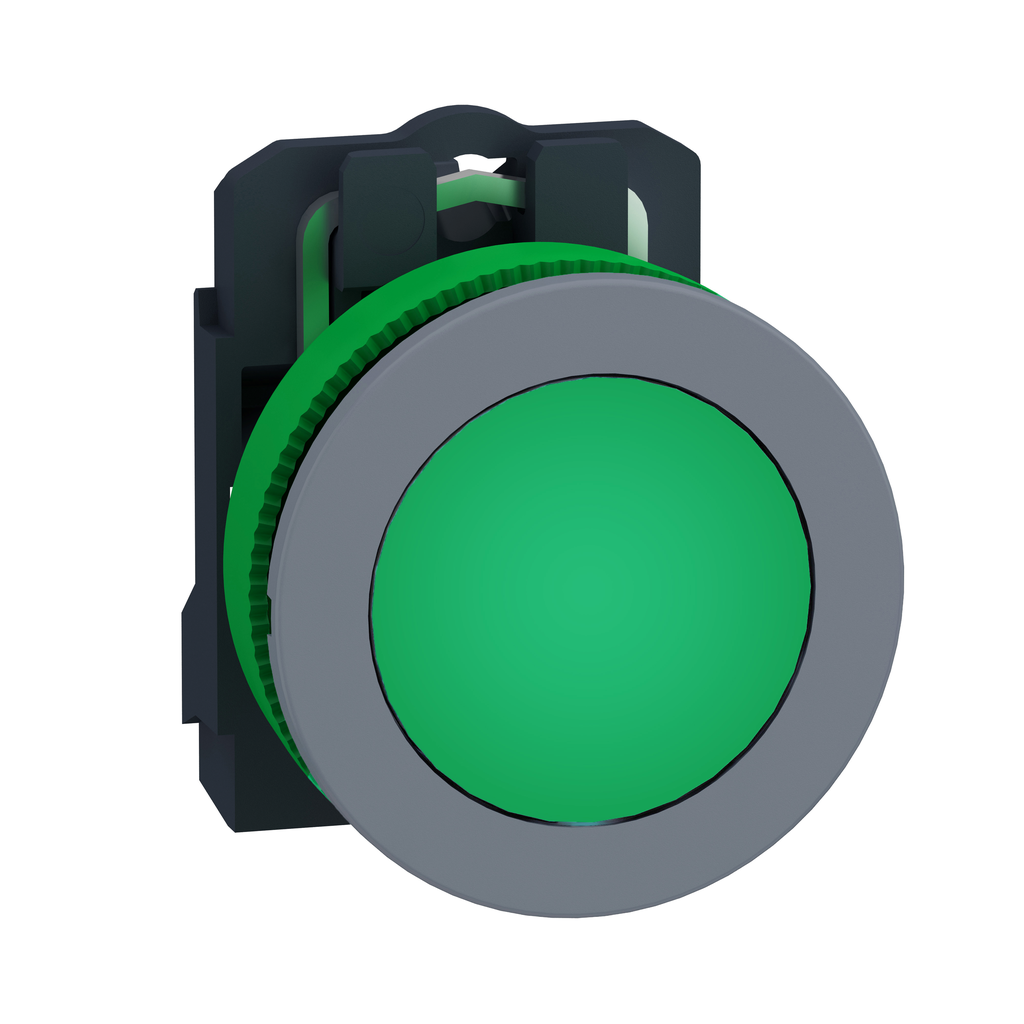

Pilot light, Harmony XB5, grey bezel, green, universal LED, plain lens, screw clamp terminals, 24V | Mayer Electric

SQUARE D . SQDXB5FVB3C0

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00with plain lens
Attribute01Harmony XB5
Attribute02universal LED
Attribute0330.5 mm
Attribute04pilot light
Attribute05round
Attribute06, Attribute12green
Attribute07plastic
Attribute08built-in-flush
Attribute09complete product
Attribute10, moq, multiple, tierMinQty11
Attribute11plastic colour plated grey
Attribute13XB5F
Attribute1424 V AC/DC 50/60 Hz
Attribute15integral LED
Attribute1642 mm
Attribute17(X1-X2)PL
Attribute180.038 kg
Attribute194 kV EN 60947-1
Attribute2018 mA
Attribute217000000 Pa 55 ?C 0.1 m
Attribute22XB5FVCUST02
Attribute23100000 h at rated voltage and 25 ?C
Attribute241 kV IEC 61000-4-5
Attribute25250 V 3)EN 60947-1
Attribute26steady
Attribute2719.2-30 V DC || 21.6-26.4 V AC
Attribute2836.6 mm
Attribute2955 mm
Attribute30, Attribute31, Attribute34Yes
Attribute32Free of Substances of Very High Concern above the threshold
Attribute33Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute35The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Attribute36X
Attribute37Pro-active compliance (Product out of EU RoHS legal scope)
Attribute38UL Listed || CSA
Attribute39IK03 IEC 50102
Attribute40, Attribute47-40-70 ?C
Attribute4110 V/m IEC 61000-4-3
Attribute42JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-1
Attribute43electrostatic discharge 6 kV on contact (on metal parts)) IEC 61000-4-2 || electrostatic discharge 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electromagnetic emissionclass B IEC 55011
Attribute4450 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Attribute455 gn 12-500 Hz)IEC 60068-2-6
Attribute46IP66 IEC 60529 || IP67 IEC 60529
Attribute48class II IEC 60536
Attribute49NEMA 13 || NEMA 4X
Attribute506 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Attribute51TH
Attribute522 kV IEC 61000-4-4
Attribute53class B IEC 55011
AttributeKey00Operator Additional Information
AttributeKey01Range Of Product
AttributeKey02Light Source
AttributeKey03Mounting Diameter
AttributeKey04Product Or Component Type
AttributeKey05Shape Of Signaling Unit Head
AttributeKey06Cap/Operator Or Lens Colour
AttributeKey07Fixing Collar Material
AttributeKey08Head Type
AttributeKey09Device Presentation
AttributeKey10Sale Per Indivisible Quantity
AttributeKey11Bezel Material
AttributeKey12Light Source Colour
AttributeKey13Device Short Name
AttributeKey14[Us] Rated Supply Voltage
AttributeKey15Bulb Base
AttributeKey16, height_AttribHeight
AttributeKey17Terminals Description Iso N?1
AttributeKey18, Weight_AttribNet Weight
AttributeKey19[Uimp] Rated Impulse Withstand Voltage
AttributeKey20Current Consumption
AttributeKey21Resistance To High Pressure Washer
AttributeKey22Gcr Bridge
AttributeKey23Service Life
AttributeKey24Surge Withstand
AttributeKey25[Ui] Rated Insulation Voltage
AttributeKey26Signalling Type
AttributeKey27Supply Voltage Limits
AttributeKey28, width_AttribWidth
AttributeKey29, length_AttribDepth
AttributeKey30Rohs Exemption Information
AttributeKey31Mercury Free
AttributeKey32Reach Regulation
AttributeKey33California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey34Reach Free Of Svhc
AttributeKey35Weee
AttributeKey36China Rohs Regulation
AttributeKey37Eu Rohs Directive
AttributeKey38Product Certifications
AttributeKey39Ik Degree Of Protection
AttributeKey40Ambient Air Temperature For Operation
AttributeKey41Resistance To Electromagnetic Fields
AttributeKey42Standards
AttributeKey43Electromagnetic Compatibility
AttributeKey44Shock Resistance
AttributeKey45Vibration Resistance
AttributeKey46Ip Degree Of Protection
AttributeKey47Ambient Air Temperature For Storage
AttributeKey48Overvoltage Category
AttributeKey49Nema Degree Of Protection
AttributeKey50Resistance To Electrostatic Discharge
AttributeKey51Protective Treatment
AttributeKey52Resistance To Fast Transients
AttributeKey53Electromagnetic Emission
DimensionUnitmm
Extra Product NamePilot light, Harmony XB5, grey bezel, green, universal LED, plain lens, screw clamp terminals, 24V | Mayer Electric
UPC, MPN, SKUSQDXB5FVB3C0
Weight0.038
WeightUnitkg
depth, length55.0
height42.0
jsonUrlData/Product/SQUARE-D-Pilot-light-Harmony-XB5-flush-mounted-complete-24-V-green-cp-grey-SQDXB5FVB3C0
jsonUrlData2dca7cb68-5d6b-42e7-b90f-aeea005819df
qtyInStock0
tierPrice10.0
width36.6
