Order HFA-2-003 by Dwyer Series HF In-Line Flow Monitor - US Mega Store

Dwyer . HFA-2-003

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDwyer
CategoryL1Process Control & Automation
CategoryL2Monitors
CategoryL3Flow
CategoryL4Dwyer HFA-2-003
ConditionNEW
Extra Product NameOrder HFA-2-003 by Dwyer Series HF In-Line Flow Monitor - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUHFA-2-003
qtyInStockContact Us

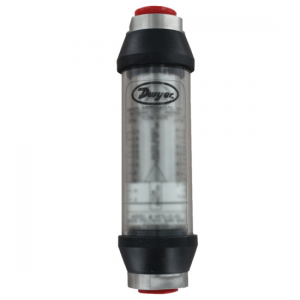

snippet<p><strong>In-Line Flow Monitor, Aluminum body, 1/2" Female NPT Dry Seal, range 5-50 SCFM Air. </strong> </p> <strong>Low Cost, Series HF In-Line Flow Monitors </strong> have a design based on a floating sharp-edged orifice disk and variable area flow measurement to yield accuracy of &#177;2.5% over center one-third of scale. This unique design allows accurate performance with fluid viscosities up to 500 SSU. All internal wetted parts are contained inside a sealed metal tubular casing assuring a virtually maintenance-free unit. Flowing media forces linear motion of a spring loaded, sharp edge orifice disk and ring shaped transfer magnet which both ride on a tapered center shaft. The transfer magnet drives a clearly visible magnet follower located outside the flow tube, protected under the clear polycarbonate tube. A ring on the magnet follower indicates flow rate on the direct reading scale. Rubber bumpers are provided for external impact resistance.<p>Designed for single-direction flow, Series HF Monitors are recommended for use with system filtration of at least 74 microns or a 200 mesh screen. Some applications may also require magnetic filtration. These flowmeters do not require inlet or outlet straight plumbing and can be mounted horizontally, vertically, or inverted. </p> <p><strong>Applications: </strong> </p> <ul> <li> Used to set flow rates, fluid motor and cylinder speeds. </li> <li> Check pump high pressure performance, pressure relief valve settings, fluid handling systems in agricultural, construction or industrial machinery, power tools and equipment. </li> <li> Monitor petrochemical operations with brass or stainless steel models. </li> <li> Industrial pneumatic systems air flow can be monitored with the HFA models which are calibrated at 100 psig inlet pressure. </li> </ul>
tierPrice1355.5

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comHFA-2-0031Contact Us11 @ $355.50
MegadepotHFA-2-00311
RadwellHFA-2-00311
