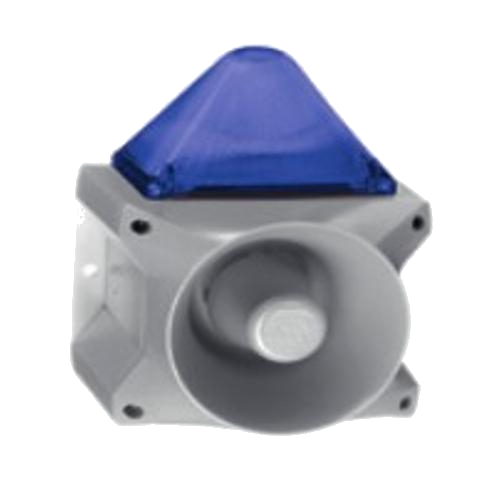

Order 23372857055 by Pfannenberg PA X 20-15 Flashing Sounder - US Mega Store

Pfannenberg . 23372857055

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerPfannenberg
Attribute00, Attribute1312 -15 V
Attribute01, Attribute141550-2010 mA
Attribute02, Attribute15115 dB(A)
Attribute03, Attribute16max. -12 dB via potentiometer
Attribute04, Attribute1780 / 4 tones are externally selectable
Attribute05, Attribute1815 Joule
Attribute06, Attribute19-40 °C / +55 °C
Attribute07, Attribute20-40 °C / +70 °C
Attribute08, Attribute2190 %
Attribute09, Attribute22IP 66
Attribute10, Attribute23II
Attribute11, Attribute244x M20 knock-outs prepared (on side), 1 knock-out on back
Attribute12, Attribute256-13 mm (feed-through grommet)
AttributeKey00, AttributeKey13Operating range
AttributeKey01, AttributeKey14Nominal current consumption
AttributeKey02, AttributeKey15Sound pressure level
AttributeKey03, AttributeKey16Sound level reduction
AttributeKey04, AttributeKey17Alarm tones
AttributeKey05, AttributeKey18Flash energy and flash rate
AttributeKey06, AttributeKey19Operating temperature
AttributeKey07, AttributeKey20Storage temperature
AttributeKey08, AttributeKey21Relative humidity
AttributeKey09, AttributeKey22Protection system (EN 60529)
AttributeKey10, AttributeKey23Protection class
AttributeKey11, AttributeKey24Cable entry
AttributeKey12, AttributeKey25Integrated seal with cable entry
CategoryL1Safety
CategoryL2Emergency Lights & Sirens
CategoryL3Pfannenberg 23372857055
ConditionNEW
Extra Product NameOrder 23372857055 by Pfannenberg PA X 20-15 Flashing Sounder - US Mega Store
moq, multiple, tierMinQty11
MPN, SKU23372857055
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Pfannenberg, 233 7285 7055, PA X 20-15 Flashing Sounder with Grey Housing and Blue Lens, 12 to 15 VDC </strong> </p> <p><strong>Features: </strong> </p> <ul><li>1 Hz single flash xenon strobe light, 15 Joules (10 Joules optional) </li> <li>80 alarm tones with 4 stages </li> <li>Emit different tones based on alarm circumstances </li> <li>Internal volume control </li> <li>Polycarbonate/ABS blend housing </li> <li>UL Type 4/4X, IP 66 ingress protection </li> <li>10.6 inch (270 mm) h x 8.4 inch (214 mm) w x 7.1 inch (181 mm) d </li> <li>Certifications: UL, cUL, MED, CE, VdS, GL, EN 54-3 </li> </ul>
tierPrice11015

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.com233728570551-211 @ $1015.00
heavydutydepot.com233728570551-211 @ $1015.00
Megadepot23372857055111 @ $1005.00
MRO Supply2488624111 @ $1015.00
Galco23372857055-PFNG111 @ $1030.86
