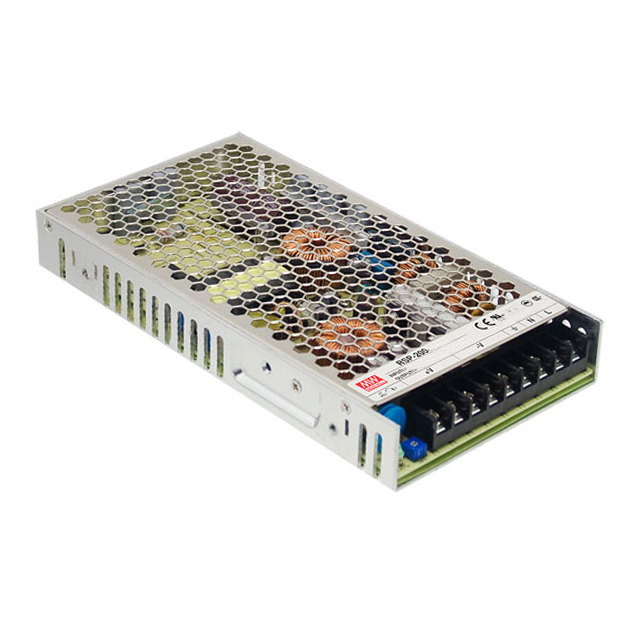

Mean Well Power Supply, Ac-Dc, 24V, 8.4A - RSP-200-24

<b>Features</b><br>Ultra low profile: 30mm<br>Universal AC input / Full range<br>Built-in active PFC function<br>Protections: Short circuit / Overload / Over voltage / Over temperature (RSP-100/150/200)<br>Cooling by free air convection<br>Built-in constant current limiting circuit (RSP-75/100/150)<br>Remote ON/OFF control (RSP-75/100/150)<br>LED indicator for power on<br>3 years warranty<br>The transaction does not include any Import Tax / Duty / VAT / Brokerage Fees / Handling Fees. For more information about the tax rate, please check with local custom department before purchases. If you reject the package due to any charged tax or duty, we reserve the right to charge ALL shipping cost and 5% (of total price) handling fee. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. We do not responsible for any custom duty or import tax. Please check with your country's customs office to determine what these additional costs will be prior to buying. Sometime customs will inspect the parcel and sometime will not. If you have any special request, please kindly advise us once place order.

Welcome,you can buy all of the MEAN WELL power supplies in <strong>Power home</strong>.<br /> <br /> We are MEAN WELL agents,there are more than 5000 kinds of products in stock,ensure rapid delivery,price advantage,if you are business customer or purchase <strong>more than 20 pcs</strong>,please contact us for a more favorable price!<br /> <br /> Note:too cheap products may be imitation or defective products,usually a few months later may be broken,the original product can be used for 5 years or more,the power will not burn the equipment,this is the real bargain!

<p><b>Features:</b></p> <p>Ultra low profile: 30mm</p> <p>Universal AC input / Full range</p> <p>Protections: Short circuit / Overload / Over voltage / Over temperature</p> <p>Built-in active PFC function</p> <p>Cooling by free air convection</p> <p>LED indicator for power on</p> <p>3 years warranty</p> <p><b>General Specification (Please refer to images below for detailed datasheet)</b></p> <p>AC input voltage range:88~264VAC; 124~370VDC</p> <p>AC inrush current (max.):40A at 230VAC</p> <p>DC adjustment range:±10% rated output voltage</p> <p>Overload protection Range:105%~150%</p> <p>Overload protection Type:Hiccup mode, auto-recovery</p> <p>Over voltage protection Range:115%~145%</p> <p>Over voltage protection Type:Shut down O/P voltage, re-power on to recover</p> <p>Withstand voltage:I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC</p> <p>Working temperature:-30~+70°C (refer to output derating curve)</p> <p>Safety standards:UL60950-1, TUV EN60950-1, CCC GB4943 approved</p> <p>EMC standards:EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254</p> <p>Connection:9P / 9.5mm pitch terminal block</p> <p>Dimension (LxWxH):215x115x30</p>
