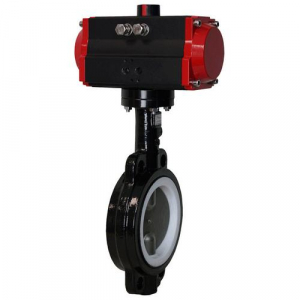

Order WE20-BSR04 by W.E. Anderson Butterfly Valve, 2.5in Spring Return - US Mega Store

W.E. Anderson . WE20-BSR04

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerW.E. Anderson
Attribute00, Attribute16Compatible liquids, gases, and steam
Attribute01, Attribute172-way, wafer or lug butterfly
Attribute02, Attribute182-1/2
Attribute03, Attribute19Lug and wafer pattern designed for flanges that are ANSI Class 125 (B16.1) and ANSI Class 150 (B16.5) dimension
Attribute04, Attribute20225 psi (15.5 bar)
Attribute05, Attribute21Body Material: Ductile iron; Disc: 316 SS; Seat: EPDM or PTFE; O-ring: EPDM; Stem: 410 SS
Attribute06, Attribute22Disc: EPDM: -50 to 250°F (-46 to 121°C); PTFE: 0 to 300°F (-18 to 149°C)
Attribute07, Attribute23Nylatron
Attribute08, Attribute2410-position locking hand lever
Attribute09, Attribute25spring return
Attribute10, Attribute2670 to 115 psi (4.8 to 7.9 bar)
Attribute11, Attribute27120 psi (8.6 bar)
Attribute12, Attribute281/4" FNPT
Attribute13, Attribute29Anodized aluminum body and epoxy coated aluminum end caps
Attribute14, Attribute30-40 to 176°F (-40 to 80°C)
Attribute15, Attribute31NAMUR standard
AttributeKey00, AttributeKey16Service
AttributeKey01, AttributeKey17Body
AttributeKey02, AttributeKey18Line Sizes
AttributeKey03, AttributeKey19End Connections
AttributeKey04, AttributeKey20Pressure Limits
AttributeKey05, AttributeKey21Wetted Materials
AttributeKey06, AttributeKey14, AttributeKey22, AttributeKey30Temperature Limits
AttributeKey07, AttributeKey23Bearings
AttributeKey08, AttributeKey24Operator
AttributeKey09, AttributeKey25Type
AttributeKey10, AttributeKey26Normal Supply Pressure
AttributeKey11, AttributeKey27Maximum Supply Pressure
AttributeKey12, AttributeKey28Air Connections
AttributeKey13, AttributeKey29Housing Material
AttributeKey15, AttributeKey31Accessory Mounting
CategoryL1Plumbing
CategoryL2Valves
CategoryL3Butterfly
CategoryL4W.E. Anderson WE20-BSR04
ConditionNEW
Extra Product NameOrder WE20-BSR04 by W.E. Anderson Butterfly Valve, 2.5in Spring Return - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUWE20-BSR04
qtyInStockContact Us
snippet<p><strong>Butterfly Valve, 2-1/2in Spring Return </strong> </p> <p>The Series WE20 is offered in lug or wafer body styles and is equipped with a PTFE or EPDM liner. The most critical aspect of the Series WE20 Butterfly Valves is the cartridge seat design, which alleviates installation problems associated with common "dove tail design" seats. Valve torques are lower and more consistent as the seat dynamics are not dependent on being coupled between two flanges. Precision machining of the disc and body allow the cartridge design to maintain a tighter disc to seat tolerance, providing a perfect low torque seal each and every time the valve is cycled. The seat to disc seal is independent of flange support and capable of full rated dead end service. Actuators are directly mounted creating a compact assembly for tight spaces. Limit switches are able to be mounted directly to the valves allowing for remote position indication. </p>
tierPrice1365.43

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comWE20-BSR041Contact Us11 @ $365.43
MegadepotWE20-BSR0411
heavydutydepot.comWE20-BSR04111 @ $365.43
