6 Inch Kingpinless Glass Filled Nylon Wheel Swivel Caster with Brake SCC

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioService Caster
Attribute00, atoms6
Attribute012
Attribute024" x 4-1/2"
Attribute037-1/2"
Attribute043/8" (hardware not included)
Attribute056" x 2"
Attribute06Top Plate
Attribute07Top Lock Brake
Attribute0885D
Attribute091200
Attribute10, Material, MaterialTypeGlass Filled Nylon
Attribute112-5/8" x 3-5/8" to 3" x 3"
Attribute12Bright Zinc Plated Finish
Attribute13-45 degrees F to 190 degrees F
Attribute14Swivel caster w/side lock brake
Attribute15, Model, ModelNumber, Model_numberSeries#KP30
Attribute16Roller Bearing
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02Plate Size
AttributeKey03, height_AttribMounting Height
AttributeKey04Bolt Size
AttributeKey05Size
AttributeKey06Caster Mounting Type
AttributeKey07Caster Swivel Lock Type
AttributeKey08Durometer
AttributeKey09Capacity (Lb.)
AttributeKey10Material
AttributeKey11Plate Caster Bolt Hole Pattern
AttributeKey12Finish
AttributeKey13Caster Temp. Range
AttributeKey14Type
AttributeKey15Series
AttributeKey16Bearing Type
CategoryId, CategoryIdL46740
CategoryIdL1, CategoryIdL214394
CategoryIdL34473
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
CategoryL4Plate Casters
DimensionUnitinch
Extra Product Name6 Inch Kingpinless Glass Filled Nylon Wheel Swivel Caster with Brake SCC
UPCNone
WeightUnitlbs
diameter, length6.0
extendedLead26
extendedQty-2
height7.5
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
MPN, PartNumber, Part_numberSCC-KP30S620-GFNR-SLB
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG205436038
tierPrice1137.00
urlhttps://www.zoro.com/service-caster-6-inch-kingpinless-glass-filled-nylon-wheel-swivel-caster-with-brake-scc-scc-kp30s620-gfnr-slb/i/G205436038/
width, Backspacing2.0
ASINB08K1ZM4ZS B08KHG3DXF
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB08K1ZM4ZS
Bullet_pointBrake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #KP30 Glass Filled Nylon casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height. Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. Weight capacity ranges from 800 lbs on the 4” caster, 1000 lbs on the 5”, 1250 lbs on the 6” and 1250 lbs. on the 8”.
ClassificationId511228
ColorSwivel - Side Lock Brake - Black
Compatible_with_vehicle_typeTruck
Currency, CurrencyCodeUSD
DisplayNameHardware
Externally_assigned_product_identifier, Identifier0011586549760 011586549760
FetchTime1697347606 1704415591
Height, Width1000 500 75
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleKingpinless Glass Filled Nylon Swivel Top Plate Caster w/6" x 2" Black Wheel & Side Lck Brake - 1250 lbs Capacity/Caster - Service Caster Brand
Item_type_keywordplate-casters
KeywordSCC-KP30S420-GFNR-BSL-2-R-2
Linkhttps://m.media-amazon.com/images/I/31H79ugiIEL._SL75_.jpg https://m.media-amazon.com/images/I/31H79ugiIEL.jpg https://m.media-amazon.com/images/I/41HT2VdHhtL.jpg https://m.media-amazon.com/images/I/41uAuakC0ML._SL75_.jpg https://m.media-amazon.com/images/I/41uAuakC0ML.jpg https://m.media-amazon.com/images/I/51Z63EGmSJL._SL75_.jpg https://m.media-amazon.com/images/I/51Z63EGmSJL.jpg https://m.media-amazon.com/images/I/51du62VC-bL.jpg https://m.media-amazon.com/images/I/51sbq2ARStL._SL75_.jpg https://m.media-amazon.com/images/I/51sbq2ARStL.jpg https://m.media-amazon.com/images/I/51zL-ecbp+L._SL75_.jpg https://m.media-amazon.com/images/I/51zL-ecbp+L.jpg https://m.media-amazon.com/images/I/61+5r7zmWKL.jpg https://m.media-amazon.com/images/I/61PP01j6zlL.jpg https://m.media-amazon.com/images/I/71fgQlKw78L.jpg
List_price0.0
Load_capacity1200.0
Marketplace_idATVPDKIKX0DER
Name, ThemeSIZE_NAME/COLOR_NAME
ParentAsinsB08KHG3DXF
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductType, ProductTypeNameWHEEL
Product_descriptionListing is for one (1) Service Caster Series #KP30 swivel caster with a 6" diameter by 2" wide glass filled nylon wheel and a side lock brake capable of supporting 1,250 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster Series KP30 glass filled nylon casters. The Service Caster Series KP30 is ideal for medium and heavy duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition and the glass filled nylon wheels provide very low rolling resistance, will not flat spot, are resistant to most chemical and oils, and under normal operating conditions are maintenance free. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
Product_site_launch_date2020-09-24T19:59:35.378Z
Size6" Wheel 6.0
Supplier_declared_dg_hz_regulationnot_applicable
TypeCount VARIATION ean upc
URLhttps://m.media-amazon.com/images/I/31H79ugiIEL._SL75_.jpg
Unitinches pounds
Unit_count1.0
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04
VariationThemecolor size
WebsiteDisplayGroupbiss_basic_display_on_website
Website_shipping_weight7.15

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG205436038111 @ $137.00

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

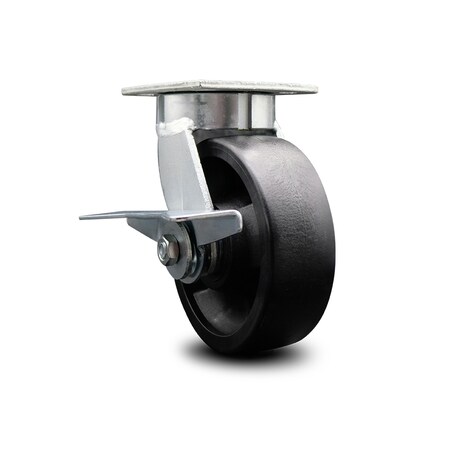

Kingpinless Glass Filled Nylon Swivel Top Plate Caster w/6" x 2" Black Wheel & Side Lck Brake - 1250 lbs Capacity/Caster - Service Caster Brand
Brand: Service Caster
Listing is for one (1) Service Caster Series #KP30 swivel caster with a 6" diameter by 2" wide glass filled nylon wheel and a side lock brake capable of supporting 1,250 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster Series KP30 glass filled nylon casters. The Service Caster Series KP30 is ideal for medium and heavy duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition and the glass filled nylon wheels provide very low rolling resistance, will not flat spot, are resistant to most chemical and oils, and under normal operating conditions are maintenance free. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
Details
  • These Service Caster Series #KP30 Glass Filled Nylon casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 800 lbs on the 4” caster, 1000 lbs on the 5”, 1250 lbs on the 6” and 1250 lbs. on the 8”.
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeWHEEL
ModelSeries#KP30
Part numberSCC-KP30S620-GFNR-SLB
Items per pack1
LabelService Caster
ManufacturerService Caster
