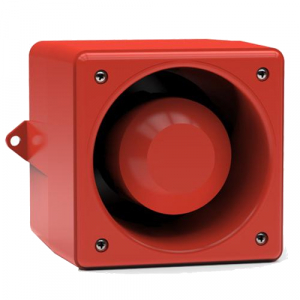

Order 23106800522 by Pfannenberg DS5-TAS-LSR Multi-Tone Sounder - US Mega Store

Pfannenberg . 23106800522

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerPfannenberg
Attribute00, Attribute1524 V AC
Attribute01, Attribute1650 Hz / 60 Hz
Attribute02, Attribute1719 V - 29 V
Attribute03, Attribute180.28 A
Attribute04, Attribute19105 dB (A)
Attribute05, Attribute20by - 20 dB via potentiometer (optional)
Attribute06, Attribute21-25 °C / +55 °C
Attribute07, Attribute22-40 °C / +70 °C
Attribute08, Attribute2390 %
Attribute09, Attribute24IP 66 | IP 67
Attribute10, Attribute25100 %
Attribute11, Attribute26die-cast aluminium GD-AI Si12 Cu
Attribute12, Attribute27epoxy resin paint RAL 3000, flame red
Attribute13, Attribute282 x M20 (1 x chrome-plated brass cable fitting, 1 x chrome-plated brass blanking plug)
Attribute14, Attribute298-12 mm
AttributeKey00, AttributeKey15Rated voltage
AttributeKey01, AttributeKey16Rated frequency
AttributeKey02, AttributeKey17Functional range
AttributeKey03, AttributeKey18Rated current consumption
AttributeKey04, AttributeKey19Sound pressure level
AttributeKey05, AttributeKey20Sound level reduction
AttributeKey06, AttributeKey21Operating temperature
AttributeKey07, AttributeKey22Storage temperature
AttributeKey08, AttributeKey23Relative humidity
AttributeKey09, AttributeKey24Protection system according to EN 60529
AttributeKey10, AttributeKey25Duty cycle
AttributeKey11, AttributeKey26Material
AttributeKey12, AttributeKey27Surface coating
AttributeKey13, AttributeKey28Cable bushing
AttributeKey14, AttributeKey29Clamping range of the cable fitting
CategoryL1Safety
CategoryL2Emergency Lights & Sirens
CategoryL3Pfannenberg 23106800522
ConditionNEW
Extra Product NameOrder 23106800522 by Pfannenberg DS5-TAS-LSR Multi-Tone Sounder - US Mega Store
moq, multiple, tierMinQty11
MPN, SKU23106800522
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Pfannenberg, 231 0680 0522, DS5-TAS-LSR UL Multi-Tone Sounder Includes Tone Stage Selection, Volume Control, and UL Certification, 19 to 29 VDC </strong> </p> <p>The sounder can be used for tough demands under industrial conditions and as universal alarms. The sounders, which are uitable for use both indoors and outdoors, generate warning signals in 31 different tones can be selected with the aid of an internal switch. </p>
tierPrice1844

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.com231068005221-211 @ $844.00
Megadepot23106800522111 @ $825.00
heavydutydepot.com231068005221-211 @ $844.00
Galco23106800522-PFNG111 @ $844.00
MRO Supply2488220111 @ $844.00
Radwell23106800522121
