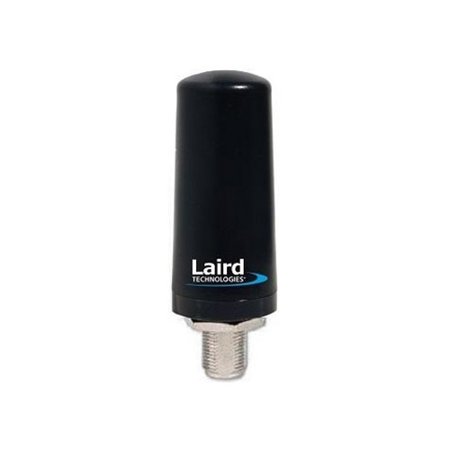

LAIRD . TRA6927M3PB-001

4G/3G Phantom Antenna Ideal for /1800/1900/2100/2300/2500/2600 MHz ApplicationsLaird Technologies' unique Phantom antenna operates simultaneously in the 698-960 MHz and 1700-2700 MHz bands, making it ideal for 4G/3G applications. The mechanically robust design is suitable for both indoor and outdoor applications with wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications. The antenna is ideal for both ceiling and surface mount industry standard NMO mounting socket mates with all Laird Technologies' magnetic, trunk lid and hole mount configurations. A threaded permanent stud mount model is also available for vandal resistant mounting on brackets, panels, ceilings or any other kind of * Mechanically robust for both Indoor/Outdoor applications* Applicable for both 3G and 4G application* Domestic LTE 700 band and Global LTE 2600 band* WiMAX 2300/2500/2600 bands* Domestic Cellular and Global GSM* Phantom out-performs a 3 dBi whip in many applicationsMarkets* Public Safety* Cellular* M2M* Utilities* Data transport* Transportation* IBW Frequency Range (Max): 960 MHz Frequency Range (Min): 698 MHz Gain: 4.5 VSWR: 2 Antenna Type: Phantom/HCR Pattern Type: Omnidirectional Polarization: Vertical Radome Material: SABIC Lexan Applications: LMR/LPWAN/ISM/M2M Environment: Outdoor Gain (min): 3 dBi Gain (max): 3 dBi Connector: Type N Female Frequency Range 2 (Min): 1710 MHz Frequency Range 2 (Max): 2700 MHz Cellular Ports: 1 IP Rating: IP67 Color: Black
