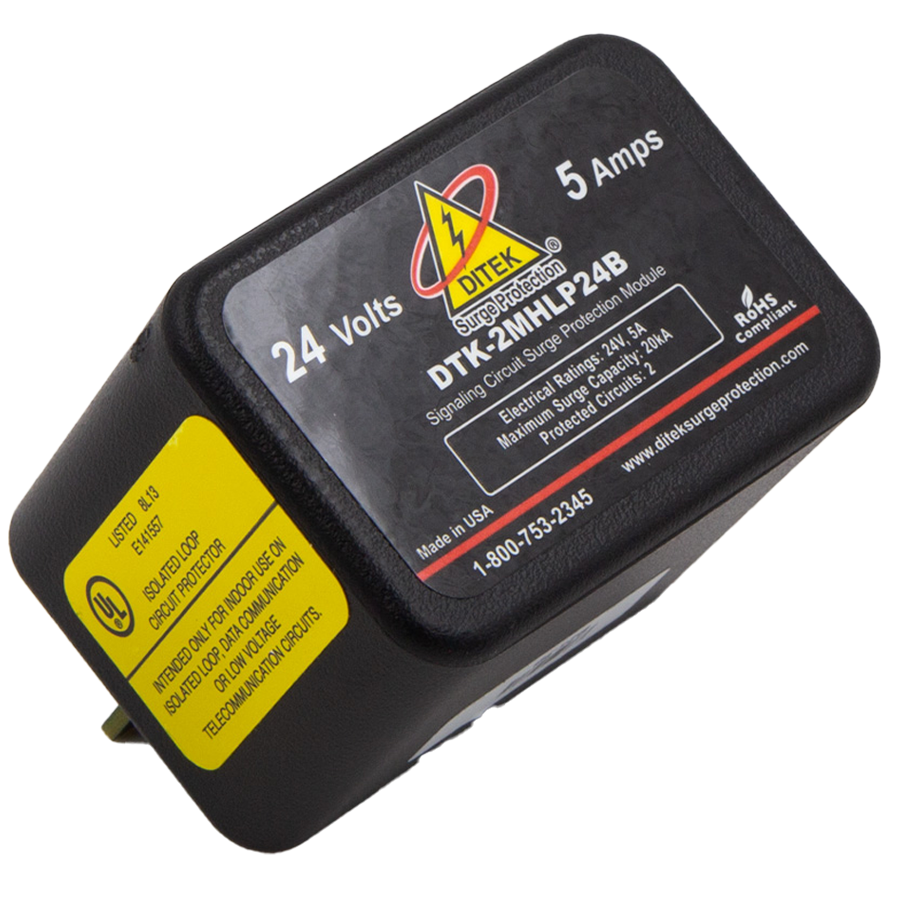

DITEK DTK-2MHLP24B Data And Signal Protection, 24 V, 33 (MCOV) V, 20000 A Max Current, 10 Pair, Multi Stage Protection, 2.1 X 1.4 X 1.9 In, 5 A | Graybar Store

DITEK DTK-2MHLP24B Data & Signaling Circuit Surge Protection Module, Protects (2) Low Voltage Circuit Pairs Per Module, Multi-stage SAD Technology Provides the Best Possible Protection<br><br> DITEK's DTK-2MHLPB Series of low voltage surge protectors provide robust protection in a compact package. This series was designed for ease of installation, with convenient field-replaceable modules and a Snap-Track base system, allowing the installer to protect multiple circuits while utilizing a common ground point.<br><br> Key Features<br> - Protects (2) low voltage circuit pairs per module<br> - Multi-stage SAD technology provides the best possible protection<br> - Shorts to ground when compromised<br> Field-replaceable modular design with single point ground for fast and easy installation<br> - Suitable for use on both AC and DC low voltage circuits<br><br> Specifications<br> - Service Voltage: 24V<br> - MCOV: 33V<br> - Clamping Voltage: 39V<br> - Protection Modes: Common Mode (L-G)<br> - Surge Current Rating: 20,000A<br> - Max. Continuous Current: 5A<br> - Failure Mode: Short to Groun<br> - Base Connection Method: Hardwired terminals, 30-12 AWG<br> - Module Connection Method: Edge card into mounting base<br> - Housing: ABS<br> - Operating Temperature: -40°F - 158°F (-40°C - 70°C)<br> - Maximum Humidity: 95% non-condensing<br> - Dimensions: 2.1"L x 1.4"W x 1.9"H (53 x 36 x 48 mm)<br> - Weight: 1.2 oz (34 g)<br><br>
