Seco-Larm Polarized Reflective Photobeam Sensor, Range: Up To 33Ft (10M), Polarized Sensor Is Immune To Shiny Objects: Triggers Only When Correctly Reflected Light Is Detected, 12-30Vdc/vac 60Hz 100Ma, Monitored Output: N.c./10K Resistor, - E-931-S33PRGQ

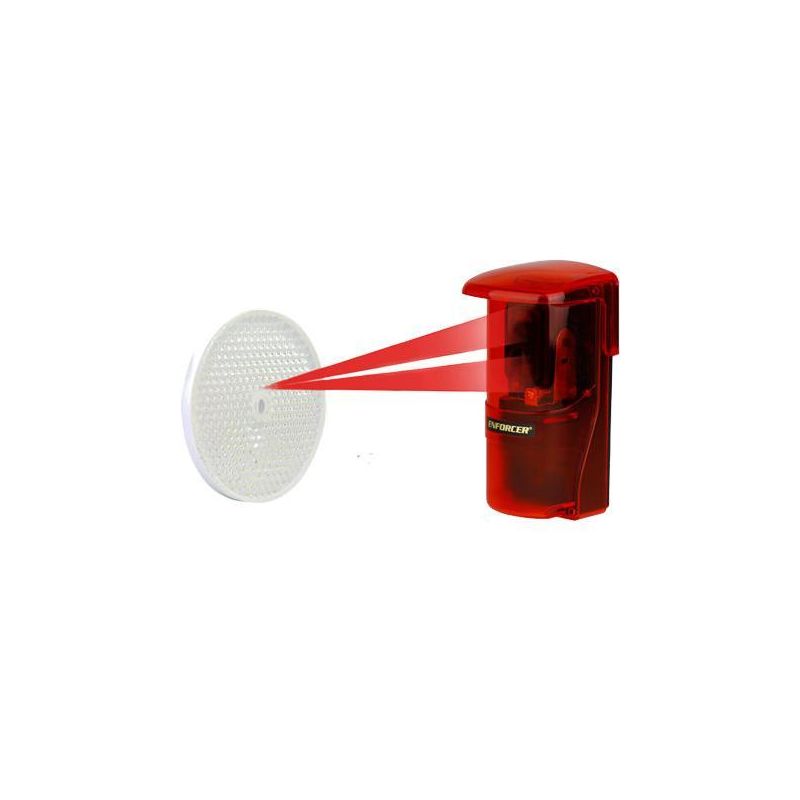

Seco-Larm E-931-S33PRGQ Polarized Reflective Photoelectric IR Beam Sensor, Weatherproof, Anti-condensation Housing, Up to 33ft Sensing Range, Beam Status LED, 12-30V DC/AC 60Hz, Round Reflector<br><br> The E-931-S33PRGQ 33ft Polarized Reflective Photoelectric Beam Sensor provides reliable detection of shiny objects that could be missed by a non-polarized sensor<br><br> Key Features:<br> - Polarized sensor is immune to shiny objects: triggers only when correctly reflected light is detected<br> - Weatherproof (IP55), Anti-condensation housing<br> - 12-30V DC/AC 60Hz, 100mA<br> - Up to 33ft (10m) sensing range<br> - Round reflector, Diameter: 3-1/4" (82mm)<br> - Form C relay: 500mA@30VAC/VDC<br> - Beam status LED<br> - Compact size: 4.81" x 2.37" x 2.43"<br> - N.C. Tamper switch: 500mA@30VAC/VDC<br> - Hood included for both sensor and reflector<br><br> Specifications:<br> - Type: Polarized reflective photoelectric beam sensor<br> - Current Draw: Standby- 55mA@12VDC, Active- 40mA@12VDC<br> - Sensing Range: Up to 33' (10m)<br> - Operating Voltage: 12-30V DC/AC 60Hz, 100mA<br> - Reaction time: 10ms<br> - IP Rating: IP55 Weatherproof<br> - Light Source: IR LED/Wavelength 740nm<br> - LEDs - Red: Solid, No beam signal, triggered<br> - LEDs - Green: Solid, Good beam signal, properly aligned<br> - LEDs: Alternating flash- Poor beam signal<br> - Alarm Output: SPDT relay output (NO/NC/COM)<br> - Switching Capacity: 500mA@30VAC/VDC<br> - Tamper Switch: N.C., 500mA@30VAC/VDC<br> - Operating Temperature: -4º~131º F (-20º~55º C)<br> - Enclosure: IP55 Weatherproof
