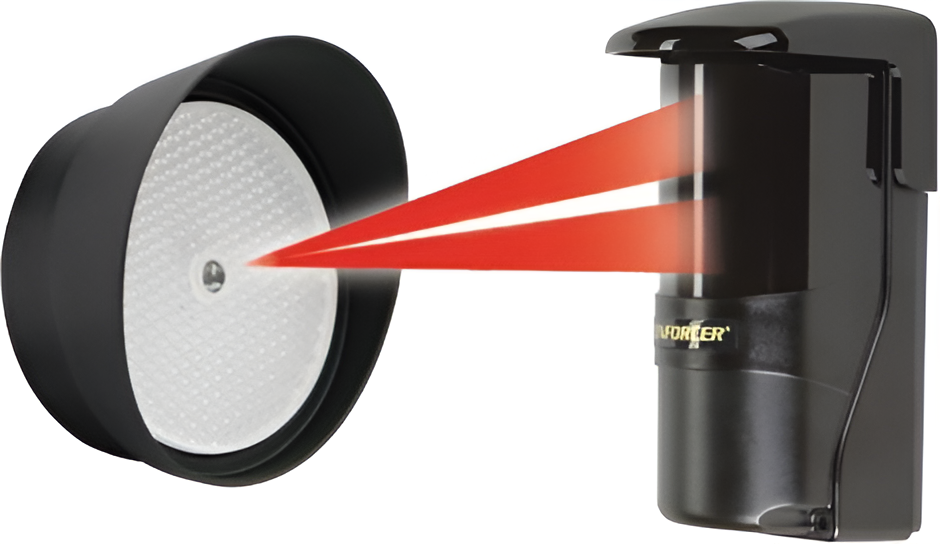

Seco-Larm Reflective Photobeam Sensor, Range: Up To 50Ft (15M), 12-30Vdc/vac 60Hz 100Ma, Monitored Output: N.c./10K Resistor, Form C Relay: 500Ma30Vac/vdc, Dual-Color Led For Beam Alignment, For Outdoor Gates/ Garage Doors/ Etc, N.c. Tamper - E-931-S50RRGQ

Seco-Larm E-931-S50RRGQ Pack of 3 Reflective Photoelectric Beam Sensors, Up to 50ft Sensing Range, Weatherproof IP55 Construction for Indoor/Outdoor Usage, Anti-condensation Housing<br><br> Key Features:<br> - For outdoor gates, garage doors, etc<br> - Weatherproof (IP55) construction for indoor/outdoor use<br> - Anti-condensation housing<br> - Dual-color LED alignment system<br> - Form C relay: 500mA@30VAC/VDC<br> - Tamper switch: N.C. 500mA@30VAC/VDC<br> - 31/4" (82mm) Round reflector included<br> - Compact size<br> - Monitored output: N.C., 10kΩ Resistor<br><br> Specifications:<br> - Type: Reflective photoelectric beam sensor<br> - Current Draw: Standby - 55mA@12VDC, Active - 40mA@12VDC<br> - Sensing Range: Up to 50' (15m)<br> - Operating Voltage: 12-30V DC/AC 60Hz, 100mA<br> - Reaction time: 10ms<br> - Light Source: IR LED<br> - LEDs - Red: Solid, No beam signal, triggered<br> - LEDs - Green: Solid, Good beam signal, properly aligned<br> - LEDs: Alternating Flash - Poor beam signal<br> - Alarm Output: SPDT relay output (NO/NC/COM)<br> - Switching Capacity: 500mA@30VAC/VDC<br> - Tamper Switch: 500mA@30VAC/VDC<br> - Operating Temperature: -13º~140ºF (-25º~60ºC)<br> - Enclosure: IP55<br> - Overall Dimensions (HxWxD): 4.81 x 2.37 x 2.43 inches

Monitor your garage, gate, driveway or doorway with the Seco-Larm Enforcer Photoelectric Beam Sensor (50 ft.). This weatherproof sensor triggers an alarm in a connected security system when its infrared (IR) beam is broken. The 3-inch round reflector can be installed discretely on a wall or other flat surface. It provides a large sensing area for wide entryways, as well as easier alignment during installation. This sensor also features lensed optics and dual-color LEDs to strengthen the beam and minimize false alarms due to rain, snow, falling leaves, birds, etc. FEATURES: Up to 50-foot sensing range (sensor to reflector). Suitable for indoor or outdoor use. Weatherproof with sunlight-filtering case. Near immediate response time from 10ms. Includes installation hardware. SPECIFICATIONS: Type: Reflective photoelectric beam sensor. Sensing Range: Up to 50 feet (15m). Operating Voltage: 12~30DC/ADC, 100mA. Current Draw: Standby: 55mA at 12VDC Active: 40mA at 12VDC. Response Time: 10ms. Light Source: IR LED. LEDs: Solid Red: No beam signal, triggered. Alternating Flash: Poor beam signal. Solid Green: Good beam signal, properly aligned. Alarm Output: NO/NC relay, 0.5A at 120VAC, min. 1s. Tamper Switch: NC switch, 500mA at 30VAC/VDC. Alignment Angle: Horizontal: +/-90 degrees; Vertical: +/-15 degrees. Enclosure: Weatherproof IP55. Operating Temperature: -13F to 131F (-25C to 60C). Dimensions: 3-3/16 x 7-3/16 x 3-9/16 inches (81 x 182 x 91 mm). Weight: Sensor: 11.6 ounces (329g) with hood. Reflector: 5.9 ounces (167g) with hood. Approvals: ISO 9001, CE, RoHS. Warranty: 1 Year.

4

z

3

Seco-Larm E-931-S50RRGQ Pack of 2 Reflective Photoelectric Beam Sensors, Up to 50ft Sensing Range, Weatherproof IP55 Construction for Indoor/Outdoor Usage, Anti-condensation Housing<br><br> Key Features:<br> - For outdoor gates, garage doors, etc<br> - Weatherproof (IP55) construction for indoor/outdoor use<br> - Anti-condensation housing<br> - Dual-color LED alignment system<br> - Form C relay: 500mA@30VAC/VDC<br> - Tamper switch: N.C. 500mA@30VAC/VDC<br> - 31/4" (82mm) Round reflector included<br> - Compact size<br> - Monitored output: N.C., 10kΩ Resistor<br><br> Specifications:<br> - Type: Reflective photoelectric beam sensor<br> - Current Draw: Standby - 55mA@12VDC, Active - 40mA@12VDC<br> - Sensing Range: Up to 50' (15m)<br> - Operating Voltage: 12-30V DC/AC 60Hz, 100mA<br> - Reaction time: 10ms<br> - Light Source: IR LED<br> - LEDs - Red: Solid, No beam signal, triggered<br> - LEDs - Green: Solid, Good beam signal, properly aligned<br> - LEDs: Alternating Flash - Poor beam signal<br> - Alarm Output: SPDT relay output (NO/NC/COM)<br> - Switching Capacity: 500mA@30VAC/VDC<br> - Tamper Switch: 500mA@30VAC/VDC<br> - Operating Temperature: -13º~140ºF (-25º~60ºC)<br> - Enclosure: IP55<br> - Overall Dimensions (HxWxD): 4.81 x 2.37 x 2.43 inches

Seco-Larm E-931-S50RRGQ Pack of 3 Reflective Photoelectric Beam Sensors, Up to 50ft Sensing Range, Weatherproof IP55 Construction for Indoor/Outdoor Usage, Anti-condensation Housing<br><br> Key Features:<br> - For outdoor gates, garage doors, etc<br> - Weatherproof (IP55) construction for indoor/outdoor use<br> - Anti-condensation housing<br> - Dual-color LED alignment system<br> - Form C relay: 500mA@30VAC/VDC<br> - Tamper switch: N.C. 500mA@30VAC/VDC<br> - 31/4" (82mm) Round reflector included<br> - Compact size<br> - Monitored output: N.C., 10kΩ Resistor<br><br> Specifications:<br> - Type: Reflective photoelectric beam sensor<br> - Current Draw: Standby - 55mA@12VDC, Active - 40mA@12VDC<br> - Sensing Range: Up to 50' (15m)<br> - Operating Voltage: 12-30V DC/AC 60Hz, 100mA<br> - Reaction time: 10ms<br> - Light Source: IR LED<br> - LEDs - Red: Solid, No beam signal, triggered<br> - LEDs - Green: Solid, Good beam signal, properly aligned<br> - LEDs: Alternating Flash - Poor beam signal<br> - Alarm Output: SPDT relay output (NO/NC/COM)<br> - Switching Capacity: 500mA@30VAC/VDC<br> - Tamper Switch: 500mA@30VAC/VDC<br> - Operating Temperature: -13º~140ºF (-25º~60ºC)<br> - Enclosure: IP55<br> - Overall Dimensions (HxWxD): 4.81 x 2.37 x 2.43 inches
