Seco-Larm . E-941DA-600Q

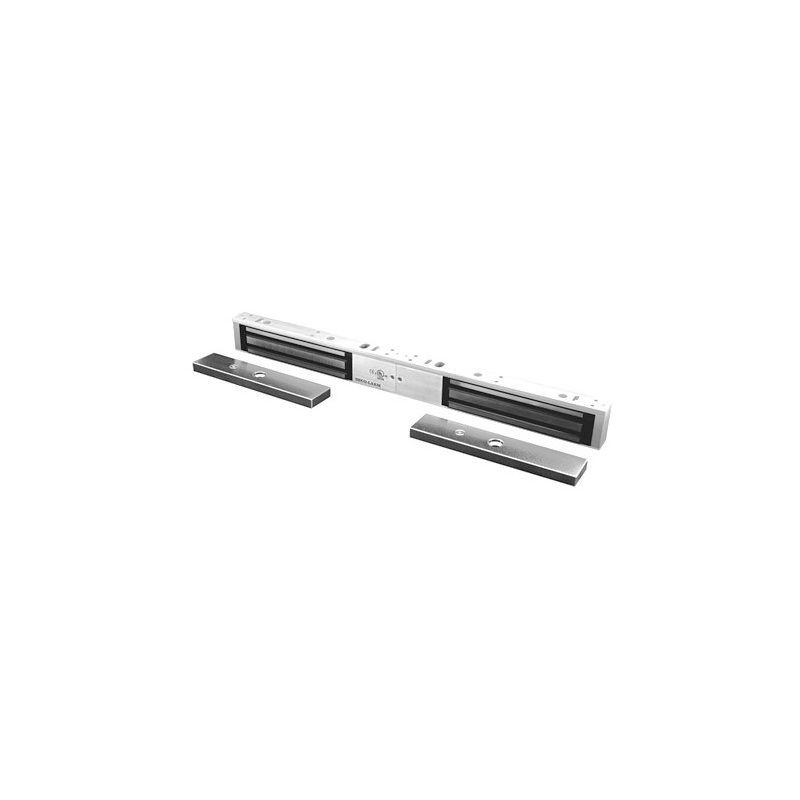

<p><b>Seco-Larm E-941DA-600Q Electromagnetic Double-Door Maglock, 600-lb (272kg) Holding Force, 12 or 24 VDC (Selectable), No Residual Magnetism, Adjustable Mounting Bracket, Detachable Face Plate</b></p> <b>Key Features</b><ul> <li>Anodized aluminum housing (US 28)</li> <li>600-lb (272kg) Holding Force</li> <li>12 or 24 VDC (selectable)</li> <li>No residual magnetism</li> <li>Adjustable mounting bracket</li> <li>MOV surge protection</li> <li>Complete mounting hardware for typical installations</li> <li>L, "Z" and "U" brackets available for easy mounting</li> <li>Detachable face plate</li> <li>UL and ULC listed</li> <li>CE listed</li> <li>RoHS compliant</li></ul> <b>Specifications</b><ul> <li>Holding force: 600-lb (272kg)</li> <li>Current draw: 500mA@12VDC per door (1A total) 250mA@24VDC per door (500mA total)</li> <li>Operating voltage: 12 or 24 VDC±10%</li> <li>Temperature: 14º~131ºF (-10º~55ºC)</li> <li>Magnet size: 19-11/16"x1-5/8"x1" (500x42x25 mm)</li> <li>Armature size: 7-1/4"x1/2"x1-1/2" (185x12x38 mm)</li> <li>Certification: UL, ULC, CE</li> <li>RoHS compliant: Yes</li> <li>Unit weight (approx.): 9-lb (4kg)</li></ul>

Seco-Larm E-941DA-600Q Pack of 2 Electromagnetic Locks; Double-Door; 600-lb Holding force per door; MOV Surge Protection; Anodized Aluminum Housing; Adjustable Mounting Bracket; 12/24VDC Selectable<br><br> The E-941Dx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.<br><br> Key Features:<br> - 600-lb (272kg) Holding force per door<br> - No residual magnetism<br> - MOV Surge protection<br> - Anodized aluminum housing (US 28)<br> - Adjustable mounting bracket<br> - Complete mounting hardware for typical installations<br> - Additional brackets available for easy mounting or atypical situations<br> - Detachable faceplate for easy access to wiring<br> - 12/24VDC Selectable<br><br> Specifications:<br> - Holding force: 600-lb (272kg) per door<br> - Operating voltage: 12 /24 VDC (selectable)<br> - Current draw: 500mA@12VDC per door (1A total) 270mA@24VDC per door (540mA total)<br> - Destructive attack: Level I<br> - Line security: Level I<br> - Standby power: Level I<br> - Endurance: Level IV<br> - Electromagnet dimensions: 19.68 x 1.62 x 1.06 inches<br> - Armature dimensions: 7.25 x 1.5 x 0.5 inches<br> - Weight: 9 pounds
