Order 20DAX40-WM-10 by Meriam 20DAX40 High Pressure U Tube Manometer WM - US Mega Store

Meriam . 20DAX40-WM-10

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMeriam
Attribute00, Attribute03304 S.S.
Attribute01, Attribute0410"
Attribute02, Attribute055 lbs
AttributeKey00, AttributeKey03WettedMount PartsStyle Description Material
AttributeKey01, AttributeKey04SIZE
AttributeKey02, AttributeKey05, Weight_AttribWeight
CategoryL1Test Equipment
CategoryL2Meters
CategoryL3Pressure Meters
CategoryL4Differential
ConditionNEW
Extra Product NameOrder 20DAX40-WM-10 by Meriam 20DAX40 High Pressure U Tube Manometer WM - US Mega Store
Weight5
WeightUnitlbs
moq, multiple, tierMinQty11
MPN, SKU20DAX40-WM-10
qtyInStock3-4 Weeks Factory Lead Time

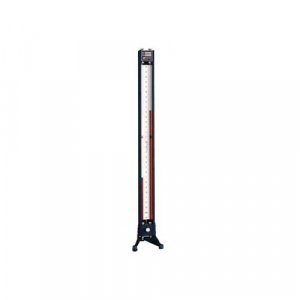

snippet<p>Model Z20Dax40 High Pressure "U" Tube Manometer, Wall Mount </p> <p>The Model 20DAX40 manometer is designed for the measurement of pressures, vacuums or differential pressures with a maximum operating pressure of 400 PSI. This manometer is of very rigid construction designed primarily for high line pressure operation. Only carefully selected, fully annealed glass tubing is used. The manometer scale is located to permit quick and accurate reading of the indicating columns. The U-tube type manometer is a primary basic standard of pressure measurement. Pressure measurements are accomplished by balancing a vertical head of indicating fluid with the pressure to be measured. As there are no cams, gears or levers to operate in the manometer the readings obtained are accurate. </p> <p>The manometer body has an aluminum channel to which stainless steel and blocks are connected. The wetted parts are type 304SS. The glass tubing is gland packed with viton gaskets at each end block and is supported at spaced intervals to prevent tube distortion at elevated pressures. In place of the conventional U-tube of one continuous glass length, two straight length individual tubes are used in this manometer. To connect the two vertical glass tube legs to form the U, the lower manometer end block is cross-drilled. Standard pressure connections are 1/4 inch female pipe out the top of the upper end block. </p>
tierPrice11406.3

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.com20DAX40-WM-1013-4 Weeks Factory Lead Time11 @ $1406.30
Megadepot20DAX40-WM-10111 @ $1406.30
