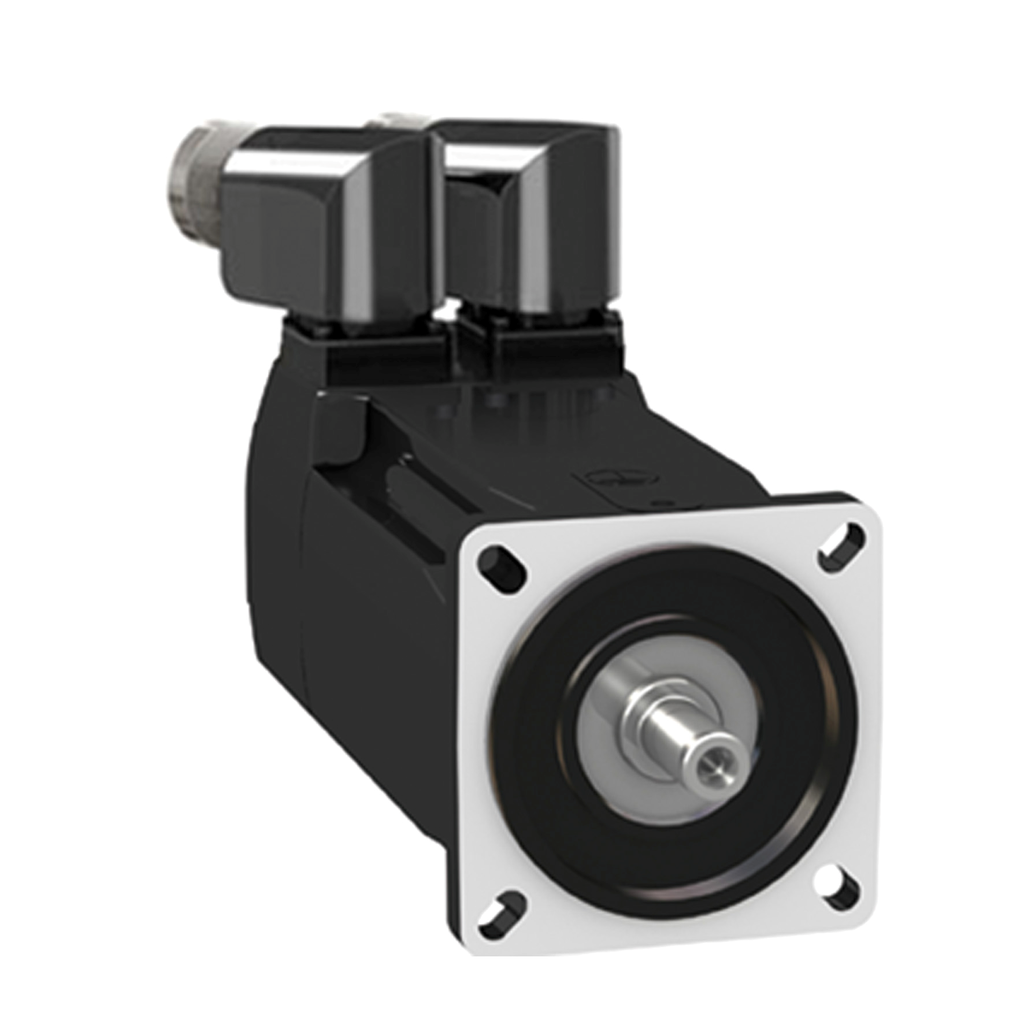

servo motor MH3 070 1,4Nm,no key,single 16 lines,no brake,IP65/IP67,6kRPM | Mayer Electric

SQUARE D . SQDMH30701P06A2200

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00PacDrive 3
Attribute01AC servo motors
Attribute02MH3
Attribute030.18 W, 115 V || 0.42 W, 230 V || 0.75 W, 400 V || 0.93 W, 480 V
Attribute0482 mm
Attribute054.2 N.m, 115...480 V, three phase
Attribute064
Attribute07930 W
Attribute0811 mm
Attribute098000 rpm
Attribute105.5 mm
Attribute112.8 ms
Attribute12natural convection
Attribute13660 N 1000 rpm || 520 N 2000 rpm || 460 N 3000 rpm || 410 N 4000 rpm || 380 N 5000 rpm || 360 N 6000 rpm
Attribute14single turn SinCos Hiperface
Attribute15international standard flange
Attribute160.59 kg.cm?
Attribute17IP65 standard
Attribute1810
Attribute1950.72 V/krpm
Attribute20smooth shaft
Attribute211250 rpm, 115 V || 3000 rpm, 230 V || 5500 rpm, 400 V || 7000 rpm, 480 V
Attribute222.5 mm
Attribute23rotatable right-angled connectors
Attribute24without
Attribute2516 periods
Attribute268.28 Ohm
Attribute27without second shaft end
Attribute281.78 A
Attribute2923 mm
Attribute301.38 N.m, 115 V || 1.34 N.m, 230 V || 1.3 N.m, 400 V || 1.27 N.m, 480 V
Attribute31three phase
Attribute32122 mm
Attribute335.97 A
Attribute341.6 kg
Attribute350.79 N.m/A 120 ?C
Attribute3660 mm
Attribute371.4 N.m, 115...480 V, three phase
Attribute3823.4 mH
Attribute3970 mm
Attribute40115...480 V
Attribute41X
Attribute42, Attribute43, Attribute46Yes
Attribute44ENVPEP111002EN
Attribute45Green Premium product
Attribute47Pro-active compliance (Product out of EU RoHS legal scope)
Attribute48Reference contains Substances of Very High Concern above the threshold
Attribute49Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute50The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
AttributeKey00Range Compatibility
AttributeKey01Product Or Component Type
AttributeKey02Device Short Name
AttributeKey03Nominal Output Power
AttributeKey04, height_AttribCircle Diameter Of The Mounting Holes
AttributeKey05Peak Stall Torque
AttributeKey06Number Of Mounting Holes
AttributeKey07Continuous Power
AttributeKey08Shaft Diameter
AttributeKey09Maximum Mechanical Speed
AttributeKey10Mounting Holes Diameter
AttributeKey11Stator Electrical Time Constant
AttributeKey12Type Of Cooling
AttributeKey13Maximum Radial Force Fr
AttributeKey14Encoder Type
AttributeKey15Mounting Support
AttributeKey16Rotor Inertia
AttributeKey17Ip Degree Of Protection
AttributeKey18Number Of Motor Poles
AttributeKey19Back Emf Constant
AttributeKey20Shaft End
AttributeKey21Nominal Speed
AttributeKey22, width_AttribCentring Collar Depth
AttributeKey23Electrical Connection
AttributeKey24Holding Brake
AttributeKey25Speed Feedback Resolution
AttributeKey26Stator Resistance
AttributeKey27Second Shaft
AttributeKey28Continuous Stall Current
AttributeKey29Shaft Length
AttributeKey30Nominal Torque
AttributeKey31Phase
AttributeKey32, length_AttribLength
AttributeKey33Maximum Current Irms
AttributeKey34, Weight_AttribNet Weight
AttributeKey35Torque Constant
AttributeKey36Centring Collar Diameter
AttributeKey37Continuous Stall Torque
AttributeKey38Stator Inductance
AttributeKey39Motor Flange Size
AttributeKey40[Us] Rated Supply Voltage
AttributeKey41China Rohs Regulation
AttributeKey42Rohs Exemption Information
AttributeKey43Mercury Free
AttributeKey44Environmental Disclosure
AttributeKey45Sustainable Offer Status
AttributeKey46Pvc Free
AttributeKey47Eu Rohs Directive
AttributeKey48Reach Regulation
AttributeKey49California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey50Weee
DimensionUnitmm
Extra Product Nameservo motor MH3 070 1,4Nm,no key,single 16 lines,no brake,IP65/IP67,6kRPM | Mayer Electric
UPC, MPN, SKUSQDMH30701P06A2200
Weight1.6
WeightUnitkg
diameter, height82.0
jsonUrlData/Product/SQUARE-D-servo-motor-MH3-070-1-4Nm-no-key-single-16-lines-no-brake-IP65-IP67-6kRPM-SQDMH30701P06A2200
jsonUrlData27037f07b-580a-47d6-b0a5-aeea00568cc8
length122.0
moq, multiple, tierMinQty11
qtyInStock0
tierPrice10.0
width2.5
