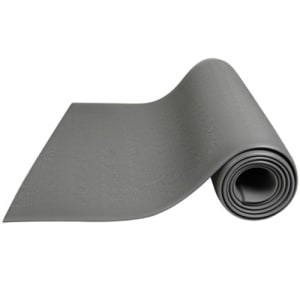

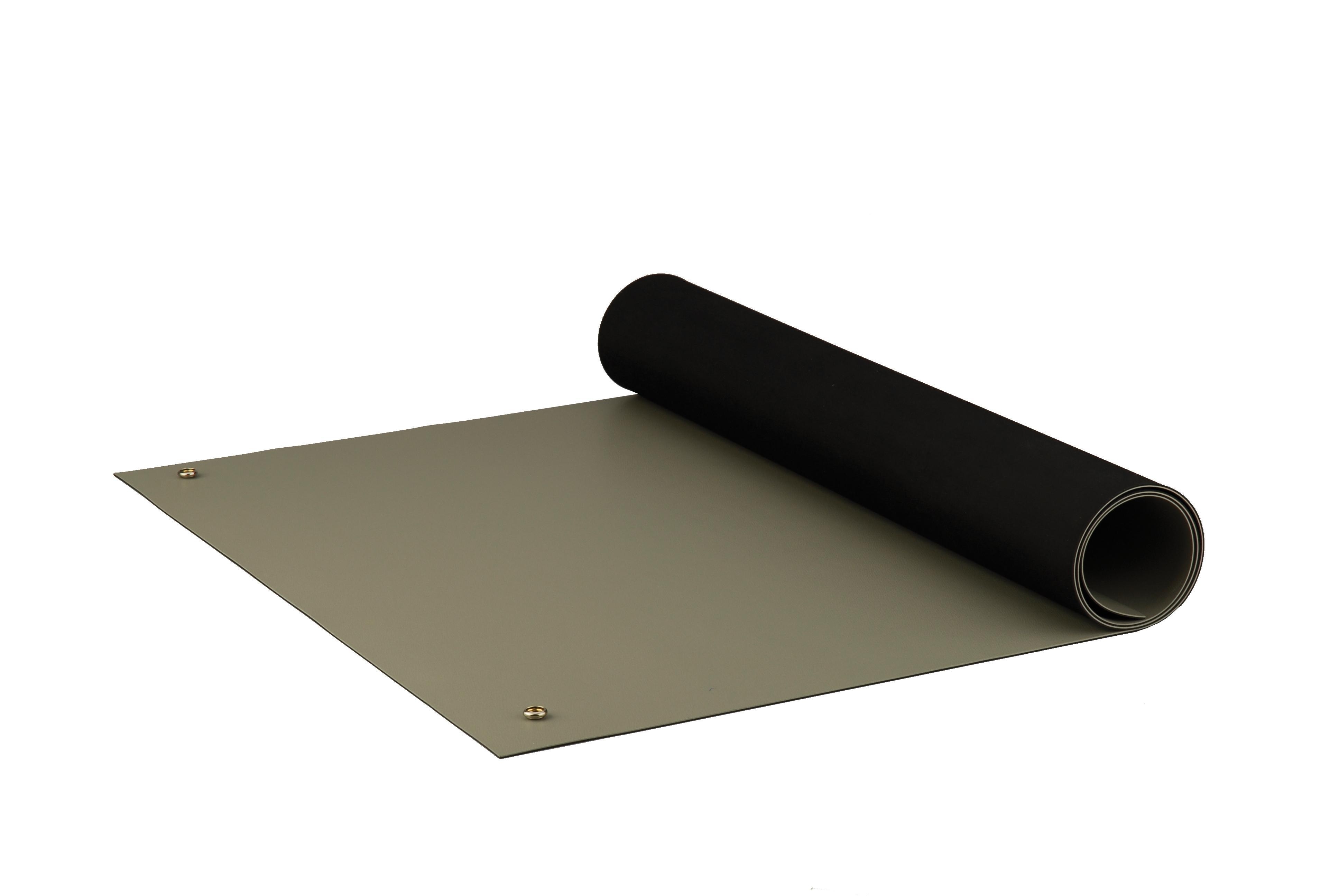

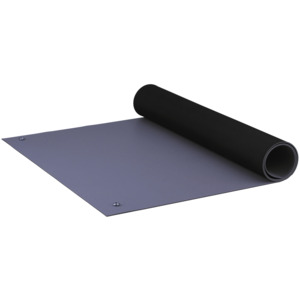

Acl Staticide Dualmat Static Dissipative Work Surface Mat, 30In - 8385DGYR3040

Top side resistance measures 106 – 108 ohms Bottom side resistance measures less than 5x10e5 ohms Electricals are warranted for the lifetime of the mat Compliant to ANSI / ESDA Two layers; conductive bottom, dissipative top Static decay of .05 seconds Embossed surface Low outgassing; low VOC UV additives provide color stability Pre-cut mats include two 10mm female snaps Custom cut sizes available Dualmat is a 2-ply chemically cross-linked rubber material that is inherently dissipative on the top side and conductive on the bottom side. The material will not exudate, outgas, or lose its electrical properties. The soft textured surface offers comfortable protection against static discharge, parts slippage, and damage from UV lights. The durable material is resistant against solder, heat, and most common solvents. Using no vinyl monomers or DOP, the Dualmat ensures conformity to personal and environmental safety standards. Fully compliant to REACH, Dualmat does not use candidates on the SvHC in its manufacture. Thickness: 2 Length - Metric: 1 hazardous: false Length - Imperial: 40 Product Range: Dualmat Series Mat Features: Dissipative Width - Metric: 760 usEccn: Unknown Width - Imperial: 30 Ground Terminal Type: No Grounding Hardware Included Mat Colour: Grey Ground Terminals: Snap Mat Type: 2 Layer Dissipative Mat Roll Length: 30 distributorStatus: INDEPENDENT External Width: 30 Mat Material: Rubber, Vinyl SVHC: No SVHC (17-Jan-2022)

Dualmatâ„ is a heavy duty ESD-safe rubber material designed for use on tables and grounded work bench surfaces. Dissipative on the colored side and conductive on the back side, the design makes it ideal for use with constant monitors. Embossed finish reduces glare, Resistance is 10â to 10⸠ohms. Electricals warranted for the lifetime of the mat. These dual layer, bulk roll mats are supplied in 40 foot lengths. They are available in 24", 30", 36", and 48" widths. Dualmatsâ„ are low outgassing and low VOC, making them ideal for use in cleanrooms and other controlled environments. Additionally, they are UV protected so the color will not fade. Compliant to ANSI/ESD S20.20 and RoHS.
